FortiGate 70F Rugged Next-Generation Firewall

Fortinet
Next-Generation Firewall (NGFW)
FGR-70F

Rugged variant of the FortiGate 70F designed for industrial and OT environments. Features IP40-rated casing, dual power inputs, serial ports, and SFP connectivity for harsh operating conditions.

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation
Office Installation
Enterprise Setup
Technical Support

Installation Services for FortiGate 70F Rugged Next-Generation Firewall

Our expert team provides comprehensive installation services for this product across all environments

Home Installation
Professional installation services for residential environments, ensuring optimal performance for your home network.
Office Installation
Complete office network installation with advanced configuration, security, and performance optimization for business environments.
Enterprise Installation
Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.
Technical Support
Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

The FortiGate 70F Rugged (FGR-70F) is a specialized variant of the FortiGate 70F designed for industrial and operational technology (OT) environments. It maintains all the high-performance security and SD-WAN capabilities of the standard 70F while adding enhanced durability and connectivity options for harsh operating conditions. Built on the same SOC4 architecture with ARMv8 multi-core CPU and FortiASIC NP6XLITE network processor, the FGR-70F delivers the same impressive performance metrics while offering IP40-rated protection against dust and moisture. The rugged design includes dual power inputs for redundancy, serial ports for legacy device connectivity, and SFP slots for fiber connectivity. Perfect for manufacturing facilities, power plants, transportation systems, and other industrial environments where standard IT equipment may not survive. The FGR-70F ensures reliable network security and SD-WAN functionality even in challenging conditions. Available in Kuwait with expert installation, configuration, and ongoing support services. Trusted by businesses across the Middle East for reliable technology solutions.

Specifications

RAM:~3.7 GB
MTBF:High reliability for industrial environments
SD-WAN:Secure SD-WAN with application-aware routing and overlay performance optimization
Weight:~1.01 kg (2.23 lb)
SSL/TLS:Deep SSL Inspection including TLS 1.3
Storage:~3.7 GB eMMC + micro-SD support
DMZ Ports:1x GE RJ45
LAN Ports:7x GE RJ45
Processor:ARMv8 multi-core CPU + FortiASIC NP6XLITE
SFP Ports:Available for fiber connectivity
WAN Ports:2x GE RJ45
Dimensions:38.5 × 216 × 160 mm (1.5 × 8.5 × 6.3 in)
Management:Fortinet Security Fabric, Zero-touch provisioning, FortiManager, FortiCloud
Form Factor:Rugged, compact desktop
Power Input:Dual power inputs for redundancy
Total Ports:10x GE RJ45 + SFP + Serial
Architecture:SOC4 (SD-WAN ASIC + SPU accelerator)
Firewall PPS:~9 Mpps
Serial Ports:Available for legacy device connectivity
IPS Throughput:Up to 1.4 Gbps
NGFW Throughput:Up to 1 Gbps
Storage Humidity:10% to 90% non-condensing
Power Consumption:~17-18 W
Protection Rating:IP40-rated casing
Security Features:FortiGuard AI/ML-powered Security Services, IPS, Antivirus, Web/App Control, Sandboxing, URL Filtering, DLP
FortiToken Support:Up to 500 tokens
HA Modes Available:Active-Active, Active-Passive, Clustering
SSL-VPN Throughput:~900 Mbps
FortiSwitch Support:Up to 24 switches
New TCP Sessions/sec:~35,000
Operating Temperature:Extended range for industrial use
Concurrent TCP Sessions:~700,000
Virtual Domains (VDOMs):Up to 10
Firewall Policy Capacity:~5,000 policies
CAPWAP Throughput (HTTP 64K):~8 Gbps
Max Concurrent SSL-VPN Users:~200 (tunnel mode)
SSL Inspection CPS & Sessions:~400 CPS, ~55,000 sessions
Firewall Latency (64-byte UDP):~3.3 μs
Client-to-Gateway IPSec Tunnels:500
IPsec VPN Throughput (512-byte):~6.5 Gbps
SSL Inspection (VPN) Throughput:~6.5 Gbps
FortiAP Support (Total / Tunnel):Up to 64 / 32 devices
Gateway-to-Gateway IPSec Tunnels:200
App Control Throughput (HTTP 64K):~1.8 Gbps
Firewall Throughput (64-byte UDP):~6 Gbps
Threat Protection (UTM) Throughput:Up to 800 Mbps
Firewall Throughput (1518-byte UDP):~10 Gbps
SSL Inspection Throughput (HTTPS avg):~630 Mbps

Key Features

Next-Generation Firewall (NGFW)

Rugged IP40-rated design

Dual power inputs for redundancy

SFP connectivity for fiber

Serial ports for legacy devices

Micro-SD storage support

Secure SD-WAN with application-aware routing

FortiGuard AI/ML-powered security services

Deep SSL Inspection including TLS 1.3

Integrated IPS (Intrusion Prevention System)

Anti-malware protection

Application Control (AVC)

Web Filtering and URL Filtering

Sandboxing capabilities

Data Loss Prevention (DLP)

Overlay performance optimization

Fortinet Security Fabric Integration

Zero-touch provisioning

Cloud management via FortiCloud

Centralized management via FortiManager

Industrial-grade reliability

Extended operating temperature range

SOC4 architecture with SPU acceleration

Low latency and high throughput

Cost-effective performance for OT environments

Related Products

Other products with professional installation services

Fortinet

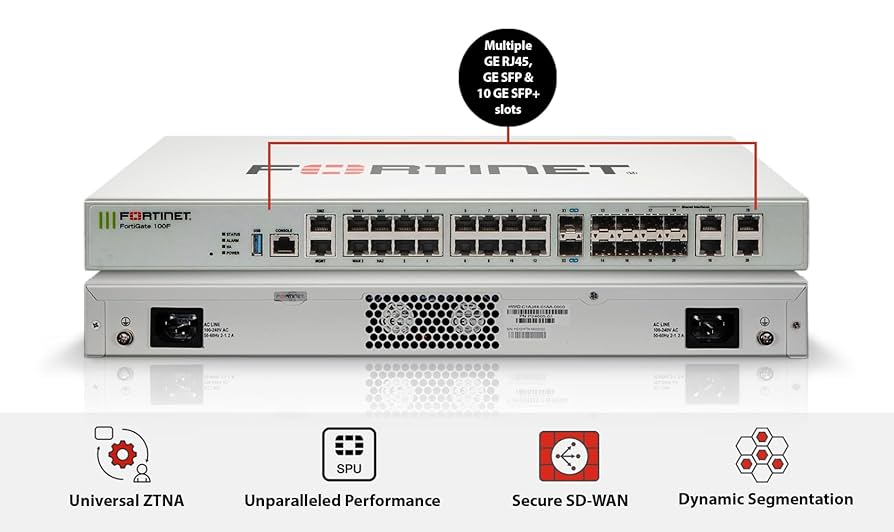

FortiGate 100F Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet
FortiGate 101F Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet

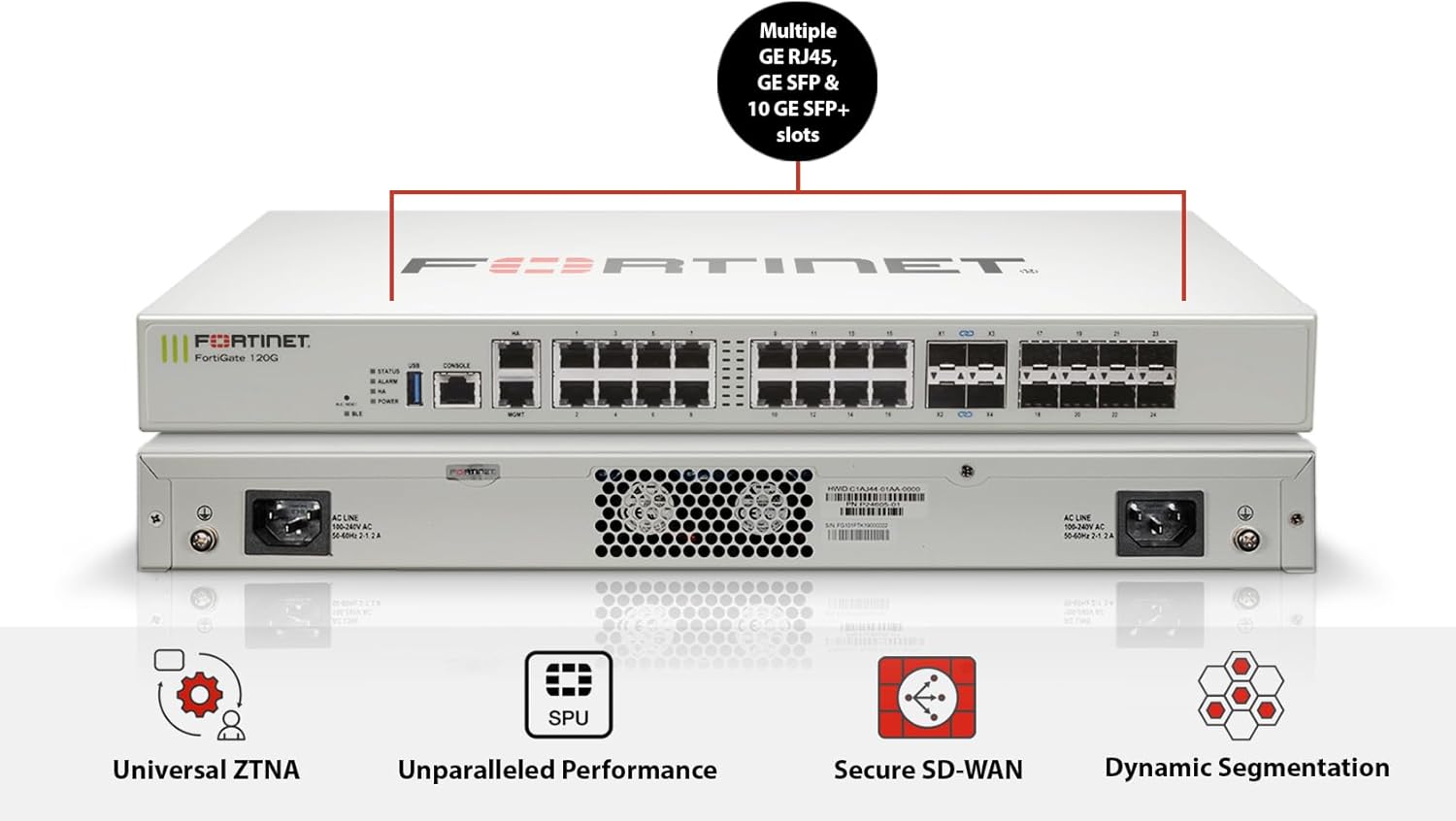

FortiGate 120G Next-Generation Firewall
SKU:

✅ Installation Service Available

Fortinet

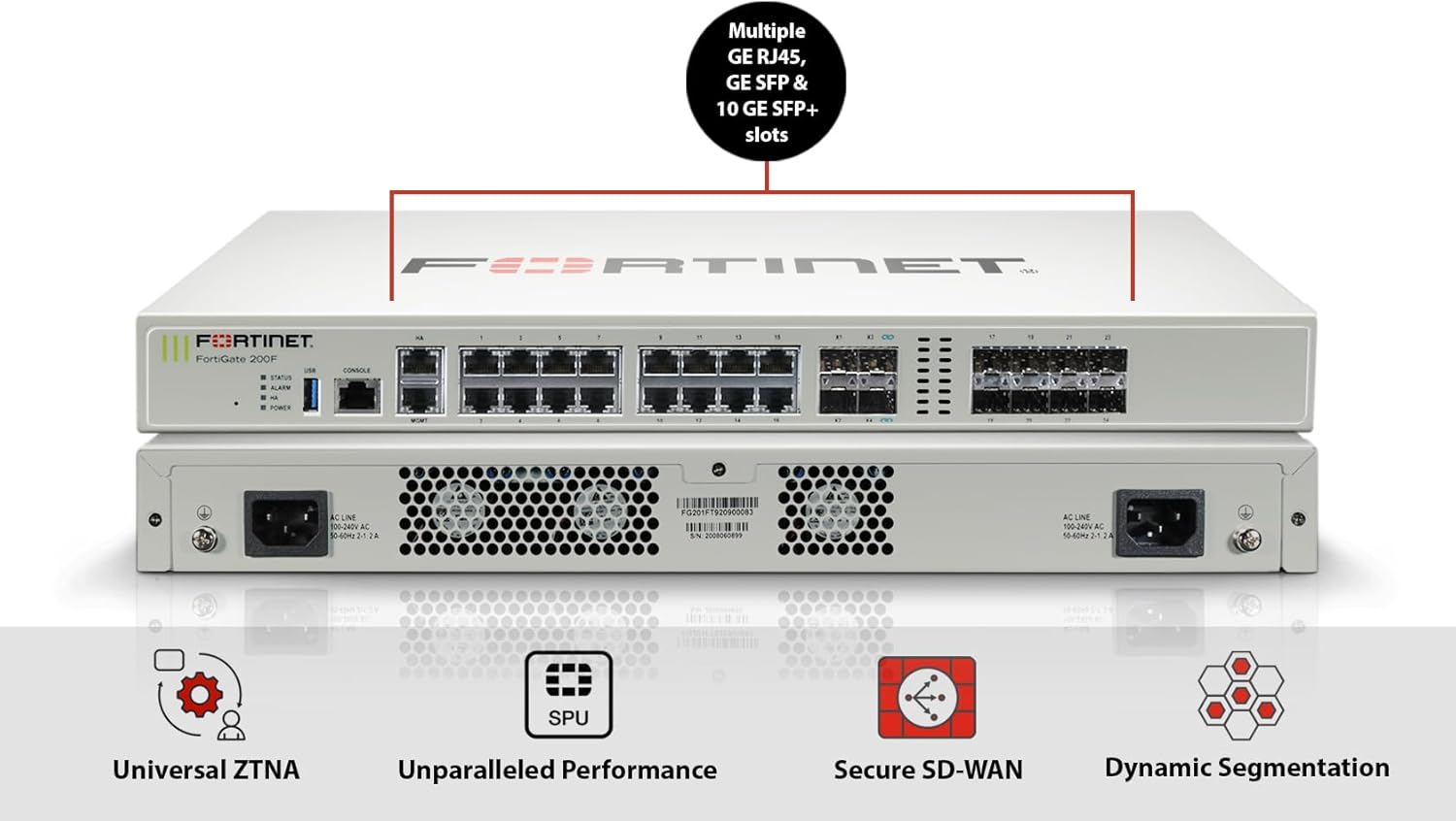

FortiGate 200F Next-Generation Firewall
