PNM-9084QZ1

Name: PNM-9084QZ1
Brand: Hanwha Vision
SKU: PNM-9084QZ1
Availability: InStock
Rating: 4.3 (10 reviews)

1 / 4

Hanwha Vision

Hanwha Dome Network Cameras

PNM-9084QZ1

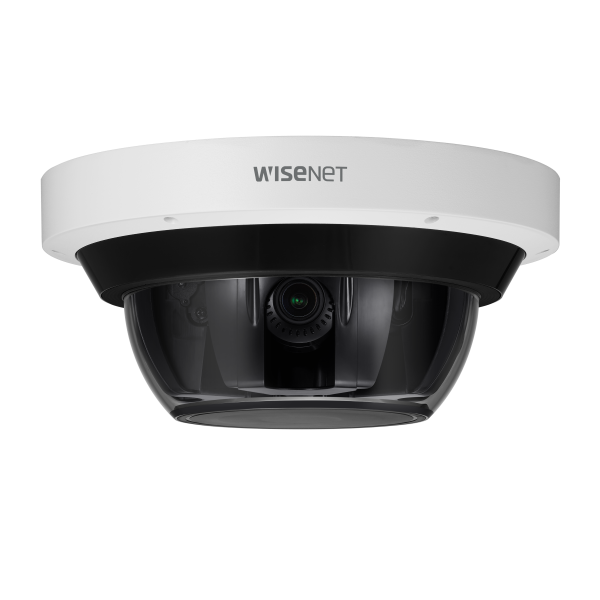

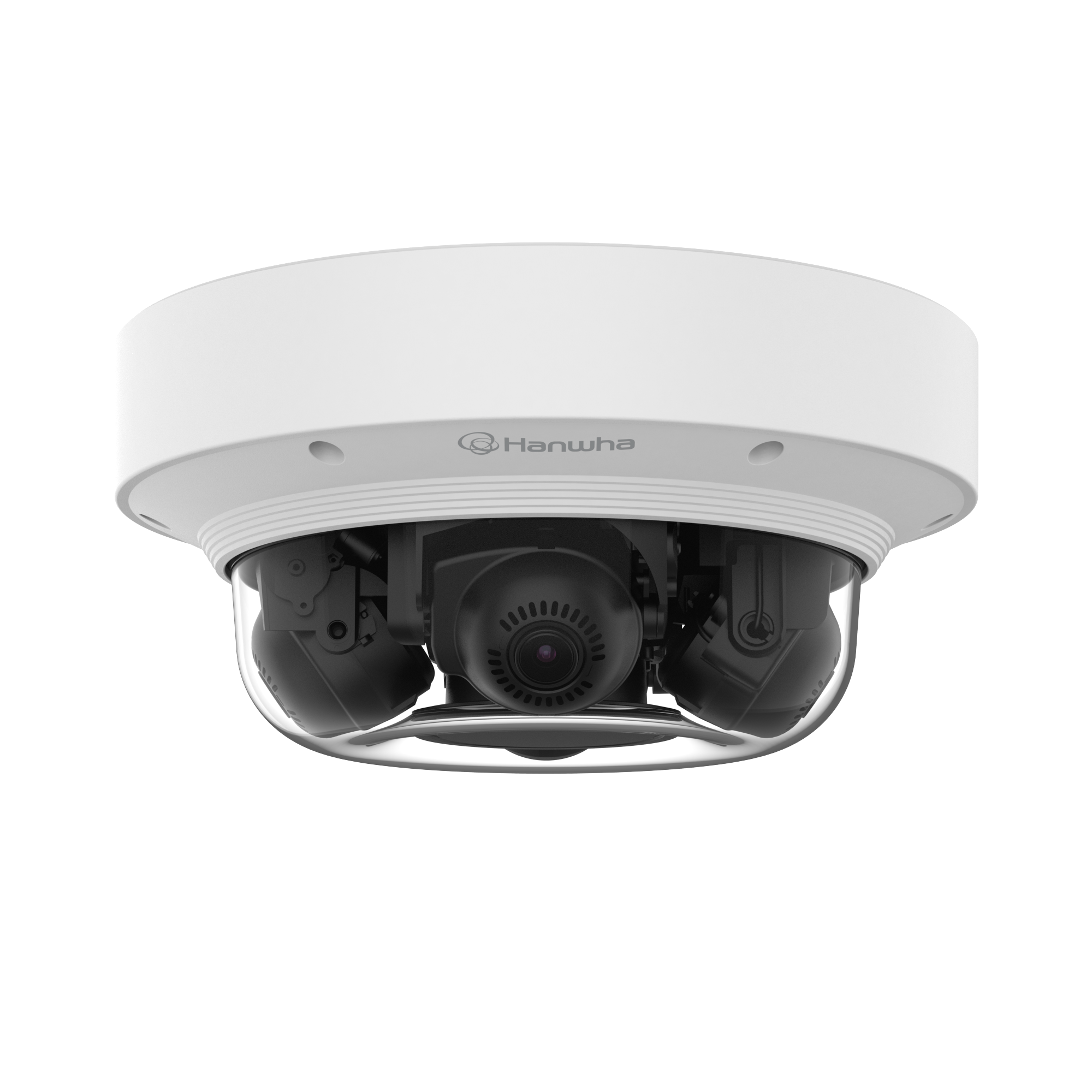

8MP Outdoor 4-Sensor PTRZ Network Dome Camera offering 4 x 2MP sensors at 60 fps, varifocal lenses, and comprehensive coverage.

Specifications 1 DataSheet_PNM-9084QZ1_181706

4.3(10 reviews)

Contact for pricing

CCTV System Not Working Properly for Hanwha Vision PNM-9084QZ1 8MP 4-Sensor PTRZ Network Dome Camera?

CCTV systems often fail due to improper installation and configuration. Our surveillance experts ensure every camera works perfectly with reliable recording and remote access. We specialize in Hanwha Vision PNM-9084QZ1 8MP 4-Sensor PTRZ Network Dome Camera installation and configuration.

Professional camera positioning and mounting

Proper PoE power and network setup

Recording system configuration and testing

Mobile app setup for remote monitoring

Night vision and motion detection optimization

خدمات التركيب لـ PNM-9084QZ1

يقدم فريقنا الخبير خدمات تركيب شاملة لهذا المنتج في جميع البيئات

تركيب منزلي

خدمات تركيب احترافية للبيئات السكنية، تضمن الأداء الأمثل لشبكتك المنزلية.

تركيب مكتبي

تركيب شامل لشبكة المكتب مع إعداد متقدم، أمان، وتحسين الأداء لبيئات الأعمال.

تركيب مؤسسي

تركيب متقدم على مستوى المؤسسة مع توافر عالي، قابلية التوسع، والتكامل مع البنية التحتية الموجودة.

الدعم الفني

مساعدة فنية متخصصة، صيانة، وخدمات مراقبة لضمان الأداء الأمثل المستمر.

وصف المنتج

Specifications 1 DataSheet_PNM-9084QZ1_181706 Download VideoImaging Device1/2.8" CMOS x 4CH Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240Max. FramerateH.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)NETDNonePixel SizeNoneMin. IlluminationColor: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)Video OutNoneVideo Transmission DistanceNoneLensFocal Length (Zoom Ratio)3~6mm(2x) motorized varifocalMax. Aperture RatioF2.2(Wide)-F3.1(Tele)Angular Field of ViewH: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)Min. Object Distance0.5m(1.64ft)Focus ControlSimple focusLens TypeFixed irisMount TypeNoneOptional LensNonePan / Tilt / RotatePan / Tilt / Rotate RangeRemote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚Pan RangeNonePan SpeedNoneTilt RangeNoneTilt SpeedNoneRotate RangeNoneSequenceNonePreset AccuracyNoneOperationalCamera TitleDisplayed up to 85 charactersDirection IndicatorNoneDay & NightAuto(ICR)Backlight CompensationBLC, HLC, WDR, SSDRWide Dynamic Range120dBDigital Noise ReductionSSNRⅤDigital Image StabilizationSupportDefogSupportMotion Detection8ea, 8point polygonal zonesPrivacy Masking32ea, 4point polygonal zones - Color: Grey, Green, Red, Blue, Black, White - MosaicGain ControlLow / Middle / HighWhite BalanceATW / AWC / Manual / Indoor / OutdoorLDCSupportElectronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)Digital PTZNoneVideo RotationFlip, MirrorAnalyticsDefocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detectionBusiness IntelligenceNoneSerial InterfaceNoneAlarm I/OInput 1ea / Output 1eaA...

المواصفات

LDC:Support

NETD:None

Defog:Support

Memory:5GB RAM, 1280MB Flash

Backbox:None

Audio In:Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm

Ethernet:Metal shielded RJ-45(10/100/1000BASE-T)

Protocol:IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP

RAL Code:RAL9003

Sequence:None

Alarm I/O:Input 1ea / Output 1ea

Audio Out:Line out, Max.output level: 1Vrms

Lens Type:Fixed iris

Pan Range:None

Pan Speed:None

Streaming:Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)

Video Out:None

Additional:None

Mount Type:None

Pixel Size:None

Resolution:1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240

Tilt Range:None

Tilt Speed:None

Web Viewer:None

Day & Night:Auto(ICR)

Digital PTZ:None

Smart Codec:Manual(5ea area), WiseStreamⅡ

Camera Title:Displayed up to 85 characters

Edge Storage:Micro SD/SDHC/SDXC 4slot 256GB(each CH)

Gain Control:Low / Middle / High

Power module:None

Rotate Range:None

Auto Tracking:None

Certification:IP66, IK10, NEMA4X

Focus Control:Simple focus

Input Voltage:HPoE

Optional Lens:None

Water Removal:None

White Balance:ATW / AWC / Manual / Indoor / Outdoor

Alarm Triggers:Analytics, Network disconnect, Alarm input

Color Palettes:None

Imaging Device:1/2.8" CMOS x 4CH

Max. Framerate:H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)

Video Rotation:Flip, Mirror

Bitrate Control:H.264/H.265: CBR or VBR MJPEG: VBR

Preset Accuracy:None

Privacy Masking:32ea, 4point polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic

Coaxial Protocol:None

Color / Material:White / Aluminum

Motion Detection:8ea, 8point polygonal zones

Serial Interface:None

Skin cover(Dome):None

Audio Compression:G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz

Min. Illumination:Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)

Power Consumption:Max. 33W, Typical 20W

Video Compression:H.265/H.264: Main/Baseline/High, MJPEG

Weather cap(Dome):None

IR Viewable Length:None

Wide Dynamic Range:120dB

Direction Indicator:None

Hanging mount(Dome):SBP-276HMW

Max. Aperture Ratio:F2.2(Wide)-F3.1(Tele)

Detect (25PPM/ 8PPF):Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)

Min. Object Distance:0.5m(1.64ft)

Temperature accuracy:None

Angular Field of View:H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)

Business Intelligence:None

Temperature detection:None

Backlight Compensation:BLC, HLC, WDR, SSDR

Observe (63PPM/ 19PPF):Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)

Digital Noise Reduction:SSNRⅤ

Electronic Shutter Speed:Minimum / Maximum / Anti flicker (2~1/12,000sec)

Identify (250PPM/ 76PPF):Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)

Temperature detect range:None

Video Quality Adjustment:H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control

Focal Length (Zoom Ratio):3~6mm(2x) motorized varifocal

IR Illuminator (Optional):None

Pan / Tilt / Rotate Range:Remote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚

Recognize (125PPM/ 38PPF):Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)

Product dimensions / weight:Ø251x116.5mm / 3Kg

Video Transmission Distance:None

Storage Temperature / Humidity:-50°C~+60°C(-58°F~+140°F) / Less than 90% RH

Operating Temperature / Humidity:-40°C~+55°C(-40°F~+131°F) / Less than 90% RH *Start up should be above at -35˚C

Application Programming Interface:ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform

Compatible Conduit hole / Gangbox:3/4"

المميزات الرئيسية

Markets Airports Banking and Finance Cannabis Casinos and Gaming Corrections Data Centers Education Energy

Banking and Finance

Casinos and Gaming

Corrections

Data Centers

Markets Government Healthcare Intelligent Transportation Systems (ITS) Logistics Manufacturing Retail Sports & Leisure

Intelligent Transportation Systems (ITS)

Manufacturing

Sports & Leisure

Security Cameras Series Form Factor Video Surveillance Technology

Form Factor

Video Surveillance Technology

Camera Technologies Optical & Imaging Technologies Intelligent Video & Audio Technologies Hardware Technologies License Plate Recognition

Optical & Imaging Technologies

Intelligent Video & Audio Technologies

Hardware Technologies

License Plate Recognition

Cloud Portal OnCAFE OnCloud HealthPro SightMind DesignPro

VMS Solutions Wisenet SKY Wisenet WAVE VMS

Wisenet SKY

منتجات ذات صلة

منتجات أخرى مع خدمات تركيب احترافية

Hanwha Vision

Hanwha Dome Network Cameras

Hanwha Vision PND-A9081RV 4K AI IR Dome Camera

4K AI IR Dome Camera with advanced AI analytics, modular structure for easy installation, and support for multiple codecs.

رمز المنتج:PND-A9081RV

Hanwha Dome Network Cameras

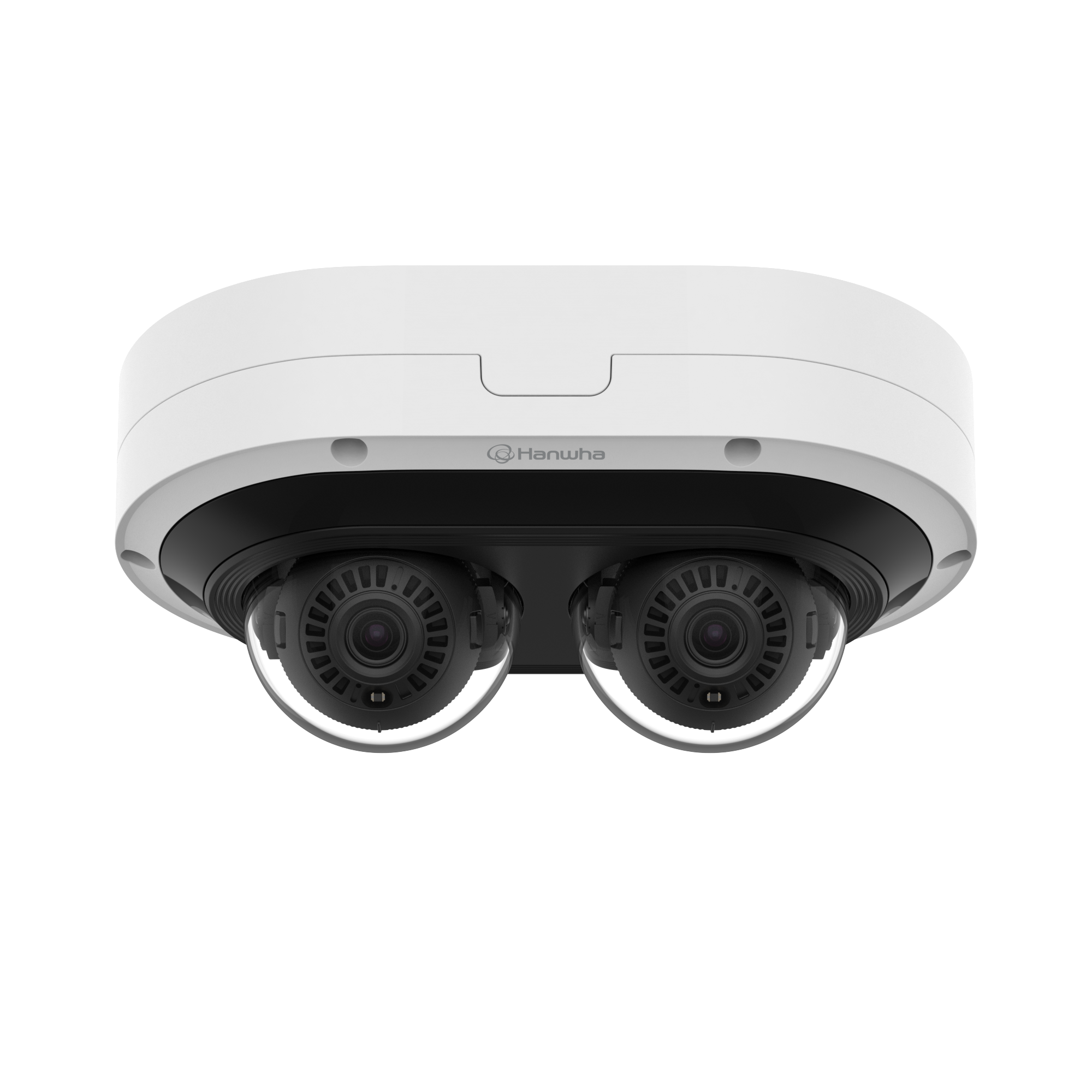

Hanwha Vision PNM-12082RVD 6MP Multidirectional Network Dome Camera

6MP 2-Sensor Outdoor Multidirectional Network Dome Camera with IR LEDs for night vision up to 82 feet and motorized varifocal lenses.

رمز المنتج:PNM-12082RVD

Hanwha Dome Network Cameras

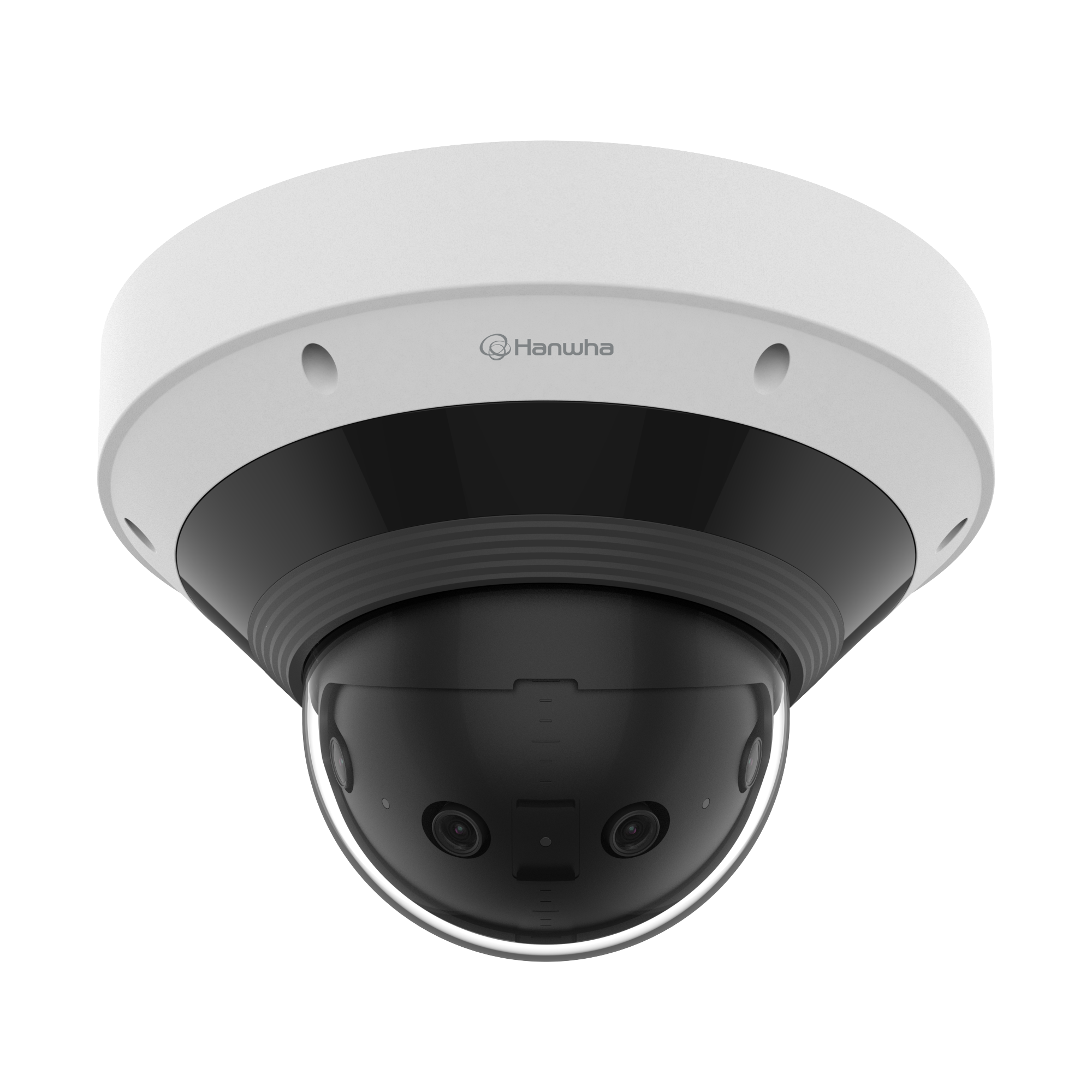

Hanwha Vision PNM-9031RV 15MP Panoramic Network Dome Camera

15MP Outdoor Multi-Sensor Panoramic Network Dome Camera with 4 x 5MP sensors, IR LEDs for night vision up to 66 feet, and fixed lenses.

رمز المنتج:PNM-9031RV

Hanwha Dome Network Cameras

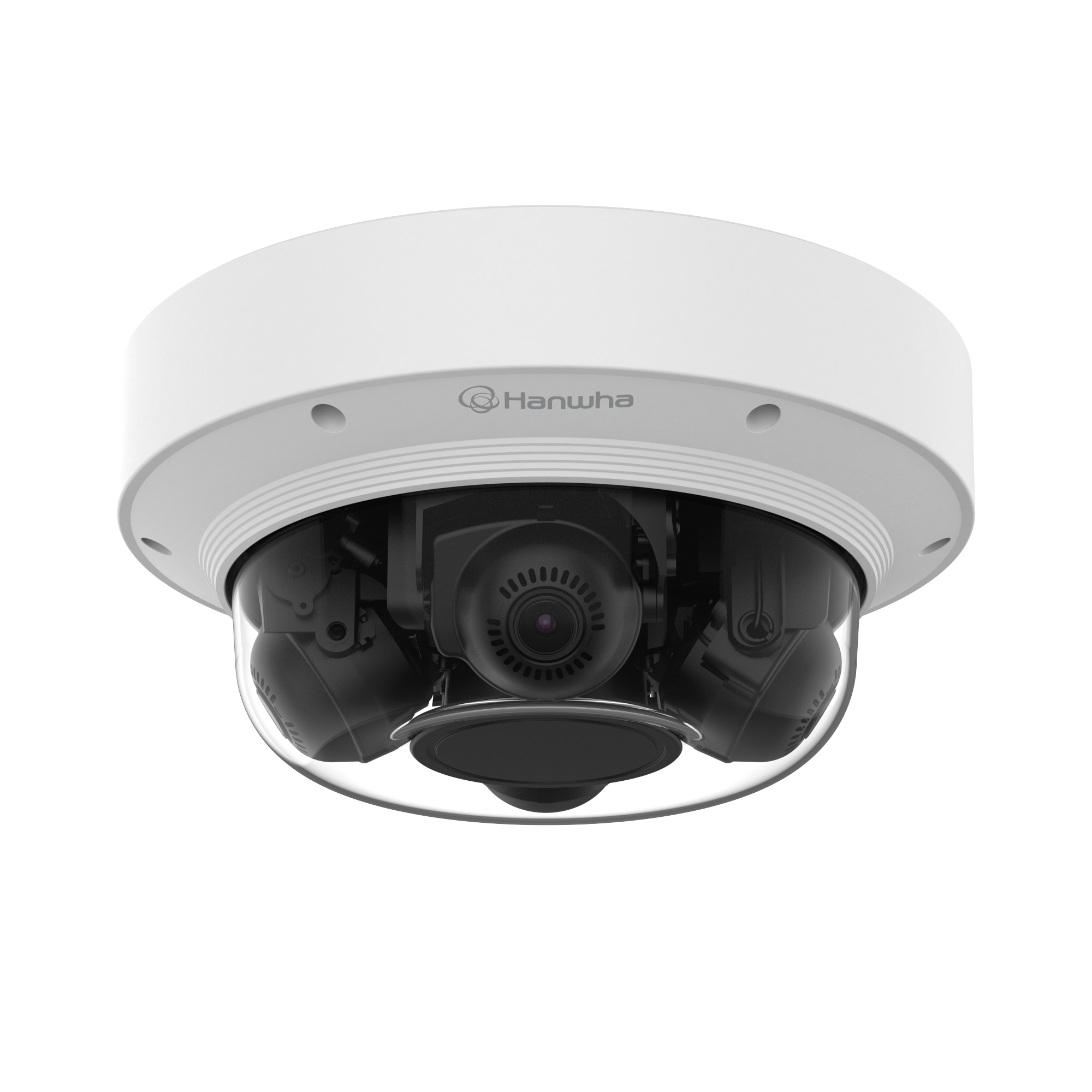

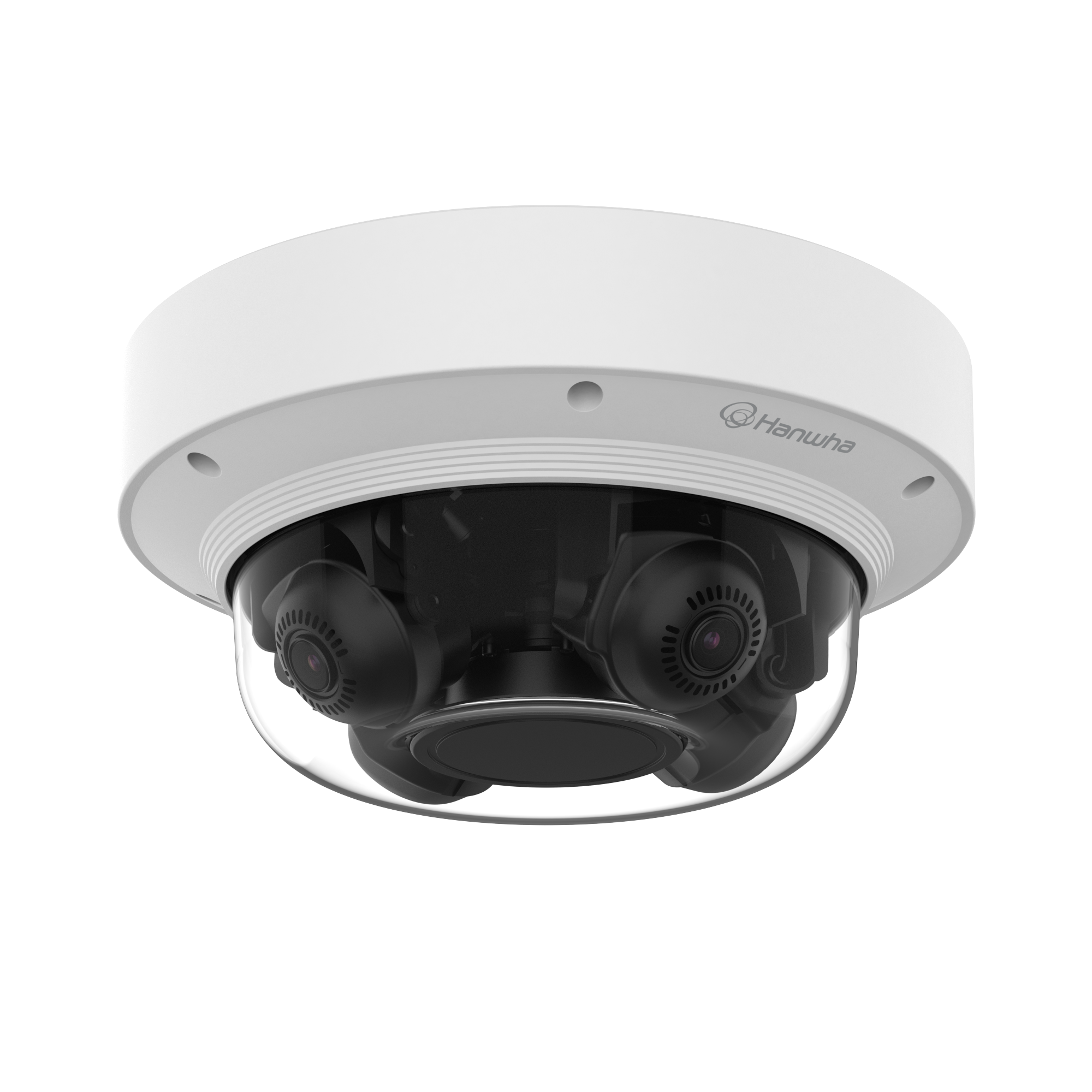

Hanwha Vision PNM-9085RQZ1 20MP 4-Sensor PTRZ Network Dome Camera

20MP Outdoor 4-Sensor PTRZ Network Dome Camera with 4 x 5MP sensors at 30 fps, IR LEDs for night vision up to 98 feet, and varifocal lenses.

رمز المنتج:PNM-9085RQZ1

Hanwha Dome Network Cameras

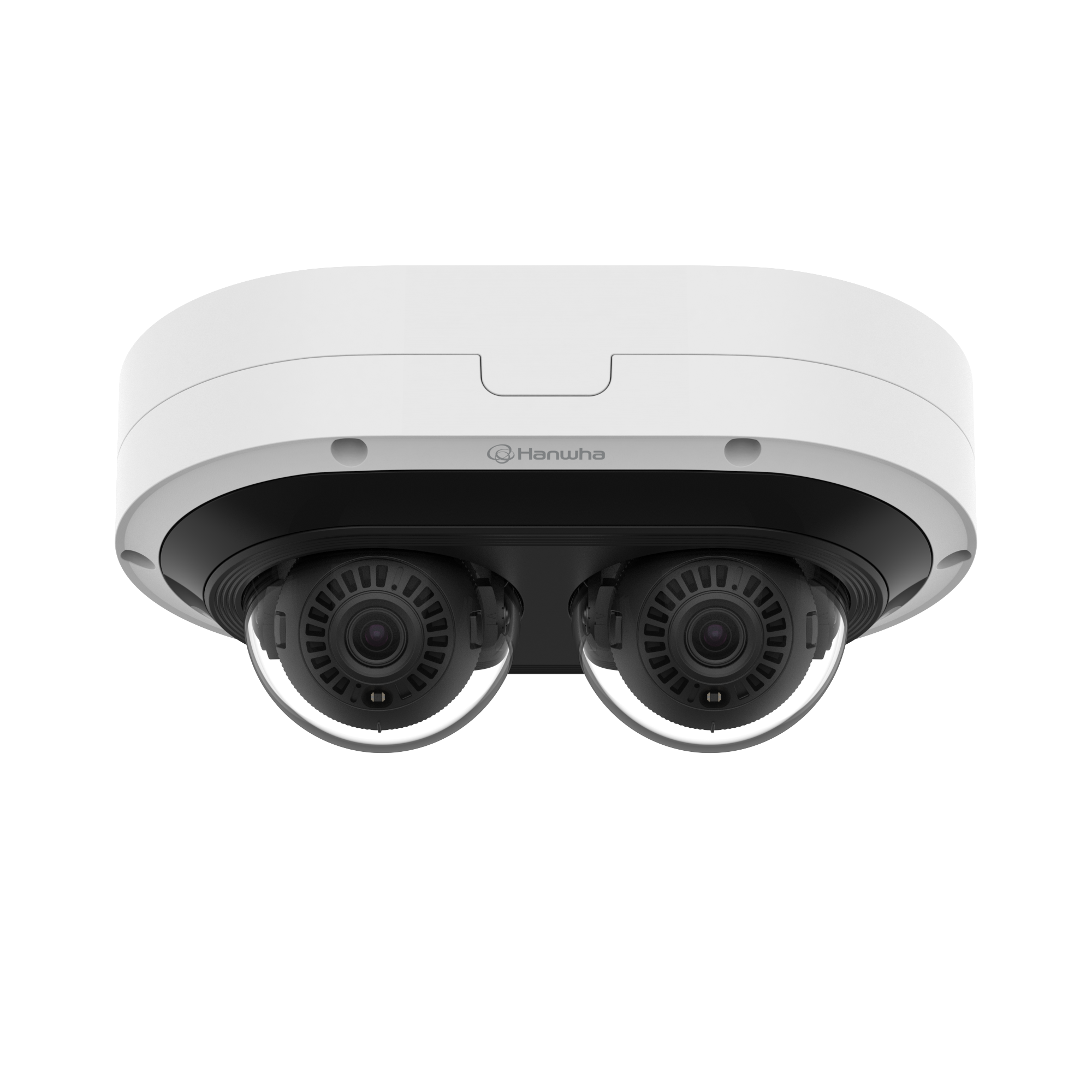

Hanwha Vision PNM-C12083RVD 6MP Multidirectional Network Dome Camera

6MP 2-Sensor Outdoor Multidirectional Network Dome Camera with IR LEDs for night vision up to 82 feet and motorized varifocal lenses.

رمز المنتج:PNM-C12083RVD

Contact for pricing

التركيب متاح

Hanwha Vision

Hanwha Dome Network Cameras

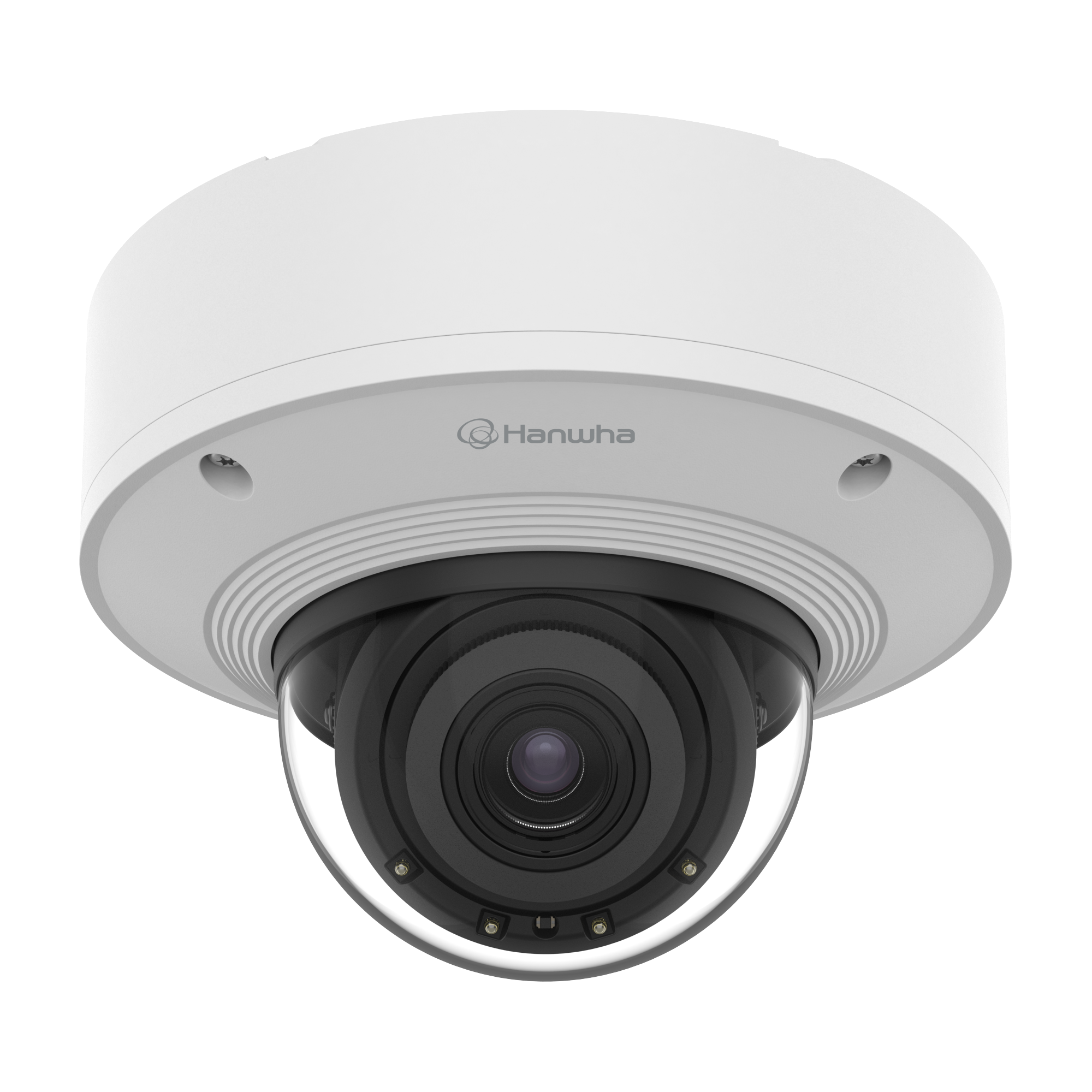

Hanwha Vision PNV-A9081R 4K UHD Network Dome Camera

4K UHD Outdoor Network Dome Camera with 2.2x zoom, night vision up to 98 feet, and motorized varifocal lens.

رمز المنتج:PNV-A9081R

Hanwha Dome Network Cameras

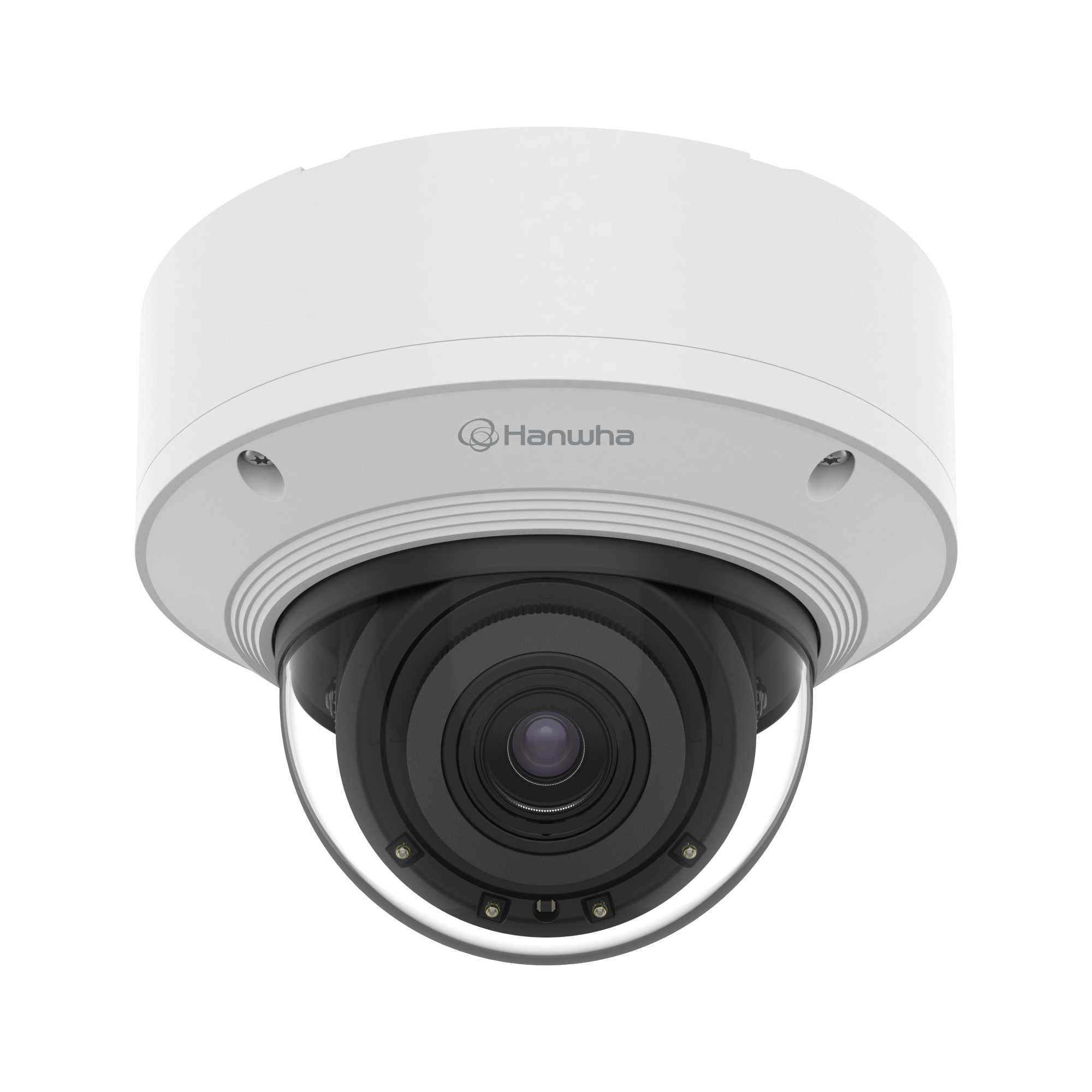

Hanwha Vision PNV-A9081RLP 4K IR Vandal Dome AI Camera
