Hanwha Vision

Hanwha Dome Network Cameras

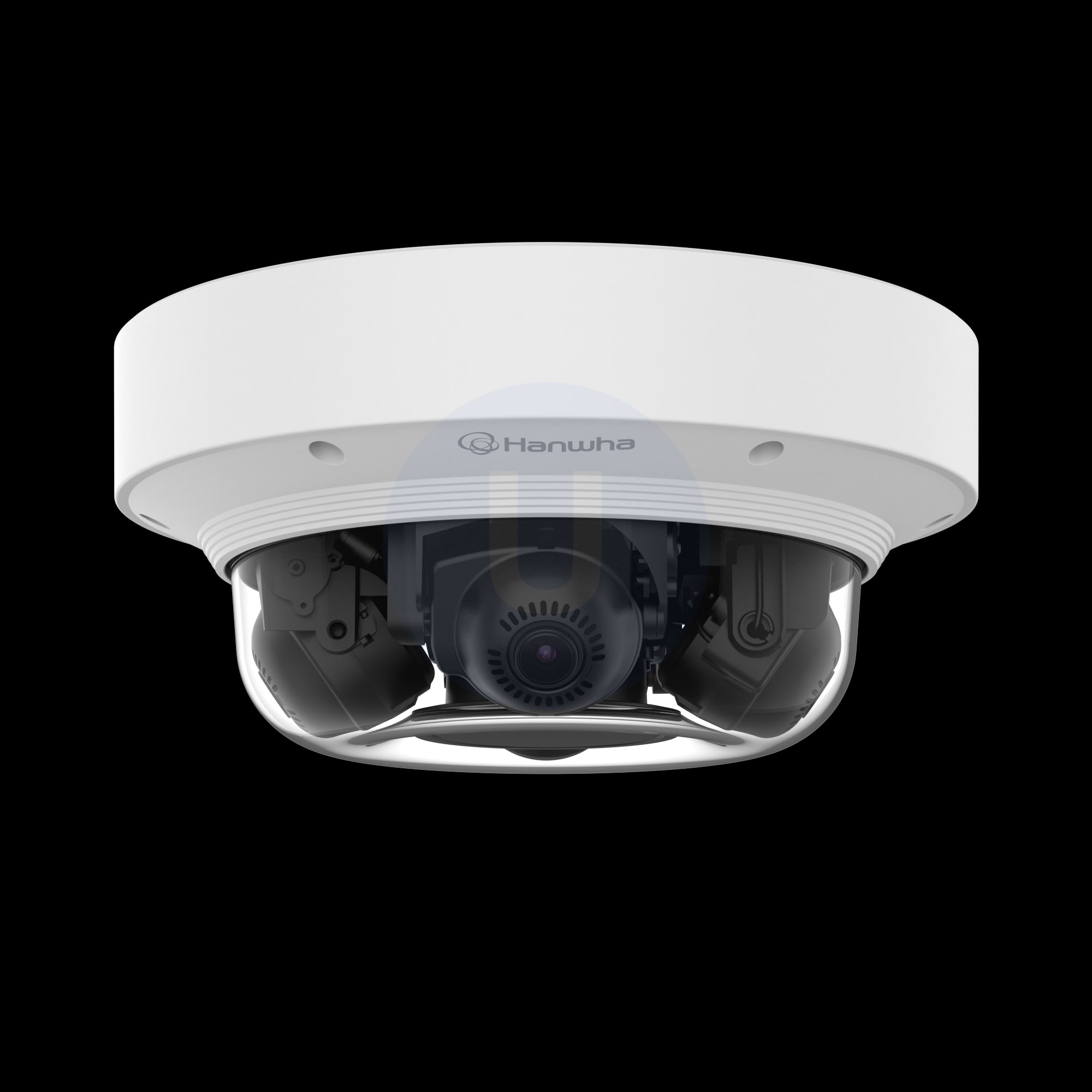

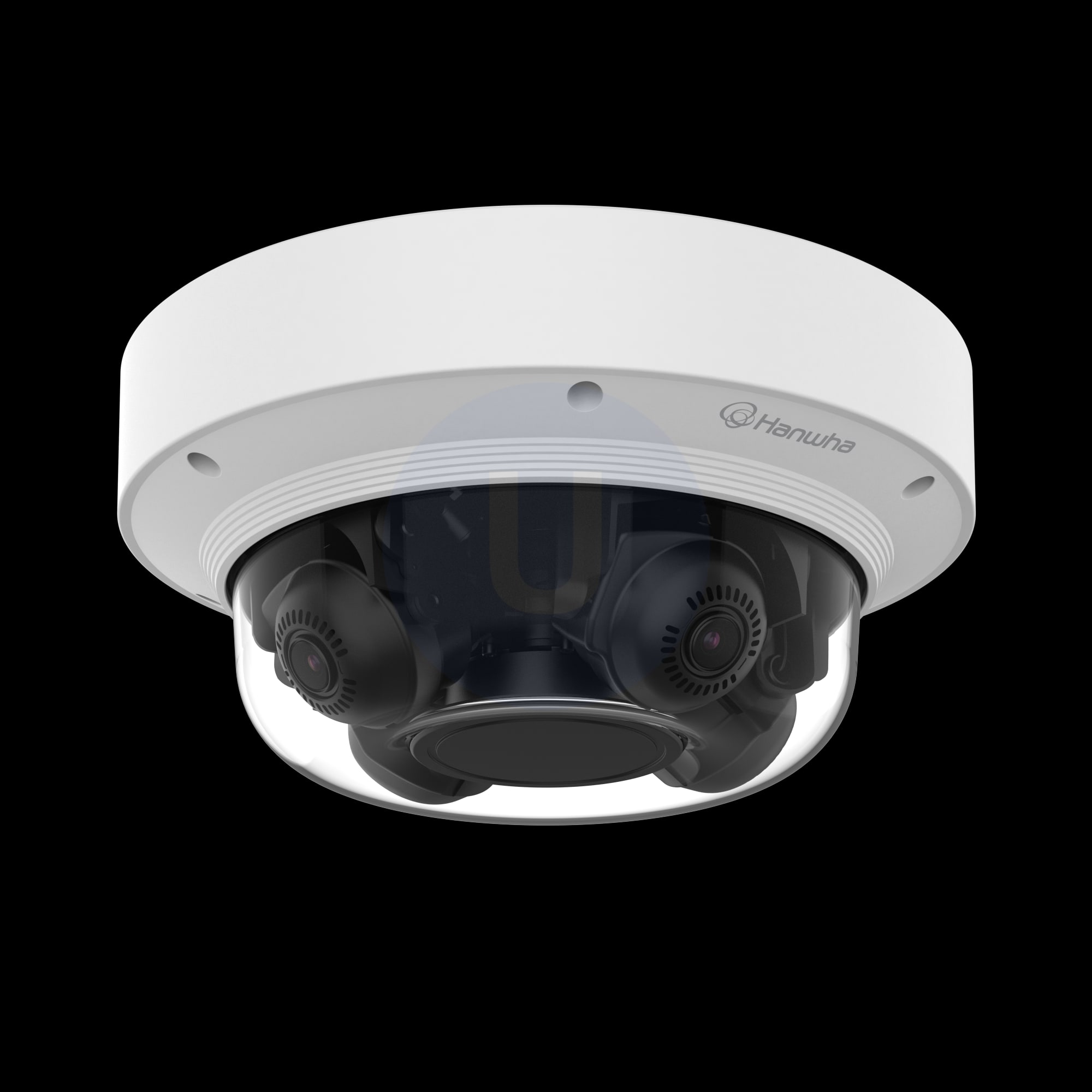

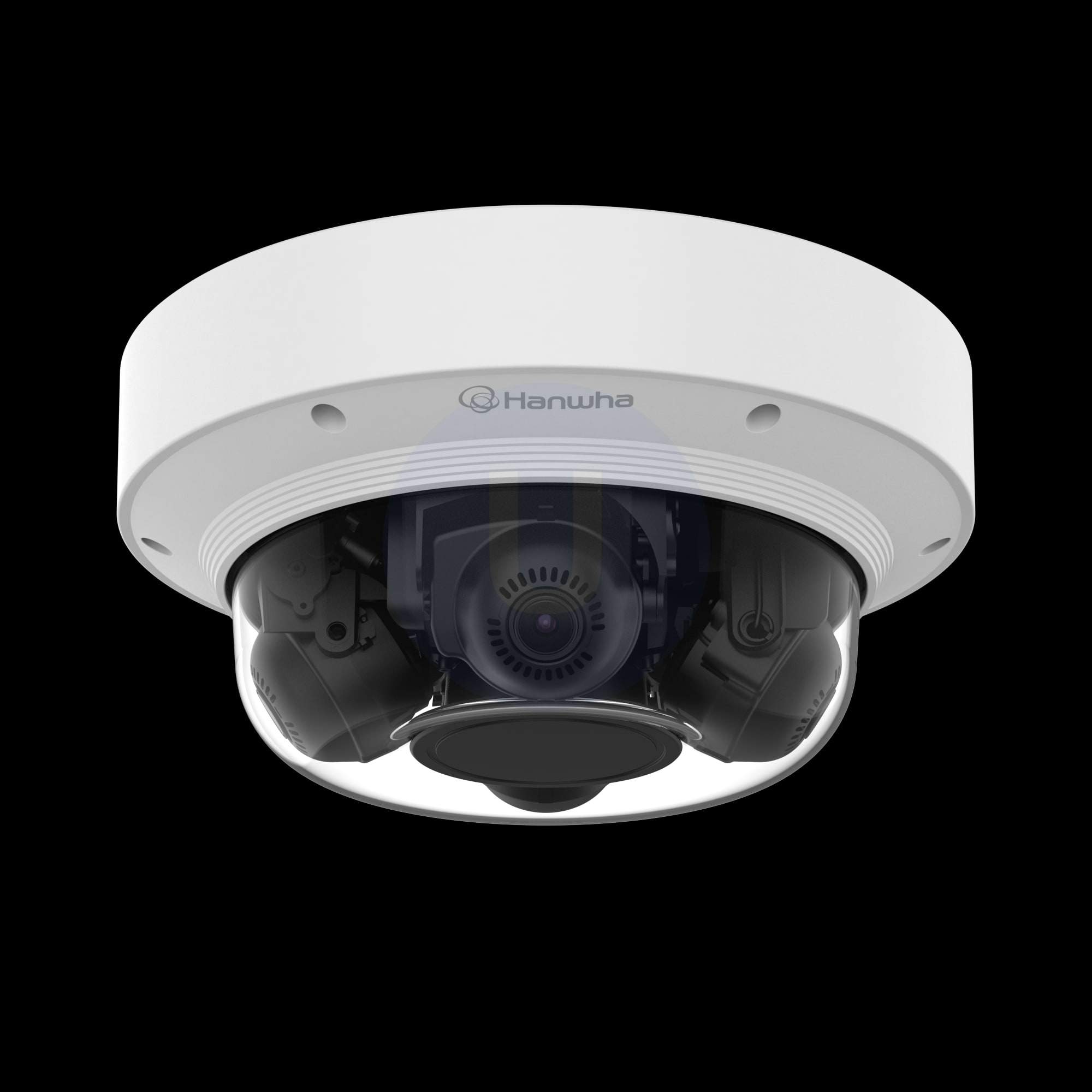

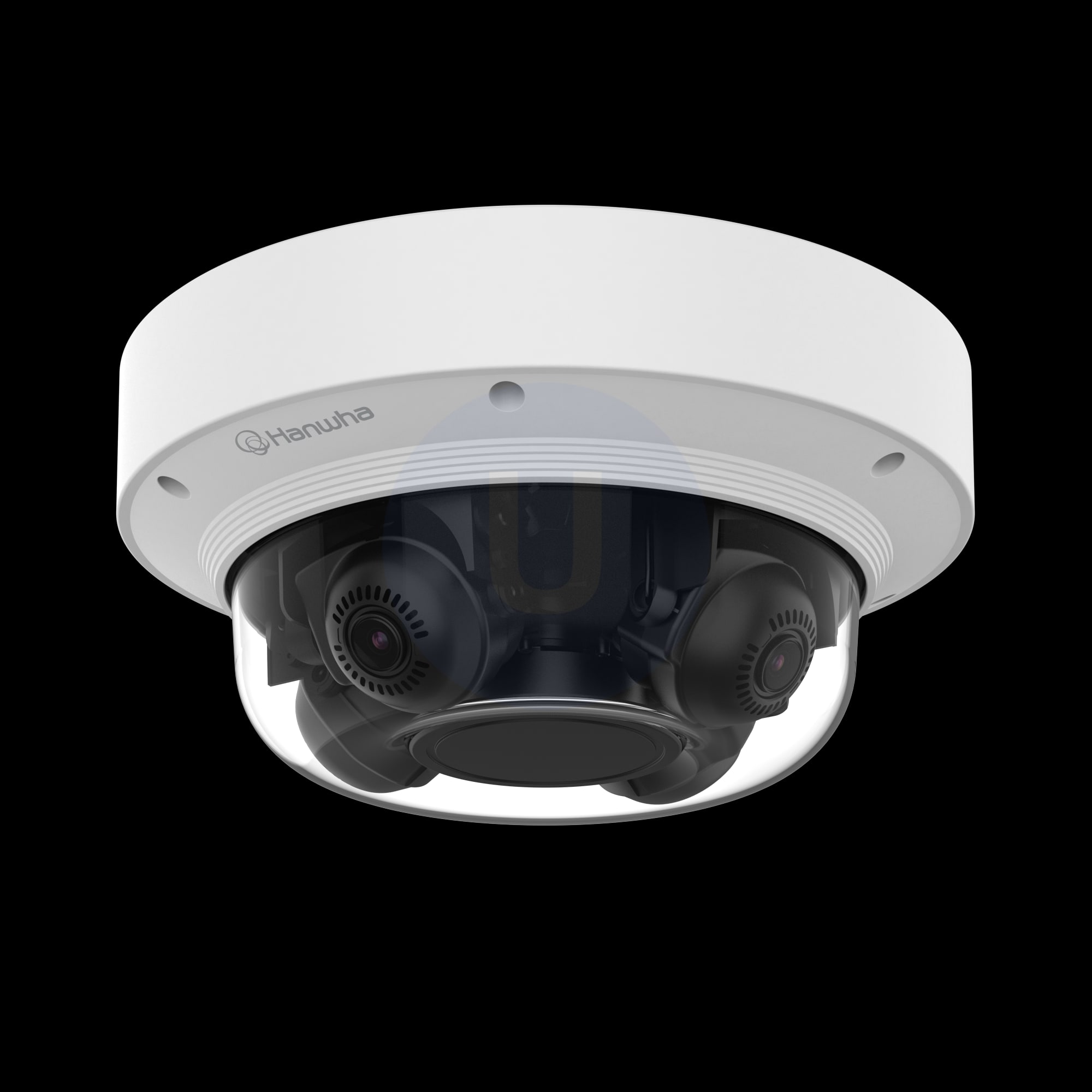

PNM-9084QZ1

1 / 4

8MP Outdoor 4-Sensor PTRZ Network Dome Camera offering 4 x 2MP sensors at 60 fps, varifocal lenses, and comprehensive coverage.

Contact for Availability

Get a custom quote from our team

Ask for price Call

Need it installed? Get a site quote

Pay with

Installation, warranty & supportIP camera installation: 5–15 KWD per point · 1-year hardware warranty

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

Manufacturer warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Who This Is Built For

Features

Markets Airports Banking and Finance Cannabis Casinos and Gaming Corrections Data Centers Education EnergyBanking and FinanceCasinos and GamingCorrectionsData CentersMarkets Government Healthcare Intelligent Transportation Systems (ITS) Logistics Manufacturing Retail Sports & LeisureIntelligent Transportation Systems (ITS)ManufacturingSports & LeisureSecurity Cameras Series Form Factor Video Surveillance TechnologyForm FactorVideo Surveillance TechnologyCamera Technologies Optical & Imaging Technologies Intelligent Video & Audio Technologies Hardware Technologies License Plate RecognitionOptical & Imaging TechnologiesIntelligent Video & Audio TechnologiesHardware TechnologiesLicense Plate RecognitionCloud Portal OnCAFE OnCloud HealthPro SightMind DesignProVMS Solutions Wisenet SKY Wisenet WAVE VMSWisenet SKY

Technical Specifications

LDC: Support
NETD: None
Defog: Support
Memory: 5GB RAM, 1280MB Flash
Backbox: None
Audio In: Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Ethernet: Metal shielded RJ-45(10/100/1000BASE-T)
Protocol: IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
RAL Code: RAL9003
Sequence: None
Alarm I/O: Input 1ea / Output 1ea
Audio Out: Line out, Max.output level: 1Vrms
Lens Type: Fixed iris
Pan Range: None
Pan Speed: None
Streaming: Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles)
Video Out: None
Additional: None
Mount Type: None
Pixel Size: None
Resolution: 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Tilt Range: None
Tilt Speed: None
Web Viewer: None
Day & Night: Auto(ICR)
Digital PTZ: None
Smart Codec: Manual(5ea area), WiseStreamⅡ
Camera Title: Displayed up to 85 characters
Edge Storage: Micro SD/SDHC/SDXC 4slot 256GB(each CH)
Gain Control: Low / Middle / High
Power Module: None
Rotate Range: None
Auto Tracking: None
Certification: IP66, IK10, NEMA4X
Focus Control: Simple focus
Input Voltage: HPoE
Optional Lens: None
Water Removal: None
White Balance: ATW / AWC / Manual / Indoor / Outdoor
Alarm Triggers: Analytics, Network disconnect, Alarm input
Color Palettes: None
Imaging Device: 1/2.8" CMOS x 4CH
Max. Framerate: H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Video Rotation: Flip, Mirror
Bitrate Control: H.264/H.265: CBR or VBR MJPEG: VBR
Preset Accuracy: None
Privacy Masking: 32ea, 4point polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic
Coaxial Protocol: None
Color / Material: White / Aluminum
Motion Detection: 8ea, 8point polygonal zones
Serial Interface: None
Skin Cover(Dome): None
Audio Compression: G.711 u-law /G.726 G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz
Min. Illumination: Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec)
Power Consumption: Max. 33W, Typical 20W
Video Compression: H.265/H.264: Main/Baseline/High, MJPEG
Weather Cap(Dome): None
IR Viewable Length: None
Wide Dynamic Range: 120dB
Direction Indicator: None
Hanging Mount(Dome): SBP-276HMW
Max. Aperture Ratio: F2.2(Wide)-F3.1(Tele)
Detect (25PPM/ 8PPF): Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft)
Min. Object Distance: 0.5m(1.64ft)
Temperature Accuracy: None
Angular Field Of View: H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele)
Business Intelligence: None
Temperature Detection: None
Backlight Compensation: BLC, HLC, WDR, SSDR
Observe (63PPM/ 19PPF): Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft)
Digital Noise Reduction: SSNRⅤ
Electronic Shutter Speed: Minimum / Maximum / Anti flicker (2~1/12,000sec)
Identify (250PPM/ 76PPF): Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft)
Temperature Detect Range: None
Video Quality Adjustment: H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control
Focal Length (Zoom Ratio): 3~6mm(2x) motorized varifocal
IR Illuminator (Optional): None
Pan / Tilt / Rotate Range: Remote adjustment (Max. 200cycles) 0~360˚ / 0~73˚ / 0~90˚
Recognize (125PPM/ 38PPF): Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft)
Product Dimensions / Weight: Ø251x116.5mm / 3Kg
Video Transmission Distance: None
Storage Temperature / Humidity: -50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Operating Temperature / Humidity: -40°C~+55°C(-40°F~+131°F) / Less than 90% RH *Start up should be above at -35˚C
Application Programming Interface: ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform
Compatible Conduit Hole / Gangbox: 3/4"
