Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

Name: Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point
Brand: Ruijie Reyee
SKU: RG-RAP73HD
Price: 120.00 KWD
Availability: InStock

Ruijie Reeye

Indoor Wi-Fi Access Points

RG-RAP73HD

Next-generation WiFi 7 (802.11be) ceiling-mount access point with tri-radio support, delivering BE19000 speeds and advanced features for high-density indoor environments.

120.00 KWD

خدمة تركيب المنتج متاحة

نقدم خدمات تركيب وإعداد شاملة لهذا المنتج. من التركيبات المنزلية الأساسية إلى الإعدادات المؤسسية المتقدمة، يضمن فريقنا الخبير الأداء الأمثل.

تركيب منزلي

تركيب مكتبي

إعداد مؤسسي

دعم فني

خدمات التركيب لـ Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

يقدم فريقنا الخبير خدمات تركيب شاملة لهذا المنتج في جميع البيئات

تركيب منزلي

خدمات تركيب احترافية للبيئات السكنية، تضمن الأداء الأمثل لشبكتك المنزلية.

تركيب مكتبي

تركيب شامل لشبكة المكتب مع إعداد متقدم، أمان، وتحسين الأداء لبيئات الأعمال.

تركيب مؤسسي

تركيب متقدم على مستوى المؤسسة مع توافر عالي، قابلية التوسع، والتكامل مع البنية التحتية الموجودة.

الدعم الفني

مساعدة فنية متخصصة، صيانة، وخدمات مراقبة لضمان الأداء الأمثل المستمر.

وصف المنتج

The RG-RAP73HD is a tri-radio WiFi 7 (802.11be) ceiling-mount access point (AP) from Reyee / Ruijie, targeting high-density indoor environments (e.g. offices, hotels, campuses). Key value propositions include: - Extremely high aggregate throughput (BE19000 class) - Support for the new 6 GHz band (with 320 MHz channels) - Multi-Link Operation (MLO) support - High client capacity (up to 1,024 clients) - Flexible uplink and deployment (10G, SFP+, PoE) - Integration into Ruijie / Reyee cloud and ecosystem Positioned for medium to large indoor deployments where dense concurrent usage and throughput demands are high.

المواصفات

Weight:≤ 2.0 kg (excluding mounting hardware)

Mounting:Comes with mounting bracket (dimensions ~120 mm × 98 mm × 12 mm)

Security:Supports WPA / WPA2 / WPA3 / SAE, standard enterprise-level WiFi security modes

Dimensions:258 mm × 258 mm × 59.5 mm (without mounting bracket)

Management:Cloud / web / local management via Ruijie / Reyee platform; features like AP Mesh, RF optimization, load balancing, roaming, portal

Antenna Type:Internal PIFA omni antennas

SSID Support:Up to 8 SSIDs

Antenna Gains:2.4 GHz = 4 dBi, 5 GHz = 6 dBi, 6 GHz = 6 dBi

WiFi Standard:IEEE 802.11be (WiFi 7), backward compatible with a/b/g/n/ac/ax

Coverage Range:Recommended radius: 40 m @ 2.4 GHz; 70 m @ 5 GHz/6 GHz. Maximum up to ~100 m

Maximum Speeds:2.4 GHz: ~1,376 Mbps, 5 GHz: ~5,765 Mbps, 6 GHz: ~11,530 Mbps, Aggregate: ~18.67 Gbps

Transmit Power:Country-specific; 2.4 GHz up to 20 dBm (EIRP), 5.150–5.350 GHz 23 dBm, 5.470–5.725 GHz 30 dBm, 5.925–6.425 GHz 23 dBm

Maximum Clients:Up to 1,024 clients (512 on 2.4/5 GHz + 512 on 6 GHz)

Power Consumption:Supports IEEE 802.3at/bt (PoE), up to ~60 W consumption. Also supports DC 48 V / 1.25 A input

Ethernet Interfaces:1 × 10GBase-T RJ45 (PoE capable), 1 × 1GBase-T RJ45, 1 × 10GBase-X SFP+ optical port

Radio Configuration:Tri-radio: 2.4 GHz, 5 GHz, 6 GHz; each 4×4 MIMO

Operating Temperature:0 °C to 40 °C (typical)

Regulatory Compliance:FCC ID and compliance documents available

المميزات الرئيسية

Next-generation WiFi 7 / BE19000 tri-radio operation

Multi-Link Operation (MLO) for improved throughput and latency

High-density support (up to 1,024+ concurrent clients)

Flexible uplink options (10G RJ45, 10G SFP+, 1G RJ45)

PoE-powered deployment (802.3bt support)

Smart features & cloud integration with Ruijie/Reyee ecosystem

Future-proofing with 6 GHz support and advanced features

Enterprise-grade security with WPA3 support

Advanced RF optimization and load balancing

Mesh networking capabilities

Centralized management and monitoring

Real-time analytics and reporting

منتجات ذات صلة

منتجات أخرى مع خدمات تركيب احترافية

Ruijie Reyee

Indoor Wi-Fi Access Points

Ruijie Reyee RG-RAP1260 WiFi 6 Dual-Band Wall-Plate Access Point

Multi-port WiFi 6 (802.11ax) wall-plate access point with AX3000 performance and 5 Gigabit Ethernet ports, designed for comprehensive room connectivity in hotels and offices.

رمز المنتج:RG-RAP1260

Contact for pricing

التركيب متاح

Ruijie Reyee

Indoor Wi-Fi Access Points

Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point

Ultra-thin wall-plate style WiFi 6 (802.11ax) dual-band access point with AX3000 performance, designed for standard 86mm wall boxes in hotels, apartments, and offices.

رمز المنتج:RG-RAP1261

Contact for pricing

التركيب متاح

Ruijie Reyee

Indoor Wi-Fi Access Points

Ruijie Reyee RG-RAP72 WiFi 7 Dual-Band Ceiling Access Point

Entry-level WiFi 7 (802.11be) dual-band ceiling access point with BE3600 performance class, ideal for small offices and environments adopting WiFi 7 without 6 GHz requirements.

Indoor Wi-Fi Access Points

Ruijie Reyee RG-RAP72Pro WiFi 7 Dual-Band Ceiling Access Point

Cost-effective WiFi 7 (802.11be) dual-band ceiling access point with BE5040 performance class, ideal for mid-density environments requiring modern WiFi 7 features without 6 GHz complexity.

رمز المنتج:RG-RAP72Pro

75.00 KWD

التركيب متاح

Ruijie Reeye

Indoor Wi-Fi Access Points

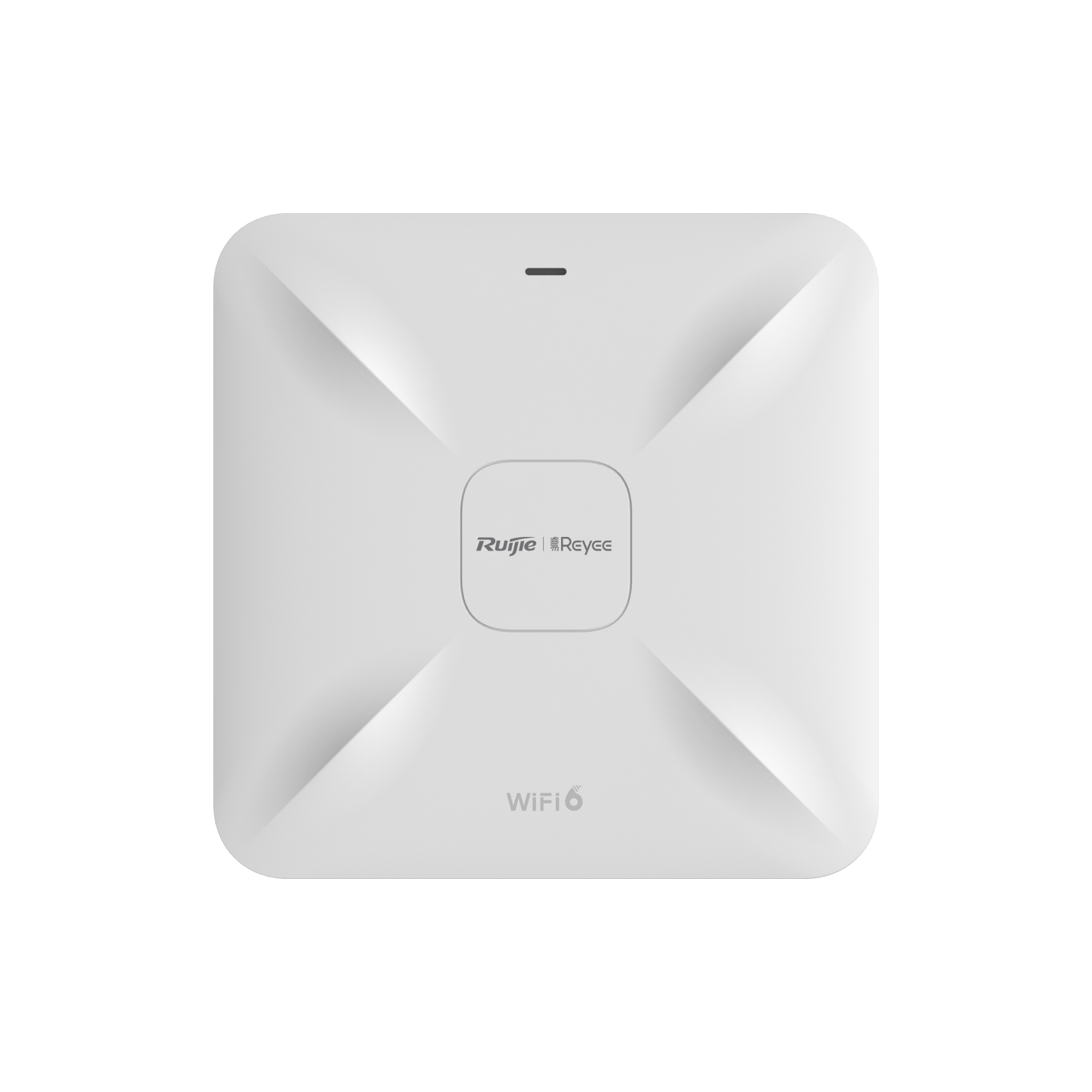

Ruijie Reeye RG-RAP2260 Wi-Fi 6 Access Point
