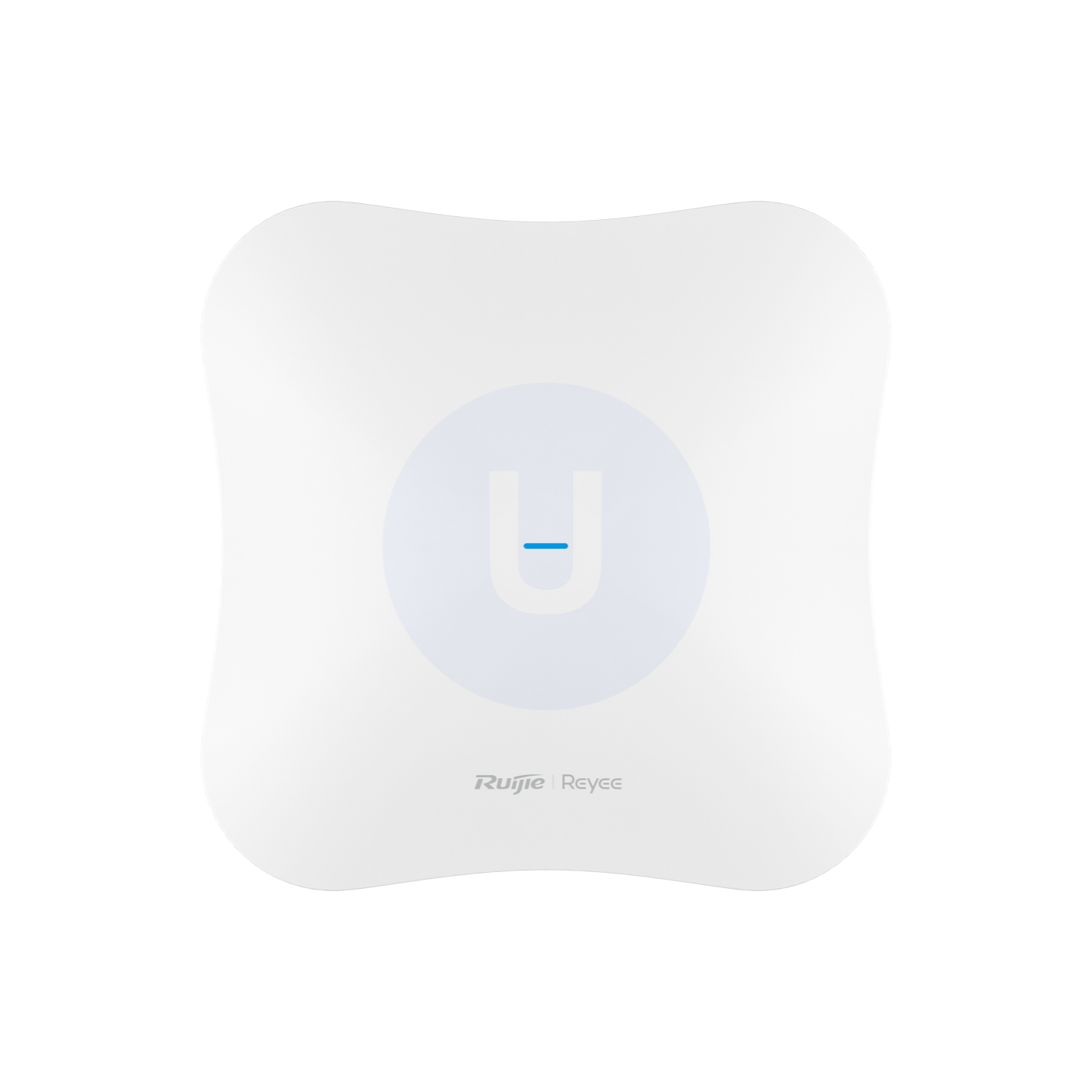

Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

Industrial Switches

Layer 2 Managed Switches

Layer 3 Managed Switches

Wireless Routers

Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

Name: Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point
Brand: Ruijie Reyee
SKU: RG-RAP73HD
Price: 120.00 KWD
Availability: InStock

Ruijie Reeye

Indoor Wi-Fi Access Points

RG-RAP73HD

Next-generation WiFi 7 (802.11be) ceiling-mount access point with tri-radio support, delivering BE19000 speeds and advanced features for high-density indoor environments.

120.00 KWD

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation

Office Installation

Enterprise Setup

Technical Support

Installation Services for Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

Our expert team provides comprehensive installation services for this product across all environments

Home Installation

Professional installation services for residential environments, ensuring optimal performance for your home network.

Office Installation

Complete office network installation with advanced configuration, security, and performance optimization for business environments.

Enterprise Installation

Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.

Technical Support

Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

The RG-RAP73HD is a tri-radio WiFi 7 (802.11be) ceiling-mount access point (AP) from Reyee / Ruijie, targeting high-density indoor environments (e.g. offices, hotels, campuses). Key value propositions include: - Extremely high aggregate throughput (BE19000 class) - Support for the new 6 GHz band (with 320 MHz channels) - Multi-Link Operation (MLO) support - High client capacity (up to 1,024 clients) - Flexible uplink and deployment (10G, SFP+, PoE) - Integration into Ruijie / Reyee cloud and ecosystem Positioned for medium to large indoor deployments where dense concurrent usage and throughput demands are high.

Specifications

Weight:≤ 2.0 kg (excluding mounting hardware)

Mounting:Comes with mounting bracket (dimensions ~120 mm × 98 mm × 12 mm)

Security:Supports WPA / WPA2 / WPA3 / SAE, standard enterprise-level WiFi security modes

Dimensions:258 mm × 258 mm × 59.5 mm (without mounting bracket)

Management:Cloud / web / local management via Ruijie / Reyee platform; features like AP Mesh, RF optimization, load balancing, roaming, portal

Antenna Type:Internal PIFA omni antennas

SSID Support:Up to 8 SSIDs

Antenna Gains:2.4 GHz = 4 dBi, 5 GHz = 6 dBi, 6 GHz = 6 dBi

WiFi Standard:IEEE 802.11be (WiFi 7), backward compatible with a/b/g/n/ac/ax

Coverage Range:Recommended radius: 40 m @ 2.4 GHz; 70 m @ 5 GHz/6 GHz. Maximum up to ~100 m

Maximum Speeds:2.4 GHz: ~1,376 Mbps, 5 GHz: ~5,765 Mbps, 6 GHz: ~11,530 Mbps, Aggregate: ~18.67 Gbps

Transmit Power:Country-specific; 2.4 GHz up to 20 dBm (EIRP), 5.150–5.350 GHz 23 dBm, 5.470–5.725 GHz 30 dBm, 5.925–6.425 GHz 23 dBm

Maximum Clients:Up to 1,024 clients (512 on 2.4/5 GHz + 512 on 6 GHz)

Power Consumption:Supports IEEE 802.3at/bt (PoE), up to ~60 W consumption. Also supports DC 48 V / 1.25 A input

Ethernet Interfaces:1 × 10GBase-T RJ45 (PoE capable), 1 × 1GBase-T RJ45, 1 × 10GBase-X SFP+ optical port

Radio Configuration:Tri-radio: 2.4 GHz, 5 GHz, 6 GHz; each 4×4 MIMO

Operating Temperature:0 °C to 40 °C (typical)

Regulatory Compliance:FCC ID and compliance documents available

Key Features

Next-generation WiFi 7 / BE19000 tri-radio operation

Multi-Link Operation (MLO) for improved throughput and latency

High-density support (up to 1,024+ concurrent clients)

Flexible uplink options (10G RJ45, 10G SFP+, 1G RJ45)

PoE-powered deployment (802.3bt support)

Smart features & cloud integration with Ruijie/Reyee ecosystem

Future-proofing with 6 GHz support and advanced features

Enterprise-grade security with WPA3 support

Advanced RF optimization and load balancing

Mesh networking capabilities

Centralized management and monitoring

Real-time analytics and reporting

Related Products

Other products with professional installation services

Ruijie Reyee RG-RAP1260 WiFi 6 Dual-Band Wall-Plate Access Point

Multi-port WiFi 6 (802.11ax) wall-plate access point with AX3000 performance and 5 Gigabit Ethernet ports, designed for comprehensive room connectivity in hotels and offices.

SKU:RG-RAP1260

Contact for pricing

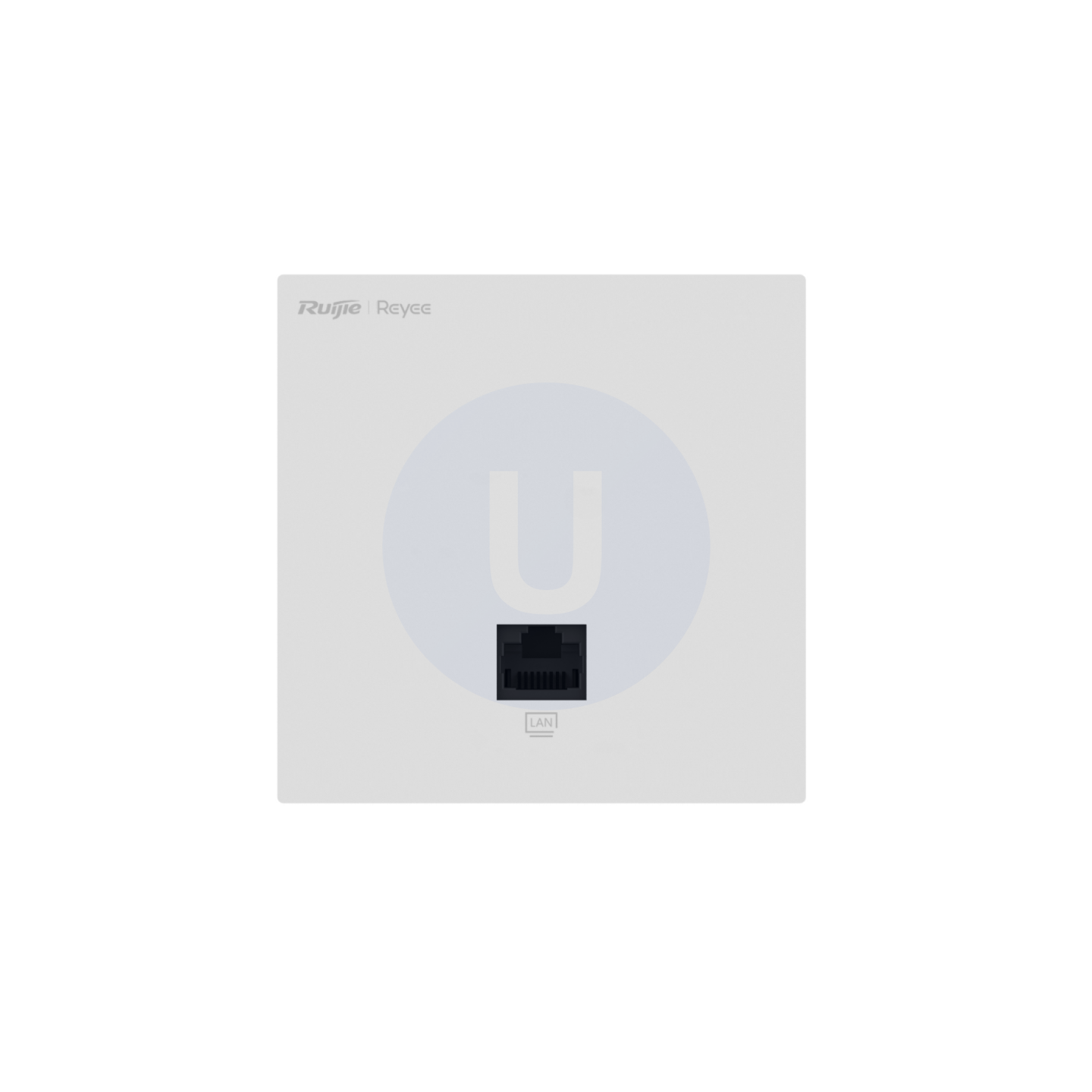

Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point

Ultra-thin wall-plate style WiFi 6 (802.11ax) dual-band access point with AX3000 performance, designed for standard 86mm wall boxes in hotels, apartments, and offices.

SKU:RG-RAP1261

Contact for pricing

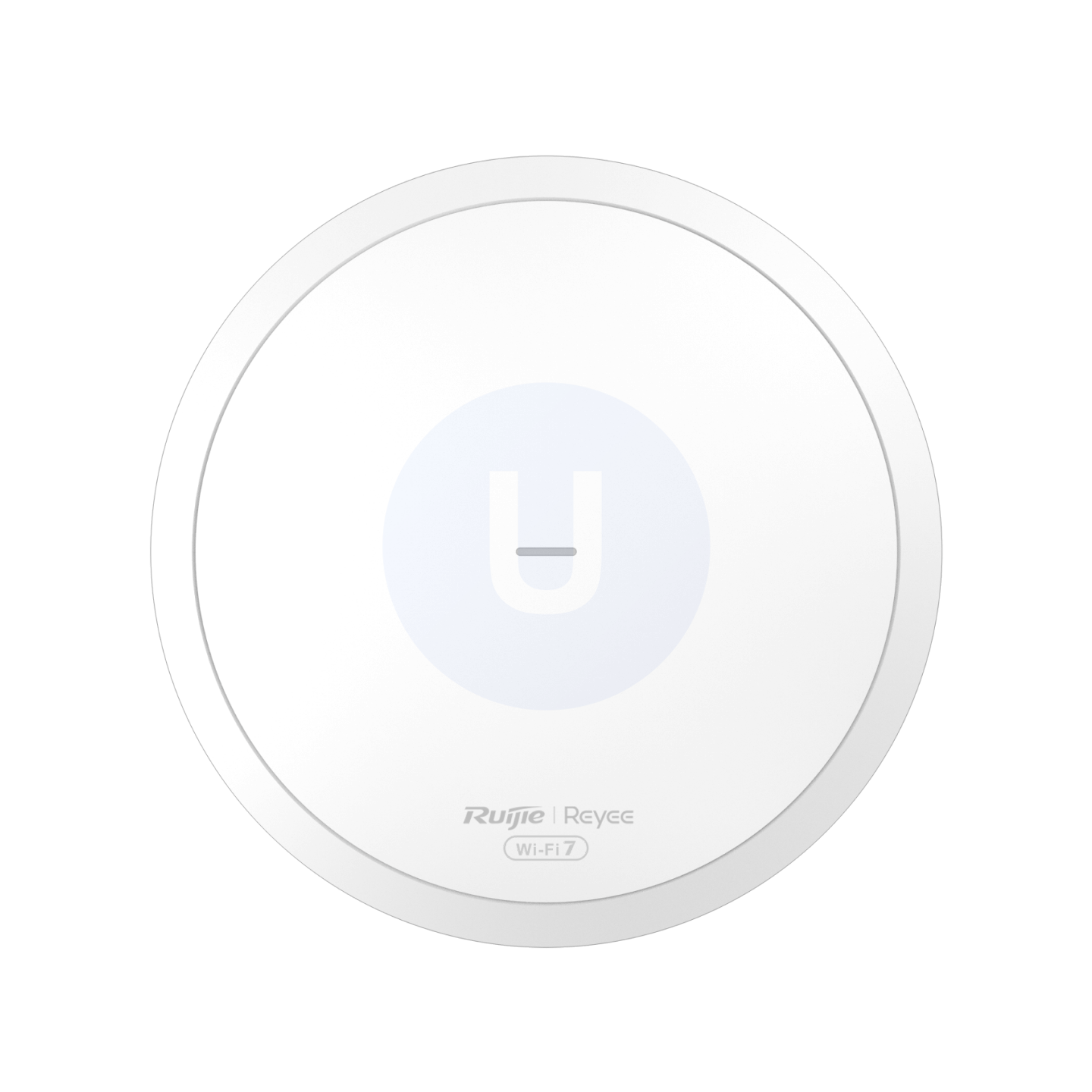

Ruijie Reyee RG-RAP72 WiFi 7 Dual-Band Ceiling Access Point

Entry-level WiFi 7 (802.11be) dual-band ceiling access point with BE3600 performance class, ideal for small offices and environments adopting WiFi 7 without 6 GHz requirements.

SKU:RG-RAP72

Contact for pricing

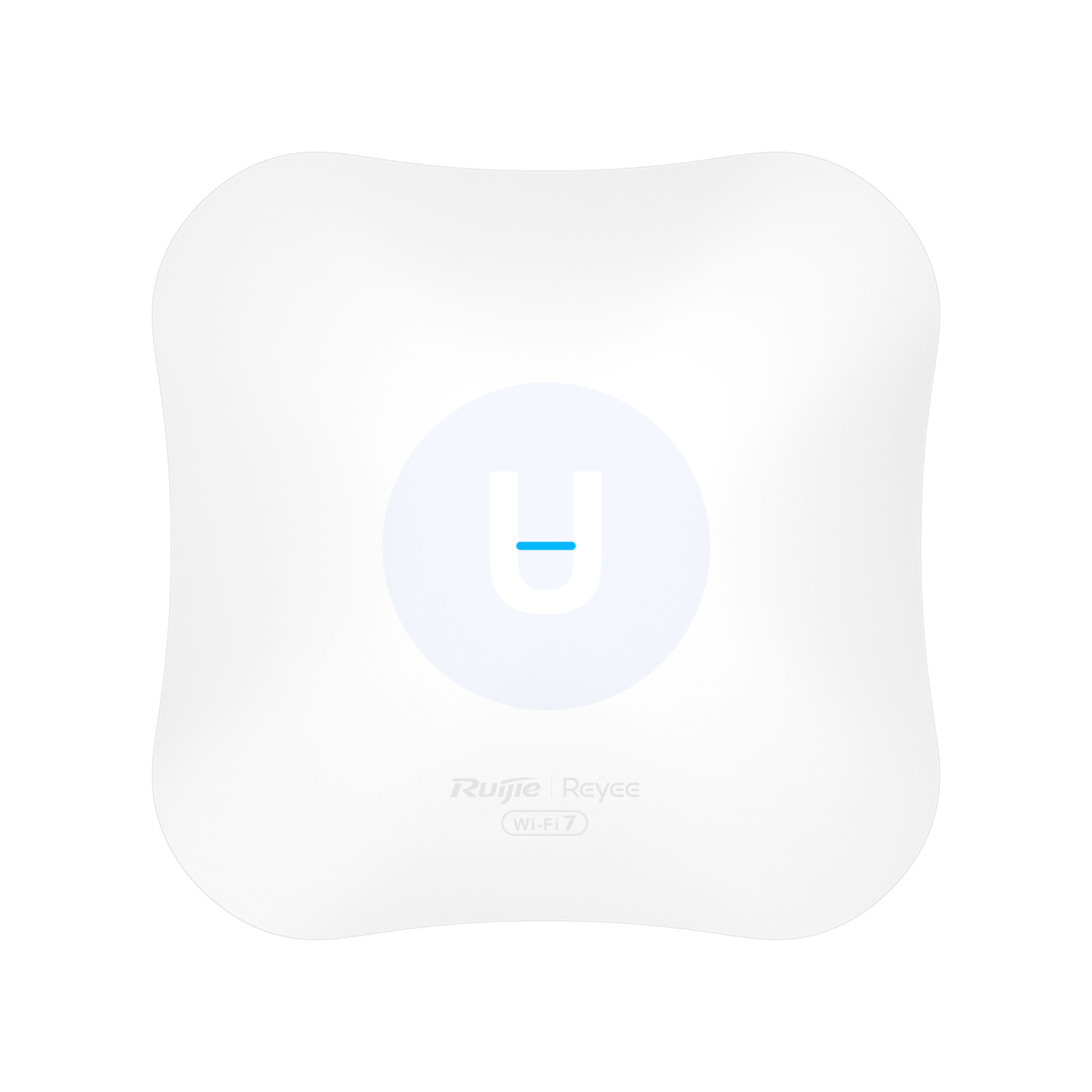

Ruijie Reyee RG-RAP72Pro WiFi 7 Dual-Band Ceiling Access Point

Cost-effective WiFi 7 (802.11be) dual-band ceiling access point with BE5040 performance class, ideal for mid-density environments requiring modern WiFi 7 features without 6 GHz complexity.

SKU:RG-RAP72Pro

75.00 KWD

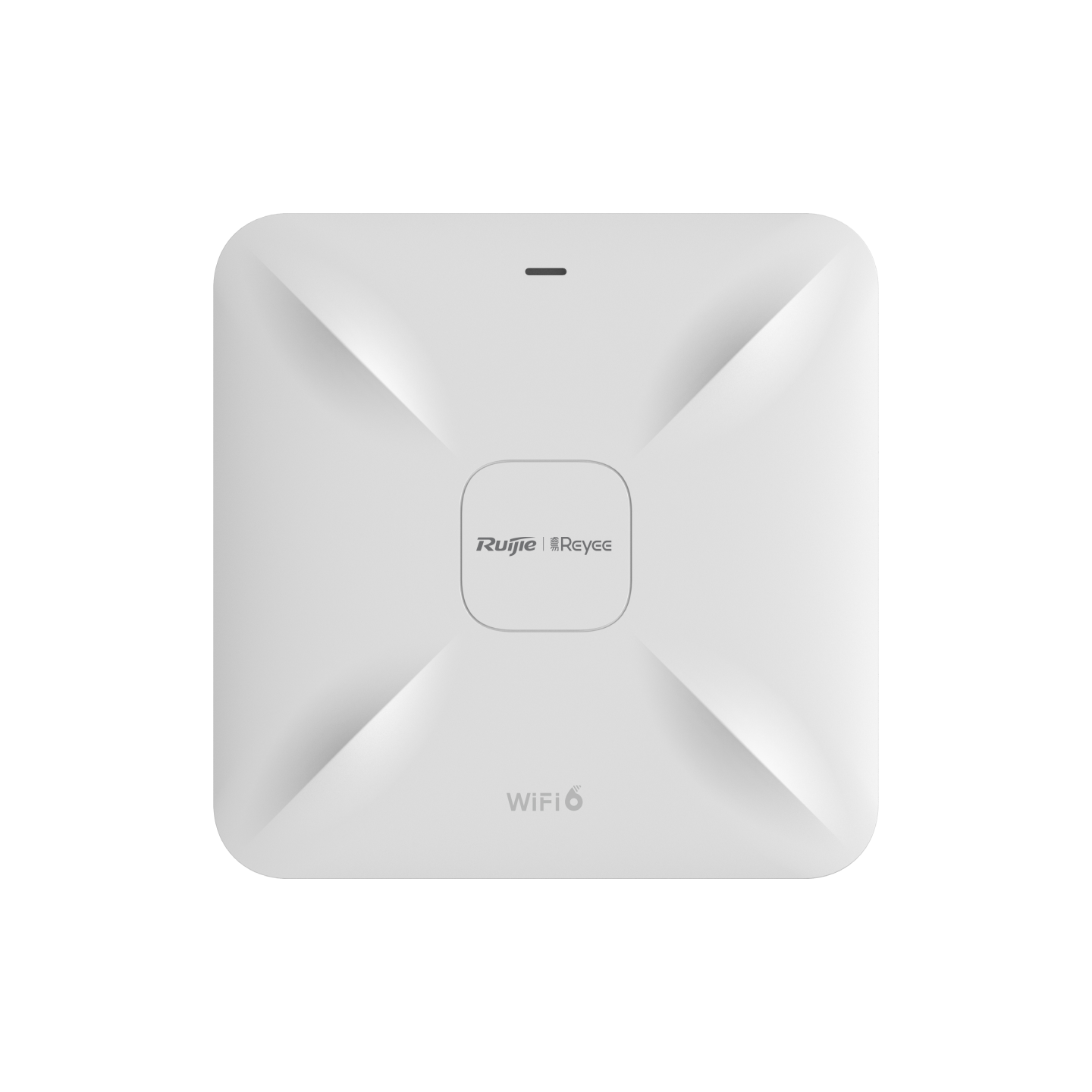

Ruijie Reeye RG-RAP2260 Wi-Fi 6 Access Point
