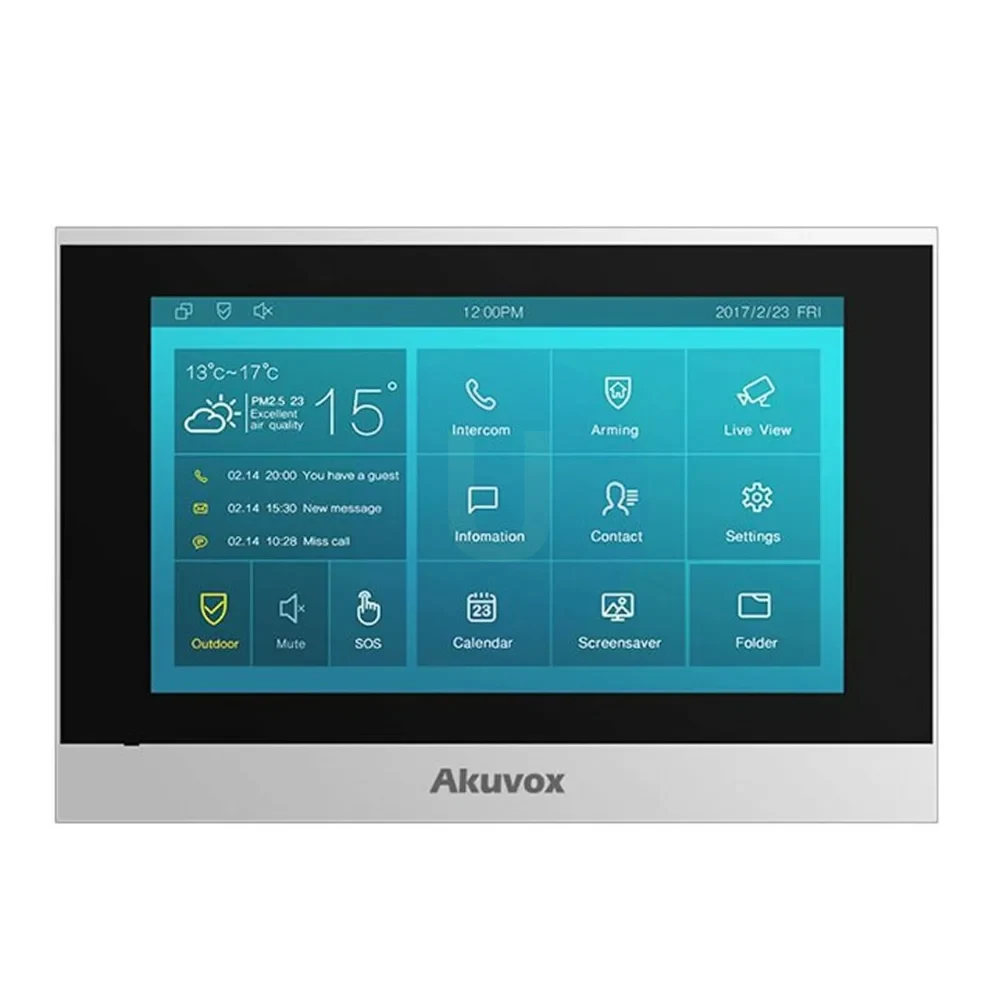

Akuvox C313S 7-Inch Indoor Monitor with Alarm Inputs

1 / 3

A 7-inch touchscreen indoor monitor that answers the door phone and also works as a small home alarm panel, with eight alarm inputs, a relay, RS485 and two network ports.

Akuvox C313S price in Kuwait

Available

65.000 KD

Available with installation only

Free remote support included

A person replies within 4–8 working hours

Brand: Akuvox
Model: C313S
Warranty: 1-year warranty

Installation terms KNET accepted

About the Akuvox C313S

The Akuvox C313S looks the same as the basic C313N, a slim 7-inch touchscreen for answering the door phone, but the back of the unit does more. Eight alarm inputs take door contacts, window sensors, motion detectors or a panic button; when one triggers, the monitor raises an alarm and can call out, so a flat or villa gets basic intrusion alerts without a separate alarm system.

A relay output can drive a local lock, a chime or a light, an RS485 port connects other equipment, and a doorbell input takes a conventional bell push at the flat door. It has two network ports, so a second device, such as another monitor, a phone or a computer, can be connected through it without running another cable.

For the door it does what every C313 does: shows the visitor on the 1024 × 600 capacitive screen, answers hands-free with echo cancellation, opens the door with a tap and lets you look at the door camera at any time. It speaks SIP, so it works with Akuvox and other SIP door phones and with SIP PBXs.

Power is 802.3af PoE (6 W at full load) or 12V DC. The body is 200.2 × 132.2 × 27.2 mm, fits a European or US back box or a desktop stand, and is for indoor use from -10 °C to +45 °C. If the monitor must connect over Wi-Fi, the C313W is this unit with Wi-Fi added.

Akuvox C313S specifications

Ethernet: 2 × RJ45, 10/100 Mbps
Display: 7-inch TFT LCD, 1024 × 600, 180 nits
Video Codec: H.264
Audio Codecs: PCMU, PCMA, G.722
Power Supply: 802.3af PoE, or 12V DC when not using PoE
Type: 7-inch SIP indoor monitor
Audio: Hands-free, echo cancellation, automatic gain control
RS485: 1
Mounting: Wall (European or US back box) or desktop
RAM / ROM: 128 MB / 128 MB
Bell Input: 1
Touchscreen: Projected capacitive
Alarm Inputs: 8
Relay Output: 1
Operating System: Linux
Power Consumption: PoE: 1.44 W standby, 6 W full load
Operating Temperature: -10 °C to +45 °C
Model: C313S
Dimensions: 200.2 × 132.2 × 27.2 mm

Akuvox C313S features

Eight alarm inputs for door, window and motion sensors
Relay output for a local lock, chime or light
Two network ports: connect a second device through it
RS485 and a doorbell input
7-inch 1024 × 600 touchscreen, hands-free calls
Works with Akuvox and other SIP door phones
802.3af PoE or 12V DC

Best suited for

Flats and villas that want the door monitor to also report door, window and motion sensors, or to switch a local lock or light.

Compare the Akuvox C313S with similar models

Available with installation only ? Free remote support included

Specification	Akuvox C313SThis model65.000 KWD	Akuvox C313W75.000 KWD	Akuvox C313N60.000 KWD	Akuvox C313W-285.000 KWD
Ethernet	2 × RJ45, 10/100 Mbps	2 × RJ45, 10/100 Mbps	1 × RJ45, 10/100 Mbps	1 × RJ45, 10/100 Mbps
Display	7-inch TFT LCD, 1024 × 600, 180 nits	7-inch TFT LCD, 1024 × 600, 180 nits	7-inch TFT LCD, 1024 × 600, 180 nits	7-inch TFT LCD, 800 × 480, 220 nits
Power Supply	802.3af PoE, or 12V DC when not using PoE	12V DC, or 802.3af PoE	802.3af PoE, or 12V DC when not using PoE	Power adapter (villa kit), or from the Akuvox NS-2 over…
Type	7-inch SIP indoor monitor	7-inch SIP indoor monitor with Wi-Fi	7-inch SIP indoor monitor	7-inch 2-wire IP indoor monitor with Wi-Fi
Audio	Hands-free, echo cancellation, automatic gain control	Hands-free, echo cancellation, automatic gain control	Hands-free, echo cancellation, automatic gain control	Hands-free, echo cancellation
Power Consumption	PoE: 1.44 W standby, 6 W full load	12V DC: 2.77 W standby, 6.59 W full load	PoE: 1.44 W standby, 6 W full load	48V DC: 2.02 W standby, 7.62 W full load
