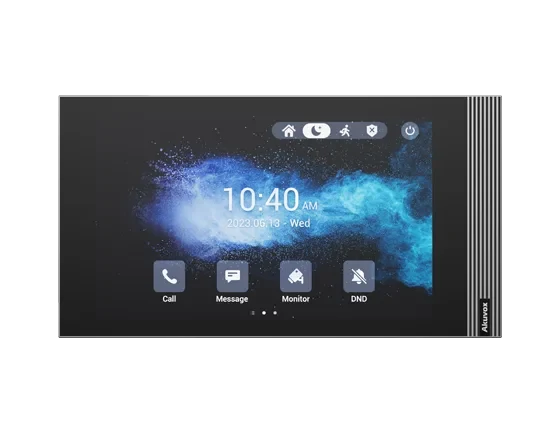

Akuvox S562 7-Inch IPS Indoor Monitor

1 / 11

A slim 7-inch indoor monitor with a bright IPS touchscreen that stays clear from any angle, eight alarm inputs and a relay, on one PoE cable. Silver or white.

Akuvox S562 price in Kuwait

Available

65.000 KD

Available with installation only

Free remote support included

Colour: Silver

A person replies within 4–8 working hours

Brand: Akuvox
Model: S562
Warranty: 1-year warranty

Installation terms KNET accepted

About the Akuvox S562

The Akuvox S562 is Akuvox's newer 7-inch Linux monitor, and the screen is what sets it apart from the C313. It uses an IPS panel at 1024 × 600 and 300 nits, viewable from 85° in every direction, so the visitor's face is clear whether you are standing in front of it, walking past or looking from the side of a bright Kuwaiti hallway. The body is also thinner, at 21.7 mm.

When the door phone rings, the S562 shows the visitor, lets you talk hands-free with echo cancellation and automatic gain control, and opens the door with a tap. You can check the door camera at any time and call other monitors in the house. It speaks SIP, with PCMU, PCMA, G.729 and G.722 audio and H.264 video, so it works with Akuvox and other SIP door phones and SIP PBXs.

Like the C313S it can watch the home too: eight alarm inputs for door, window and motion sensors, a relay output, RS485, a doorbell input and two network ports.

It runs on 802.3af PoE or 12V DC (9 W at full load), measures 216.4 × 118.8 × 21.7 mm and mounts over a European or US back box, or on a desk with Akuvox's S562 desktop stand. Silver or white, for indoor use from -10 °C to +45 °C. The S562W is the same monitor with Wi-Fi 6.

Akuvox S562 specifications

Ethernet: 2 × RJ45, 10/100 Mbps
Display: 7-inch IPS LCD, 1024 × 600, 300 nits
Video Codec: H.264
Audio Codecs: PCMU, PCMA, G.729, G.722
Power Supply: 802.3af PoE, or 12V DC when not using PoE
Type: 7-inch SIP indoor monitor
Audio: Hands-free, echo cancellation, automatic gain control
RS485: 1
Colours: Silver, white
Mounting: Wall (European or US back box) or desktop with the S562 stand
RAM / ROM: 128 MB / 128 MB
Bell Input: 1
Touchscreen: Projected capacitive
Alarm Inputs: 8
Relay Output: 1
Viewing Angle: 85° left, right, up and down
Operating System: Linux
Power Consumption: 5 W standby, 9 W full load
Operating Temperature: -10 °C to +45 °C
Model: S562
Dimensions: 216.4 × 118.8 × 21.7 mm

Akuvox S562 features

7-inch IPS screen, 300 nits, clear from 85° on every side
Slim 21.7 mm body
See, answer and open the door hands-free
Eight alarm inputs and a relay output
Two network ports and RS485
Works with Akuvox and other SIP door phones
802.3af PoE or 12V DC
Silver or white; desktop stand available

Best suited for

Flats and villas that want a clearer, thinner 7-inch monitor than the C313, viewable from across a bright hallway.

Compare the Akuvox S562 with similar models

Available with installation only ? Free remote support included

Specification	Akuvox S562This model65.000 KWD	Akuvox S562W75.000 KWD	Akuvox S565125.000 KWD	Akuvox S563100.000 KWD
Display	7-inch IPS LCD, 1024 × 600, 300 nits	7-inch IPS LCD, 1024 × 600, 300 nits	10-inch IPS LCD, 1280 × 800, 290 nits	8-inch IPS LCD, 1280 × 800, 310 nits
Audio Codecs	PCMU, PCMA, G.729, G.722	PCMU, PCMA, G.729, G.722	PCMU, PCMA, G.722	G.711a, G.711μ, G.729, G.722
Power Supply	802.3af PoE, or 12V DC when not using PoE	12V DC, or 802.3af PoE	802.3af PoE, or 12V DC when not using PoE	802.3af PoE, or 12V DC when not using PoE
Type	7-inch SIP indoor monitor	7-inch SIP indoor monitor with Wi-Fi 6	10-inch SIP indoor monitor	8-inch Android SIP indoor monitor
RS485	1	1	1	Yes
Colours	Silver, white	—	Black, white	Black, white

Same on all: Ethernet · Audio · Bell Input · Alarm Inputs · Relay Output

Akuvox S562 downloads

Datasheetakuvox.com

Akuvox S562 questions

What is the difference between the Akuvox S562 and the C313?

Both are 7-inch Linux monitors. The S562 has an IPS screen (300 nits, 85° viewing on all sides) against the C313's 180-nit panel, and a thinner body. Both have alarm inputs and a relay on the S / W models.
