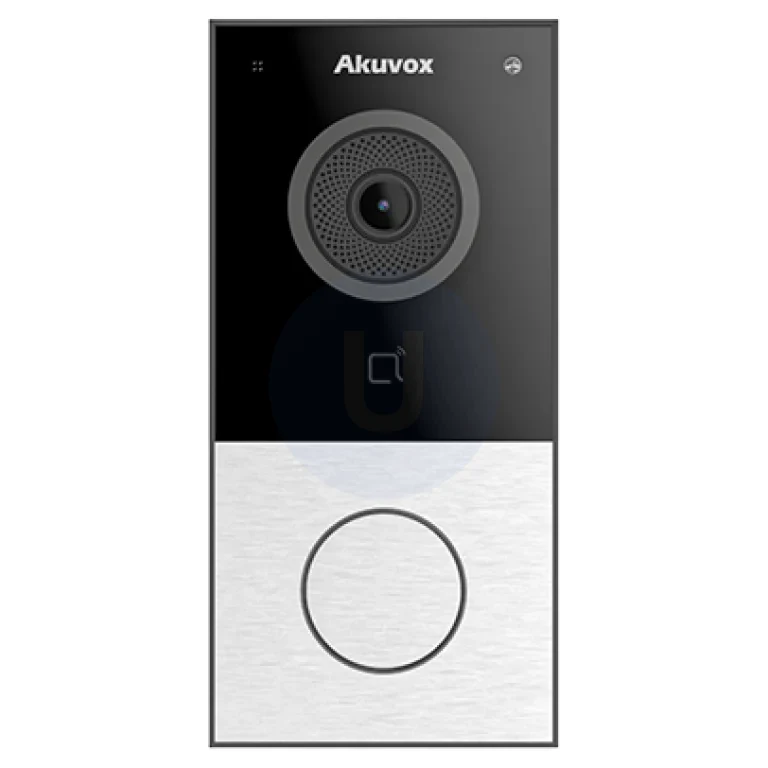

Akuvox E12S-2 2-Wire IP Video Door Phone

1 / 3

The two-wire version of the Akuvox E12S: an IP video door phone that takes its power and network over an existing two-wire intercom cable, so an old intercom can be upgraded without rewiring.

Akuvox E12S-2 price in Kuwait

Available

85.000 KD

Available with installation only

Free remote support included

A person replies within 4–8 working hours

Brand: Akuvox
Model: E12S-2
Warranty: 1-year warranty

Installation terms KNET accepted

About the Akuvox E12S-2

Many older villas and buildings in Kuwait still have the two-core cable of an analogue intercom inside the walls, and pulling a network cable through the same conduit is often impossible. The Akuvox E12S-2 is built for that case: two wires carry both its power and its IP network connection, so the old door station comes off and the E12S-2 goes on the same pair.

In a villa, the two wires can run straight from the door to an Akuvox two-wire indoor monitor, the C313W-2, which Akuvox sells with the E12S-2 as a two-wire kit powered by one adapter. In a building with several flats, the pairs end at an Akuvox NS-2 2-wire IP network switch in the cabinet instead: it is DIN-rail mounted, runs on a 48V (or 24V) DC supply, serves six two-wire devices, and joins the system to the network and internet through one RJ45 port. Several NS-2 switches can be cascaded for larger buildings.

At the door it is an E12 in every other way: one call button, a 2MP camera with a 123° × 69° lens and white LED night lighting, a 13.56 MHz reader for Mifare and DESFire cards (and NFC on Android phones), Bluetooth 5.0, one lock relay, two inputs, a Wiegand port and a tamper alarm. Calls go to an Akuvox indoor monitor such as the C313W-2, to SIP phones, or to the SmartPlus app on residents' mobiles.

The plastic body is IP65 rated, 146 × 70 × 23 mm, surface-mounted, and rated for -40 °C to +55 °C. Where a network cable can reach the door, the E12S on PoE is the simpler choice.

Akuvox E12S-2 specifications

Camera: 2MP, 1/2.7" CMOS
Night Lighting: White LEDs, auto night mode, minimum illumination 0.1 lux
Storage Slot: 1 × TF (microSD) card slot
Video Codec: H.264
Audio Codecs: G.711a, G.711μ, G.722
Ingress Protection: IP65
Type: One-button 2-wire IP video door phone
Audio: Two-way, echo cancellation
Inputs: 2
Wiring: 2 wires for power and network: from a 2-wire indoor monitor (villa kit) or an Akuvox NS-2 switch (buildings)
Housing: Plastic
Wiegand: 1 port, input or output
Capacity: 1,000 users, 5,000 cards
Mounting: Surface, on the wall
Bluetooth: BLE, Bluetooth 5.0
Protocols: SIP v1 / v2, ONVIF, RTSP, HTTP/HTTPS
Call Button: 1
Card Reader: 13.56 MHz: Mifare and DESFire (EV1/EV2/EV3) cards; NFC with Android phones
Tamper Alarm: Yes
Relay Outputs: 1
Viewing Angle: 123° (H) / 69° (V)
Video Resolution: Up to 1920 × 1080 at 30 fps
Operating Temperature: -40 °C to +55 °C
Model: E12S-2
Dimensions: 146 × 70 × 23 mm (H × W × D)
Operating Humidity: 10% to 90%

Akuvox E12S-2 features

Power and network over an existing two-wire intercom cable
No new cable through the walls to upgrade an old intercom
Villa: connects straight to a C313W-2 monitor; buildings: through the NS-2
2MP camera with a 123° × 69° lens and white LED night lighting
Opens with Mifare or DESFire cards, Android NFC or Bluetooth
Calls an Akuvox monitor, SIP phones or the SmartPlus app
Relay for the lock, inputs for an exit button and door contact
IP65 plastic housing

Best suited for

Older villas and buildings whose analogue intercom has a two-core cable in the walls that cannot be replaced with network cable.

Compare the Akuvox E12S-2 with similar models

Available with installation only ? Free remote support included

Specification	Akuvox E12S-2This model85.000 KWD	Akuvox E12S70.000 KWD	Akuvox E12W75.000 KWD	Akuvox E13S51.000 KWD
Camera	2MP, 1/2.7" CMOS	2MP, 1/2.7" CMOS	2MP, 1/2.7" CMOS	2MP, 1/2.8" CMOS
Type	One-button 2-wire IP video door phone	One-button SIP video door phone	One-button SIP video door phone with Wi-Fi	One-button SIP video door phone
Capacity	1,000 users, 5,000 cards	1,000 users, 5,000 cards	1,000 users, 5,000 cards	5,000 cards
Mounting	Surface, on the wall	Surface, on the wall	Surface, on the wall	Flush (in-wall) or surface (on-wall)
Protocols	SIP v1 / v2, ONVIF, RTSP, HTTP/HTTPS	SIP v1 / v2, ONVIF, RTSP, HTTP/HTTPS	SIP v1 / v2, ONVIF, RTSP, HTTP/HTTPS	SIP, ONVIF, RTSP, HTTP/HTTPS
Card Reader	13.56 MHz: Mifare and DESFire (EV1/EV2/EV3) cards; NFC…	13.56 MHz: Mifare and DESFire (EV1/EV2/EV3) cards; NFC…	13.56 MHz: Mifare and DESFire (EV1/EV2/EV3) cards; NFC…	13.56 MHz: Mifare and FeliCa cards; NFC with Android…

Same on all: Video Codec · Audio Codecs · Ingress Protection · Audio · Inputs · Housing

Akuvox E12S-2 downloads

Datasheetakuvox.com

Akuvox E12S-2 questions

What does the Akuvox E12S-2 need besides the two wires?

In a villa, an Akuvox two-wire indoor monitor (the C313W-2) and its power adapter: the monitor powers the door phone over the two wires, as in Akuvox's two-wire kit. In a building with several flats, an Akuvox NS-2 2-wire switch with a 48V DC supply feeds all the door phones and monitors.

Can I reuse the cable of my old analogue intercom?

That is what the E12S-2 is for. The existing two-core cable to the door is connected to the new two-wire monitor or NS-2 switch instead of the old intercom unit, as long as the cable is in good condition.

What is the difference between the E12S-2 and the E12S?

The E12S needs a network cable and runs on PoE. The E12S-2 runs on two wires from a two-wire monitor or the NS-2 switch. The camera, reader, relay and housing are the same.

Can residents answer the E12S-2 on their mobiles?

Yes. Once the two-wire monitor (by Wi-Fi) or the NS-2 (by cable) is connected to the internet, calls can ring the Akuvox SmartPlus app with video, and the door can be opened from the call.
