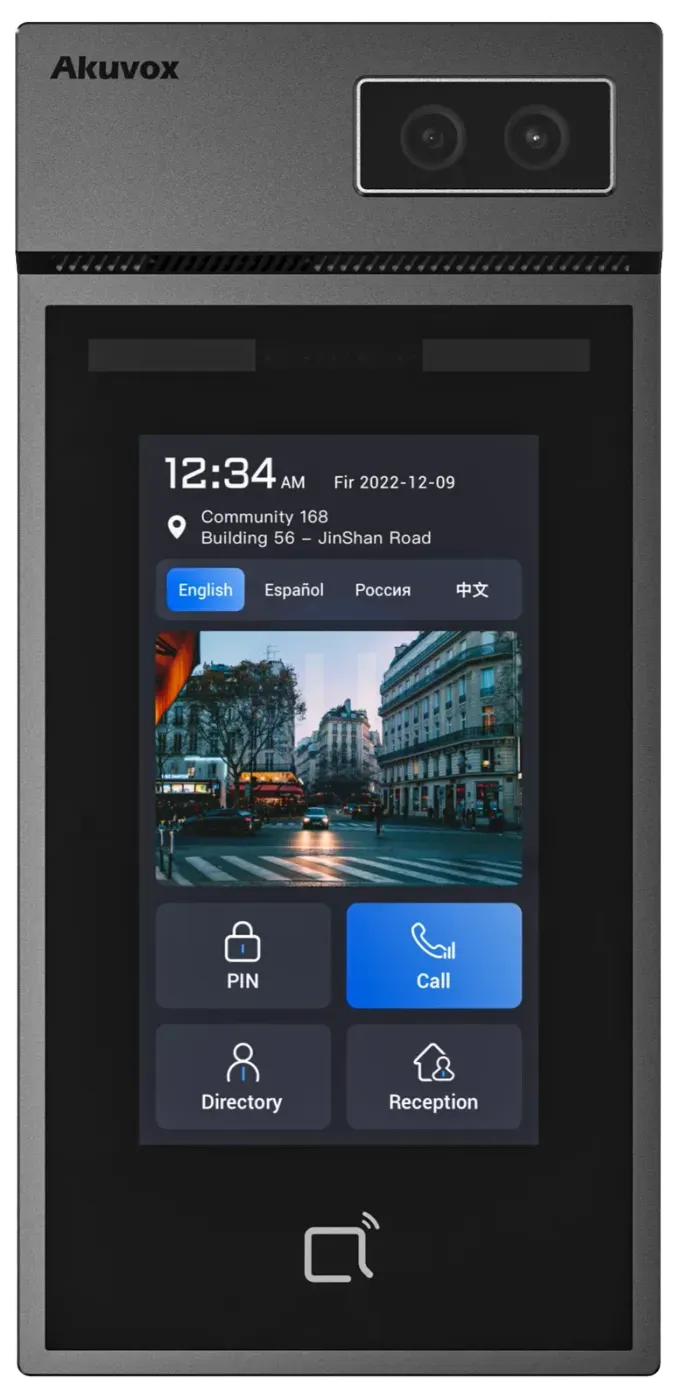

Akuvox S535 Face Recognition Door Phone with 5-Inch Touchscreen
Akuvox S535 price in Kuwait
AvailableIncludes supply, on-site installation, configuration, testing and handover.
- Brand
- Akuvox
- Model
- S535
- Warranty
- 1-year warranty
About the Akuvox S535
An aluminium face recognition door phone with a 5-inch touchscreen, rated IP66 and IK08 for outdoor gates, opening by face, card, PIN, Bluetooth or QR code, with room to add a fingerprint, LTE or induction loop unit later.
The Akuvox S535 brings face recognition to the outdoor gate. Where the E16C and E18C are plastic units for lobbies, the S535 has an aluminium front rated IP66 against water jets and IK08 against impact, so it can stand at a compound gate or the street door of a building.
Two 2MP cameras recognise a face in about 200 ms and check that it is a live person; Akuvox states 99.7% accuracy and 20,000 face templates. Residents can also use a PIN (up to 100,000), a card (100,000: 125 kHz EM, Mifare, DESFire EV2/EV3 and FeliCa), an NFC phone, Bluetooth 5.0 with the Akuvox app, or a QR code sent to a visitor. The 5-inch 720 × 1280 touchscreen carries the resident directory, with up to 20,000 contacts, so it scales to large compounds.
The S535 is modular: an expansion unit attaches under the panel to add a fingerprint reader, an LTE connection or an induction loop for hearing aids, so a site can start with the base unit and add one later. Akuvox's on-wall installation kit covers the panel with its expansion unit.
It has one relay, two inputs, RS485 and Wiegand, and a 12V / 500 mA output that can feed a small lock or reader. Power is 802.3at PoE+ or 12V DC 3A. The base panel is 210 × 100 × 27 mm, mounts flush or on the wall, and is rated -40 °C to +55 °C; in Kuwait, a canopy or shaded wall helps on summer afternoons.
Akuvox S535 specifications
- Night Lighting
- Infrared and white LEDs, light sensor
- Ethernet
- 1 × RJ45, 10/100 Mbps
- Display
- 5-inch IPS touchscreen, 720 × 1280
- Video Codec
- H.264
- Audio Codecs
- G.711a, G.711μ, G.722
- Power Supply
- 802.3at PoE+, or 12V DC / 3A
- Ingress / Impact Rating
- IP66 / IK08
- Type
- Face recognition SIP video door phone
- RS485
- Yes
- Inputs
- 2
- Cameras
- 2 × 2MP (main and auxiliary)
- Wiegand
- 1 port, input or output
- Capacity
- 20,000 users, 20,000 faces, 100,000 cards, 100,000 PINs, 20,000 contacts
- Mounting
- Flush or surface
- Expansion
- Optional fingerprint, LTE or induction loop unit
- Protocols
- SIP, ONVIF, RTSP, HTTP/HTTPS
- Card Reader
- 125 kHz EM; 13.56 MHz Mifare, DESFire (EV2/EV3), FeliCa
- Front Panel
- Aluminium
- Power Output
- 12V / 500 mA
- Tamper Alarm
- Yes
- Motion Sensor
- Yes
- Relay Outputs
- 1
- Viewing Angle
- 116° (H) / 62° (V)
- Unlock Methods
- Face, PIN, card, NFC, Bluetooth (BLE 5.0), QR code
- Face Recognition
- About 200 ms, 99.7% accuracy (Akuvox), liveness detection
- Operating System
- Linux
- Video Resolution
- Up to 1920 × 1080
- Operating Temperature
- -40 °C to +55 °C
- Model
- S535
- Dimensions
- 210 × 100 × 27 mm (H × W × D), base unit
Akuvox S535 features
- Face recognition outdoors: aluminium, IP66 and IK08
- Liveness detection with a second camera
- 5-inch touchscreen directory for up to 20,000 contacts
- Face, PIN, card, NFC, Bluetooth and QR code
- 100,000 cards and PINs
- Add a fingerprint, LTE or induction loop unit later
- 12V / 500 mA output for a lock or reader
- 802.3at PoE+ or 12V DC
Best suited for
Compound gates and street-facing building entrances that want face recognition outdoors, with a large resident directory.
Compare the Akuvox S535 with similar models
| Specification | Akuvox S535This model220.000 KWD | Akuvox S532205.000 KWD | Akuvox R25K on-wall187.000 KWD | |
|---|---|---|---|---|
| Display | 5-inch IPS touchscreen, 720 × 1280 | 2.8-inch, 320 × 240 | 5-inch IPS touchscreen, 720 × 1280 | — |
| Power Supply | 802.3at PoE+, or 12V DC / 3A | 802.3at PoE (PoE+) | 802.3at PoE+, or 12V DC / 3A | 802.3af PoE |
| Type | Face recognition SIP video door phone | Vandal-resistant SIP video door phone with keypad | Face and fingerprint SIP video door phone | SIP video door phone with numeric keypad |
| Inputs | 2 | 4 | 2 | 2 |
| Capacity | 20,000 users, 20,000 faces, 100,000 cards, 100,000… | 50,000 cards, 500 contacts | 20,000 faces, 20,000 fingerprints, 100,000 cards… | 1,000 users, 1,000 PINs, 1,000 contacts, 5,000 cards |
| Mounting | Flush or surface | Flush or surface | Flush or surface | On-wall (this build); flush mounting possible |
Same on all: Ethernet · RS485 · Wiegand · Front Panel · Tamper Alarm
Akuvox S535 downloads
Akuvox S535 questions
Can the Akuvox S535 be mounted outdoors?
Yes. Its aluminium front is rated IP66 and IK08. Its working range is -40 °C to +55 °C, so in Kuwait a canopy or shaded wall is advisable.
Can a fingerprint reader be added to the S535 later?
Yes. Akuvox makes a fingerprint expansion unit that mounts under the panel; LTE and induction loop units are also available. The S535 with the fingerprint unit is listed separately.
What is the difference between the S535 and the E16C?
Both have a 5-inch touchscreen and face recognition. The S535 is aluminium and rated IP66 / IK08 for outdoor gates, holds far more cards and contacts, and takes expansion units; the E16C is a plastic unit for lobbies and covered entrances.
What power does the S535 need?
802.3at PoE+ or a 12V DC 3A supply.
