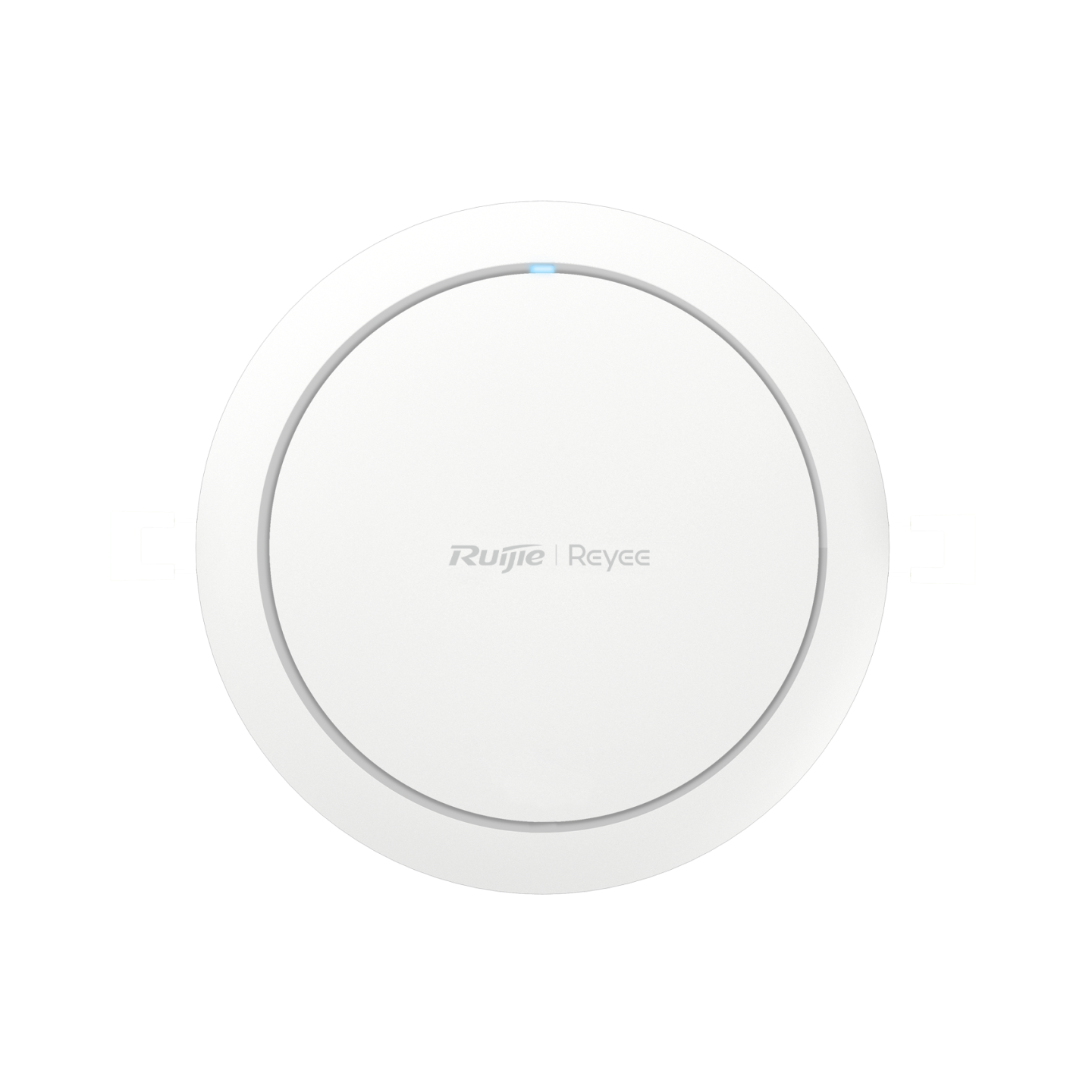

Ruijie Reyee RG-RAP2266 Wi-Fi 6 Access Point

1 / 4

The Ruijie Reyee RG-RAP2266 is a Wi-Fi 6 AX3000 Indoor Ceiling-Mount Access Point with 4 spatial streams and up to 2974 Mbps.

Ruijie RG-RAP2266 price in Kuwait

Ships to order

34.000 KD

Available with installation only

Free remote support included

A person replies within 4–8 working hours

The RAP2266 is the faster ceiling Wi-Fi 6 model, AX3000 with a 160 MHz channel on 5 GHz and up to 512 clients, for busy meeting rooms and classrooms.

Number of 10/100/1000BASE-T ports: 1
Antenna: 2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 3 built-in omnidirectional antennas
5 GHz wireless data rate: 2401 Mbps
2.4 GHz wireless data rate: 573 Mbps
Maximum wireless data rate: 2974 Mbps
Maximum number of associated wireless clients: 64 (2.4 GHz), 512 (5 GHz), 512 (2.4 GHz and 5 GHz enabled)
Power supply: DC power adapter; PoE/PoE+
IPv6: Yes
IP rating: IP41
Product Type: Ceiling AP
Radio design: Dual-radio, 4 spatial streams; 2.4 GHz: 2 x 2, MU-MIMO; 5 GHz: 2 x 2, MU-MIMO
Mounting options: Ceiling/Wall
Local power supply: Yes, one DC power connector (12 V, 2 A)
Operating temperature: 0°C to 40°C (32°F to 104°F)
Maximum power consumption: 18 W
Maximum number of devices that can be managed: 300
Color: White
Model: Ruijie Reyee RG-RAP2266
Weight: ≤ 0.5 kg (1.10 lbs.) (without packaging materials)
Dimensions of the DC connector: Outer diameter: 5.5 mm (0.22 in.)Inner diameter: 2.1 mm (0.08 in.)Depth: 10 mm (0.39 in.)
Product dimensions (diameter x height): Ø220 mm x 52.6 mm (Ø8.66 in. x 2.07 in.) (excluding the mounting bracket)

FCC Part 15CE MarkIC CertificationWi-Fi Alliance Certified

Busy meeting rooms and classrooms.

Available with installation only ? Free remote support included

Specification	Ruijie RG-RAP2266This model34.000 KWD	Ruijie RG-RAP6226.000 KWD	Ruijie RG-RAP126040.000 KWD	Ruijie RG-RAP126130.000 KWD
Number of 10/100/1000BASE-T ports	1	1	5	2
Antenna	2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 3…	2.4 GHz: 2 built-in omnidirectional antennas; 5 GHz: 3…	5 GHz: 1 built-in omnidirectional antennaIntegrated 2.4…	Integrated 2.4 GHz and 5 GHz: 2 built-in…
5 GHz wireless data rate	2401 Mbps	1201 Mbps	2401 Mbps	2401 Mbps
Maximum wireless data rate	2974 Mbps	1774 Mbps	2974 Mbps	2974 Mbps
Maximum number of associated wireless clients	64 (2.4 GHz), 512 (5 GHz), 512 (2.4 GHz and 5 GHz…	64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz…	64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz…	64 (2.4 GHz), 256 (5 GHz), 256 (2.4 GHz and 5 GHz…
Power supply	DC power adapter; PoE/PoE+	DC power adapter; PoE/PoE+	PoE/PoE+	PoE/PoE+
