Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point

Name: Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point
Brand: Ruijie Reyee
SKU: RG-RAP1261
Availability: InStock

Ruijie Reeye

Indoor Wi-Fi Access Points

RG-RAP1261

Ultra-thin wall-plate style WiFi 6 (802.11ax) dual-band access point with AX3000 performance, designed for standard 86mm wall boxes in hotels, apartments, and offices.

Contact for pricing

Product Installation Service Available

We provide comprehensive installation and setup services for this product. From basic home installations to advanced enterprise configurations, our expert team ensures optimal performance.

Home Installation

Office Installation

Enterprise Setup

Technical Support

Installation Services for Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point

Our expert team provides comprehensive installation services for this product across all environments

Home Installation

Professional installation services for residential environments, ensuring optimal performance for your home network.

Office Installation

Complete office network installation with advanced configuration, security, and performance optimization for business environments.

Enterprise Installation

Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.

Technical Support

Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Product Description

The RG-RAP1261 is an ultra-thin, wall-plate style dual-band WiFi 6 (802.11ax) access point, designed to be installed in a standard wall box (86mm), replacing or complementing wall outlets or network jacks. It is targeted for scenarios like: - Hotels / guest rooms - Apartments, villas - Offices with wall-mounted AP needs - Corridors or zone coverage where ceiling APs are less ideal Its form factor is very slim (~8.5 mm in thickness for "plate" portion) and aims for minimal visual intrusion. Because it's dual-band, it does not include 6 GHz — but it offers solid AX (WiFi 6) performance (AX3000 class) in 2.4 / 5 GHz bands.

Specifications

Weight:~0.16 kg (excluding mounting bracket)

Security:WPA / WPA2 / WPA3 support, guest isolation, ACLs

Dimensions:86 mm × 86 mm (square faceplate) × 42.4 mm depth

Mesh Support:Reyee Mesh / Self-Organizing Network (SON) / AI-driven optimizations (WIO)

SSID Support:Up to 8 SSIDs

Antenna Gains:2.4 GHz ~1.6 dBi, 5 GHz ~4.13 dBi

Power Support:IEEE 802.3af / 802.3at PoE-in (no PoE-out), Maximum power consumption < ~15 W

WiFi Standard:IEEE 802.11ax (WiFi 6), backward compatible with 802.11a/b/g/n/ac

Client Support:Up to 512 concurrent clients (maximum), Recommended ~110 in typical usage

Ethernet Ports:2 × 10/100/1000 Base-T (Gigabit Ethernet) ports (one uplink, one pass-through LAN)

Transmit Power:2.4 GHz ~20 dBm, 5 GHz ~30 dBm (region dependent)

Roaming Support:L2 / L3 roaming, 802.11k / v roaming

Advanced Features:Channel bonding, DFS support, auto power/channel adjustment, load balancing, RSSI threshold

Maximum Data Rates:Combined (AX3000): up to ~2,976 Mbps (574 Mbps @ 2.4 GHz + 2,402 Mbps @ 5 GHz)

Radio Configuration:Dual-band: 2.4 GHz (2×2 MIMO), 5 GHz (2×2 MIMO)

Storage Temperature:–40 °C to +70 °C

Antenna Configuration:Internal omnidirectional antennas (integrated)

Operating Temperature:0 °C to 40 °C

Key Features

Ultra-thin wall-plate design (~8.5 mm thickness) for minimal visual intrusion

AX3000 class WiFi 6 performance for strong dual-band throughput

Dual LAN ports with pass-through capability for local wired connectivity

PoE-powered installation simplifying deployment in existing infrastructure

Mesh and cloud management integration with Reyee/Ruijie ecosystem

Support for high client density (512 max, ~110 recommended)

Smart RF optimization with auto channel/power adjustment and interference adaptation

Modern security support including WPA3 and guest isolation

Standard wall-box compatibility for easy retrofitting

Compact aesthetic design that blends into interiors seamlessly

Seamless roaming and load balancing capabilities

Enterprise-grade management and monitoring features

Related Products

Other products with professional installation services

Ruijie Reyee RG-RAP1260 WiFi 6 Dual-Band Wall-Plate Access Point

Multi-port WiFi 6 (802.11ax) wall-plate access point with AX3000 performance and 5 Gigabit Ethernet ports, designed for comprehensive room connectivity in hotels and offices.

SKU:RG-RAP1260

Contact for pricing

Ruijie Reyee RG-RAP72 WiFi 7 Dual-Band Ceiling Access Point

Entry-level WiFi 7 (802.11be) dual-band ceiling access point with BE3600 performance class, ideal for small offices and environments adopting WiFi 7 without 6 GHz requirements.

SKU:RG-RAP72

Contact for pricing

Ruijie Reyee RG-RAP72Pro WiFi 7 Dual-Band Ceiling Access Point

Cost-effective WiFi 7 (802.11be) dual-band ceiling access point with BE5040 performance class, ideal for mid-density environments requiring modern WiFi 7 features without 6 GHz complexity.

SKU:RG-RAP72Pro

75.00 KWD

Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point

Next-generation WiFi 7 (802.11be) ceiling-mount access point with tri-radio support, delivering BE19000 speeds and advanced features for high-density indoor environments.

SKU:RG-RAP73HD

120.00 KWD

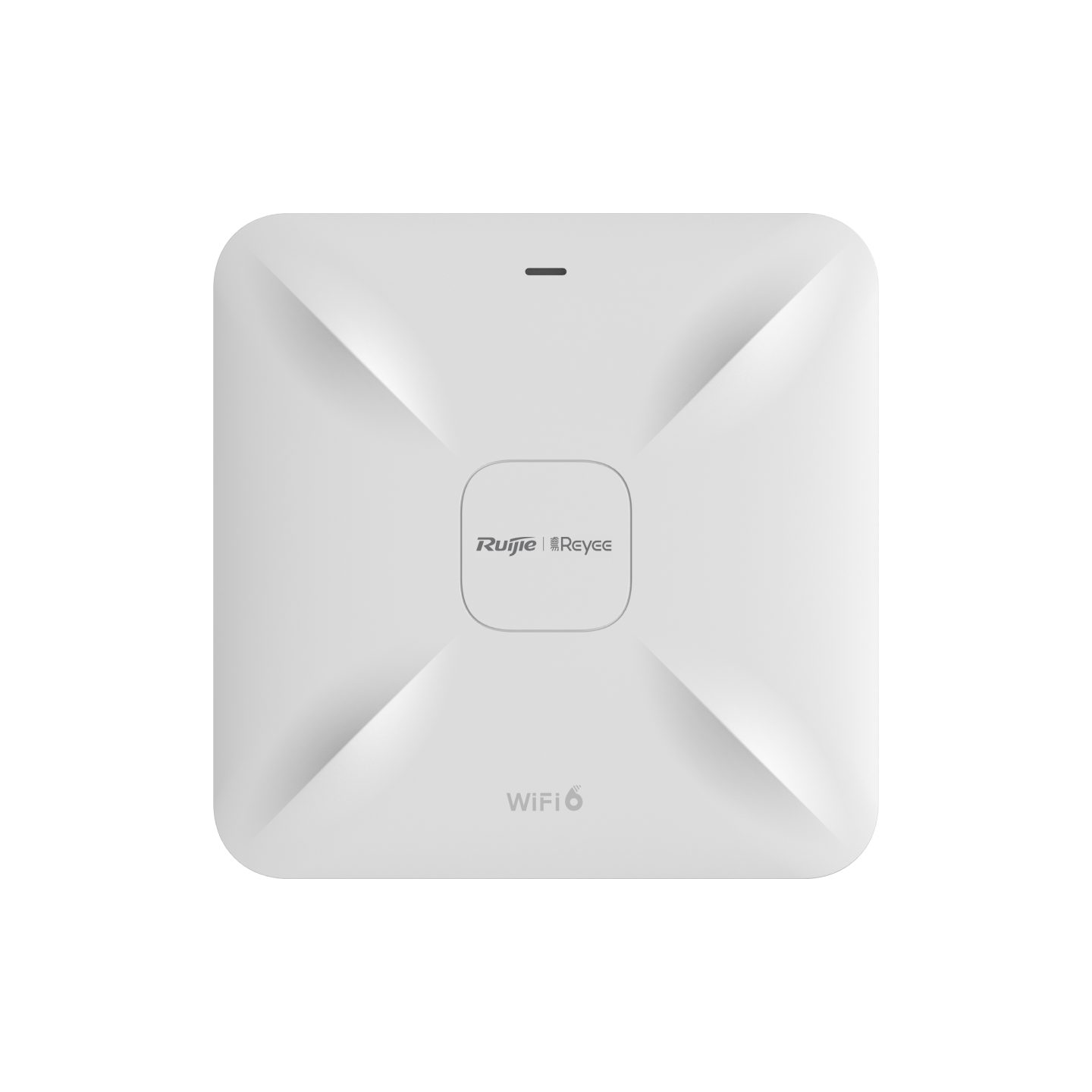

Ruijie Reeye RG-RAP2260 Wi-Fi 6 Access Point
