Ruijie Reyee RG-RAP1260 WiFi 6 Dual-Band Wall-Plate Access Point
Multi-port WiFi 6 (802.11ax) wall-plate access point with AX3000 performance and 5 Gigabit Ethernet ports, designed for comprehensive room connectivity in hotels and offices.
Available with full project delivery and installation
Expert Installation
Certified engineers on-site
Warranty Covered
3 years manufacturer warranty
Fast Deployment
Quick turnaround
Ongoing Support
AMC & technical support available
Who This Is Built For
| Features | High throughput in a wall-plate form with up to ~2,976 Mbps AX3000 performanceMulti-port versatility with 4 LAN ports for local wired devices plus PoE-in uplinkSeamless roaming and mesh support with 802.11k/v roaming and Reyee Mesh integrationCloud and remote management via Ruijie/Reyee platform for centralized monitoringCompact form factor suitable for wall mounting in various indoor environmentsGood client support with 512 maximum clients and ~110 recommended for optimal performanceStrong antenna performance with 3dBi (2.4GHz) and 5dBi (5GHz) gainsPoE-powered deployment for simplified installation without additional wiringEnterprise-grade security with WPA3 and advanced encryption supportAI-driven optimization and automatic channel/power adjustmentMultiple SSID support for network segmentation and guest accessEasy integration with existing network infrastructure |
|---|---|
| Use Cases |
|
Technical Specifications
- Weight
- ~0.5 kg or less
- Security
- WPA2 / WPA3 support, captive portal, cloud/remote management
- Dimensions
- 124 mm × 86 mm × 24 mm
- Management
- Ruijie / Reyee cloud management platform integration
- Antenna Gains
- 2.4 GHz ~3 dBi, 5 GHz ~5 dBi
- Power Support
- IEEE 802.3af / 802.3at PoE-in, Typical power consumption: ≤ ~12 W
- Wi Fi Standard
- IEEE 802.11ax (WiFi 6) dual-band (2.4 GHz + 5 GHz)
- Ethernet Ports
- 5 × 1 Gbps RJ45 ports total: 1 × PoE-in uplink, 4 × downlink LAN ports
Related Solutions We Install
Ruijie Reyee RG-RAP1261 WiFi 6 Dual-Band Wall-Plate Access Point
Ultra-thin wall-plate style WiFi 6 (802.11ax) dual-band access point with AX3000 performance, designed for standard 86mm wall boxes in hotels, apartments, and offices.
View Solution →
Ruijie Reyee RG-RAP72 WiFi 7 Dual-Band Ceiling Access Point
Entry-level WiFi 7 (802.11be) dual-band ceiling access point with BE3600 performance class, ideal for small offices and environments adopting WiFi 7 without 6 GHz requirements.
View Solution →
Ruijie Reyee RG-RAP72Pro WiFi 7 Dual-Band Ceiling Access Point
Cost-effective WiFi 7 (802.11be) dual-band ceiling access point with BE5040 performance class, ideal for mid-density environments requiring modern WiFi 7 features without 6 GHz complexity.
View Solution →
Ruijie Reyee RG-RAP73HD WiFi 7 Tri-Radio Ceiling Access Point
Next-generation WiFi 7 (802.11be) ceiling-mount access point with tri-radio support, delivering BE19000 speeds and advanced features for high-density indoor environments.
View Solution →

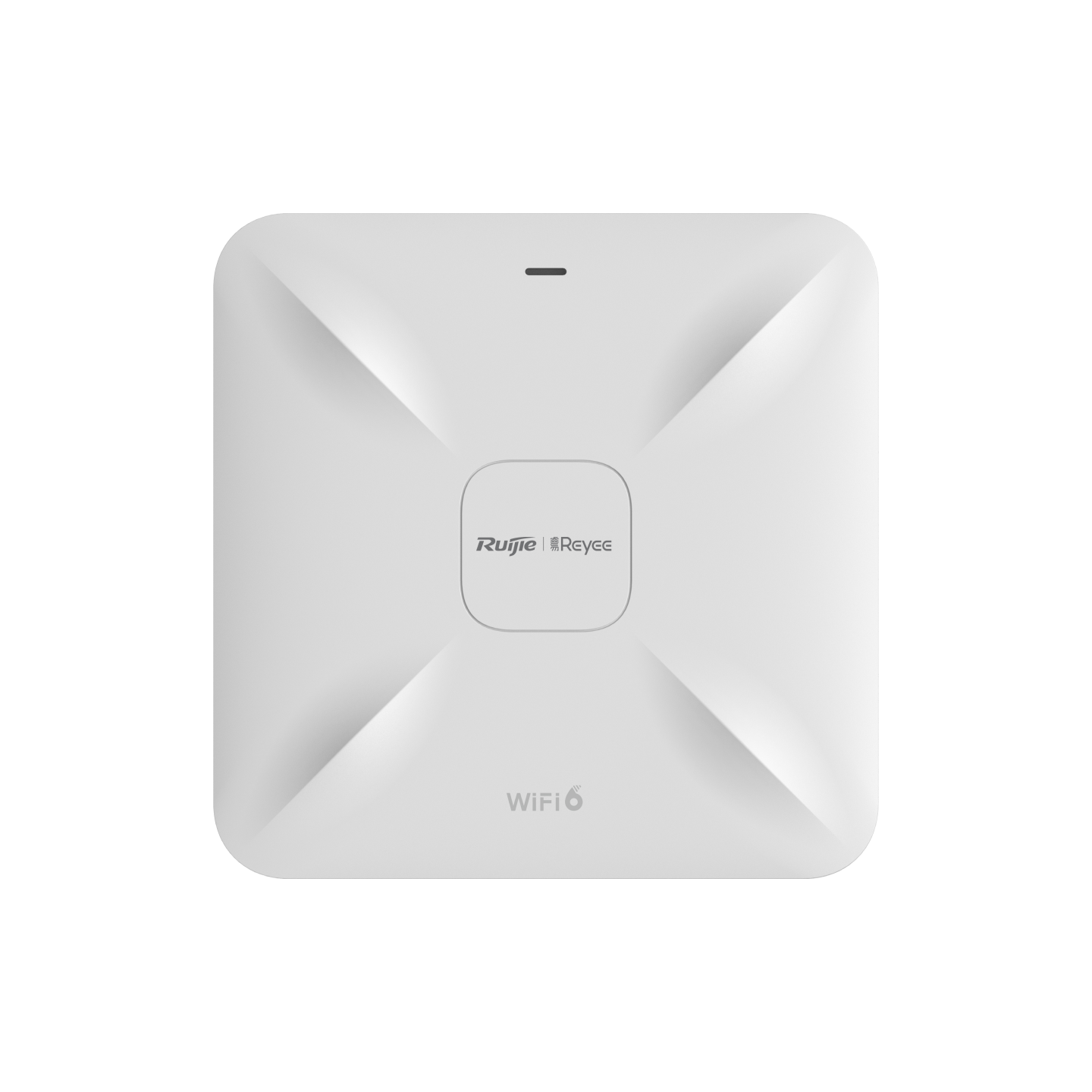

Ruijie Reeye RG-RAP2260 Wi-Fi 6 Access Point
