IPC3534SB-ADNZK-I0

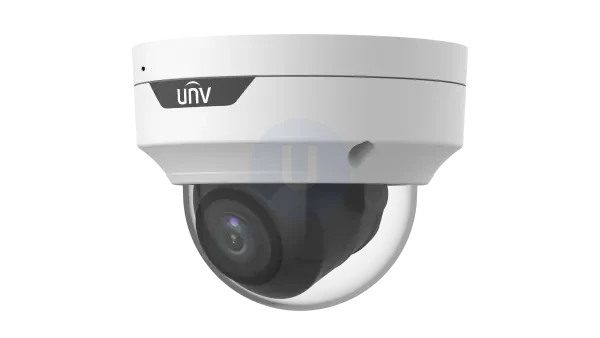

Uniview IPC3534SB-ADNZK-I0 4MP LightHunter VF IR Dome Network Camera

4MP LightHunter VF IR Dome Network Camera

Contact for pricing

Contact for Availability

Get a custom quote from our team

Ask for price Call

Need it installed? Get a site quote

Pay with

Installation, warranty & supportIP camera installation: 5–15 KWD per point · 1-year hardware warranty

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

Manufacturer warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Who This Is Built For

Features

High quality image with 4 MP, 1/2.7" CMOS sensor4 MP (2688 × 1520)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fpsUltra 265, H.265, H.264, MJPEGSmart intrusion prevention, including cross line, intrusion, enter area, leave area detectionIntelligent intrusion prevention system based on target classification significantly reduces false alarms caused by leaves, birds, and lights, accurately focusing on humans, vehicles, and non-motor vehiclesIntelligent people flow counting and crowd density monitoring120 dB true WDR technology enables clear image in strong light sceneSupports 9:16 corridor modeBuilt-in micSmart IR, up to 30 m (98.4 ft) IR distanceMicroSD, up to 512 GBCable-free

Technical Specifications

BLC: Support
EMC: CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
HLC: Support
OSD: Up to 8 OSDs
ROI: Support
S/N: >52 dB
WDR: 120 dB
Flip: Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Iris: F1.2
WIFI: N/A
Defog: Digital defog
Power: DC 12 V±25%, PoE (IEEE 802.3af)
Client: EZStation, APP
Safety: CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Sensor: 1/2.7" CMOS
U-Code: Support
Weight: 0.59 kg (1.31 lb)
Network: 1 × RJ45 10 M/100 M Base-TX Ethernet
Shutter: Auto/Manual, 1 ~ 1/100000s
Material: Metal
Security: Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Smart IR: Support
Alarm I/O: 1/1
Audio I/O: 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Day/Night: IR-cut filter with auto switch (ICR)
Dewarping: N/A
Iris Type: Fixed
Lens Type: Motorized
Protocols: IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
User/Host: Up to 32 users. 3 user levels: administrator, common user and operator
Dimensions: Ø128 mm × 100 mm (Ø5.0" × 3.9") (Ø × H)
Frame Rate: Main Stream: 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; ; Third Stream: D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps
Protection: IP67 (IEC 60529); IK10 (IEC 62262)
Wavelength: 850 nm
Environment: CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU)
Serial Port: N/A
Suppression: Support
Web Browser: Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Built-In Mic: Support
Edge Storage: MicroSD, up to 512 GB
Focal Length: 2.7 to 13.5 mm
Privacy Mask: Up to 4 areas
Reset Button: Support
Video Output: N/A
Video Stream: Triple streams
Audio Bitrate: G.711U/G.711A: 64 kbps, AAC-LC: 128 kbps
Sampling Rate: G.711U/G.711A: 8 kHz, AAC-LC: 8 kHz, 16 kHz, 48 kHz
Two-Way Audio: Support
White Balance: Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Max Resolution: 4 MP
Video Bit Rate: 128 Kbps to 16 Mbps
Basic Detection: Motion detection, Ultra motion detection, Tampering alarm, Audio detection
Network Storage: ANR, NAS (NFS)
People Counting: Support people flow counting and crowd density detection
Power Interface: Cable-free
Adjustment Angle: Pan: 0° to 355°, Tilt: 0° to 70°, Rotate: 0° to 355°
Built-In Speaker: N/A
General Function: Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication
Surge Protection: 6 KV
Audio Compression: G.711U, G.711A, AAC-LC
Field Of View (D): 134.65° to 36.63°
Field Of View (H): 103.58° to 31.05°
Field Of View (V): 54.37° to 17.55°
Min. Illumination: Color: 0.002 Lux (F1.2, AGC ON), 0 Lux with IR
Power Consumption: Max. 6.5 W
Video Compression: Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile: Baseline profile, Main profile, High profile
Supplemental Light: IR
Storage Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Web Client Language: 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese
Working Environment: -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
DORI Distance (Lens): 2.7 to 13.5 mm
Light On/Off Control: Auto/Manual
Statistical Analysis: N/A
Compatible Integration: ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
DORI Distance (Detect): 60.8 m to 303.8 m (199.5 ft. to 996.7 ft)
DORI Distance (Observe): 24.3 m to 121.5 m (79.7 ft. to 398.6 ft)
Digital Noise Reduction: 2D/3D DNR
DORI Distance (Identify): 6.1 m to 30.4 m (20.0 ft. to 99.7 ft)
DORI Distance (Recognize): 12.2 m to 60.8 m (40.0 ft. to 199.5 ft)
Illumination Distance (IR): 30 m (98.4 ft)
Smart Intrusion Prevention: Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
