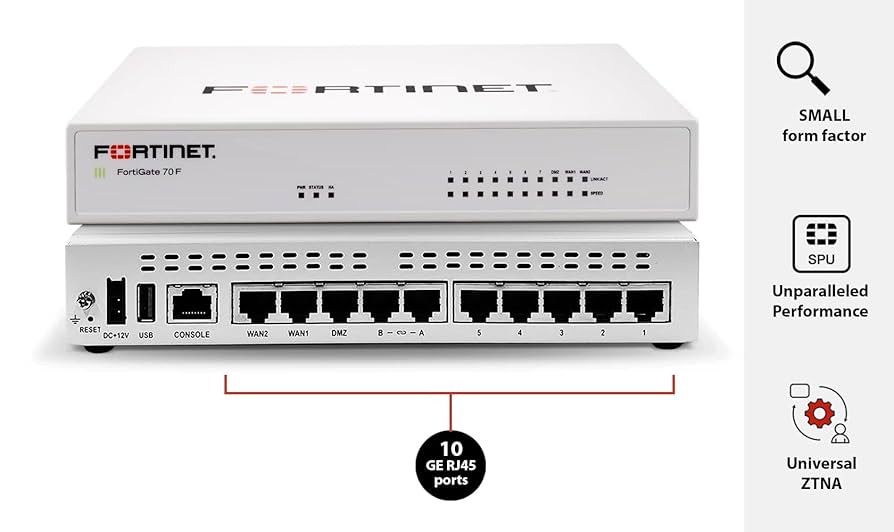

FortiGate 70F Next-Generation Firewall

High-performance, fanless desktop Next-Generation Firewall (NGFW) designed for branch offices and mid-sized businesses. Delivers advanced security, SD-WAN, and networking features in a compact, energy-efficient form factor.

285.000 KD

Available on request for projects

Supplied and installed as part of your project. Send your requirement for a quotation.

1-year warranty

Request a quotation Call

Need it installed? Get a site quote

Pay with

Installation, warranty & support1-year hardware warranty

Custom orders, pre-order products and project orders are planned with you as part of the order. Any visit or consultation is quoted with the project.

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

1-year warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Who This Is Built For

Features

Next-Generation Firewall (NGFW)Secure SD-WAN with application-aware routingFortiGuard AI/ML-powered security servicesDeep SSL Inspection including TLS 1.3Integrated IPS (Intrusion Prevention System)Anti-malware protectionApplication Control (AVC)Web Filtering and URL FilteringSandboxing capabilitiesData Loss Prevention (DLP)Overlay performance optimizationFortinet Security Fabric IntegrationZero-touch provisioningCloud management via FortiCloudCentralized management via FortiManagerFanless design for silent operationHigh reliability with excellent MTBFCompact desktop form factorEnergy-efficient operationSOC4 architecture with SPU accelerationLow latency and high throughputCost-effective performance

Use Cases

Branch offices requiring high-performance NGFW
Mid-sized businesses needing advanced security
SD-WAN implementations
Environments requiring compact, silent appliances
Cost-effective security solutions
High-throughput network security
SSL inspection requirements
Application-aware routing needs
Unified security fabric deployments
Cloud-managed security implementations

Technical Specifications

RAM: ~3.7 GB
MTBF: High reliability
SD-WAN: Secure SD-WAN with application-aware routing and overlay performance optimization
Weight: ~1.01 kg (2.23 lb)
SSL/TLS: Deep SSL Inspection including TLS 1.3
Storage: ~3.7 GB eMMC
DMZ Ports: 1x GE RJ45
LAN Ports: 7x GE RJ45
Processor: ARMv8 multi-core CPU + FortiASIC NP6XLITE
WAN Ports: 2x GE RJ45
Dimensions: 38.5 × 216 × 160 mm (1.5 × 8.5 × 6.3 in)
Management: Fortinet Security Fabric, Zero-touch provisioning, FortiManager, FortiCloud
Form Factor: Compact, fanless desktop
Power Input: 12 V DC adapter
Total Ports: 10x GE RJ45
Architecture: SOC4 (SD-WAN ASIC + SPU accelerator)
Firewall PPS: ~9 Mpps
IPS Throughput: Up to 1.4 Gbps
NGFW Throughput: Up to 1 Gbps
Storage Humidity: 10% to 90% non-condensing
Power Consumption: ~17-18 W
Security Features: FortiGuard AI/ML-powered Security Services, IPS, Antivirus, Web/App Control, Sandboxing, URL Filtering, DLP
Forti Token Support: Up to 500 tokens
HA Modes Available: Active-Active, Active-Passive, Clustering
SSL-VPN Throughput: ~900 Mbps
Forti Switch Support: Up to 24 switches
New TCP Sessions/Sec: ~35,000
Operating Temperature: 0°C to 40°C
Concurrent TCP Sessions: ~700,000
Virtual Domains (VDOMs): Up to 10
Firewall Policy Capacity: ~5,000 policies
CAPWAP Throughput (HTTP 64K): ~8 Gbps
Max Concurrent SSL-VPN Users: ~200 (tunnel mode)
SSL Inspection CPS & Sessions: ~400 CPS, ~55,000 sessions
Firewall Latency (64-Byte UDP): ~3.3 μs
Client-To-Gateway IPSec Tunnels: 500
IPsec VPN Throughput (512-Byte): ~6.5 Gbps
SSL Inspection (VPN) Throughput: ~6.5 Gbps
Forti AP Support (Total / Tunnel): Up to 64 / 32 devices
Gateway-To-Gateway IPSec Tunnels: 200
App Control Throughput (HTTP 64K): ~1.8 Gbps
Firewall Throughput (64-Byte UDP): ~6 Gbps
Threat Protection (UTM) Throughput: Up to 800 Mbps
Firewall Throughput (1518-Byte UDP): ~10 Gbps
SSL Inspection Throughput (HTTPS Avg): ~630 Mbps
