TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch

TP-Link VPN Routers

Unmanaged Switches

TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch

Name: TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch
Brand: TP-Link
SKU: SG2005P-PD
Price: 30.00 KWD
Availability: InStock

1 / 4

Outdoor IP Cameras & Access Points Failing in Harsh Weather with TP-Link SG2005P-PD Switch?

Outdoor surveillance and WiFi deployments face extreme weather challenges requiring professional weatherproof networking solutions. Our outdoor networking specialists handle IP55-rated installations, PoE passthrough optimization, and extreme temperature deployments. We specialize in TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch installations for mission-critical outdoor infrastructure.

IP55 weatherproof installation and sealing optimization

PoE passthrough configuration for 200-meter power extension

Extreme temperature deployment (-40°C to 60°C) planning

Outdoor mounting and cable protection solutions

Omada SDN integration for remote outdoor site management

Installation Services for TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch

Our expert team provides comprehensive installation services for this product across all environments

Home Installation

Professional installation services for residential environments, ensuring optimal performance for your home network.

Office Installation

Complete office network installation with advanced configuration, security, and performance optimization for business environments.

Enterprise Installation

Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.

Technical Support

Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Specifications

QoS:Quality of Service support

Type:5-Port Gigabit Outdoor Smart Switch with PoE Passthrough

VLAN:802.1Q VLAN support

Model:SG2005P-PD

Series:Omada Smart Switch

Weight:0.8 kg (1.76 lbs)

Mounting:Pole/wall mounting with included brackets

Security:Access Control List (ACL)

PoE_Input:1x PoE++ input port (powered device)

Dimensions:100 × 38.5 × 170 mm (3.9 × 1.5 × 6.7 inches)

Management:Omada SDN Controller, Web GUI, CLI

PoE_Output:4x PoE+ output ports

Jumbo_Frame:9KB support

Ports_Total:5 Gigabit Ethernet ports

PoE_Standards:IEEE 802.3bt (PoE++), 802.3at (PoE+), 802.3af (PoE)

Certifications:FCC, CE, RoHS, IP55

Forwarding_Rate:7.44 Mpps

Heat_Dissipation:243.99 BTU/hr

Layer_3_Features:Static Routing

Storage_Humidity:5% to 90% RH non-condensing

MAC_Address_Table:8K entries

Power_Consumption:Maximum 71.5W (with full PoE++ input)

Operating_Humidity:10% to 90% RH non-condensing

Switching_Capacity:10 Gbps

Storage_Temperature:-40°C to 70°C (-40°F to 158°F)

Weatherproof_Rating:IP55 (dust and water resistant)

PoE_Power_Budget_PoE:6W (when powered by 802.3af)

Operating_Temperature:-40°C to 60°C (-40°F to 140°F)

PoE_Power_Budget_Type3:44W (when powered by 802.3bt Type 3 - 60W)

PoE_Power_Budget_Type4:64W (when powered by 802.3bt Type 4 - 90W)

PoE_Passthrough_Distance:Up to 200 meters without speed loss

PoE_Power_Budget_PoE_Plus:19W (when powered by 802.3at)

Key Features

IP55-rated weatherproof enclosure for harsh outdoor environments

PoE passthrough technology extends power up to 200 meters

4 PoE+ output ports for outdoor IP cameras and access points

Omada SDN integration for centralized outdoor network management

Extreme temperature operation: -40°C to 60°C

Static routing capabilities for advanced network topologies

Quality of Service (QoS) for prioritizing critical traffic

VLAN support for network segmentation and security

Access Control List (ACL) for enhanced security

8K MAC address table for large network support

Jumbo frame support for high-performance applications

Pole and wall mounting options with included brackets

Dust and water resistant design (IP55 rating)

Professional outdoor installation solution

Related Products

Other products with professional installation services

TP-Link SG2218P Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

18-port smart switch with 16 PoE+ ports and 150W budget, perfect for small to medium business IP camera and access point deployments.

SKU:SG2218P

119.90 KWD

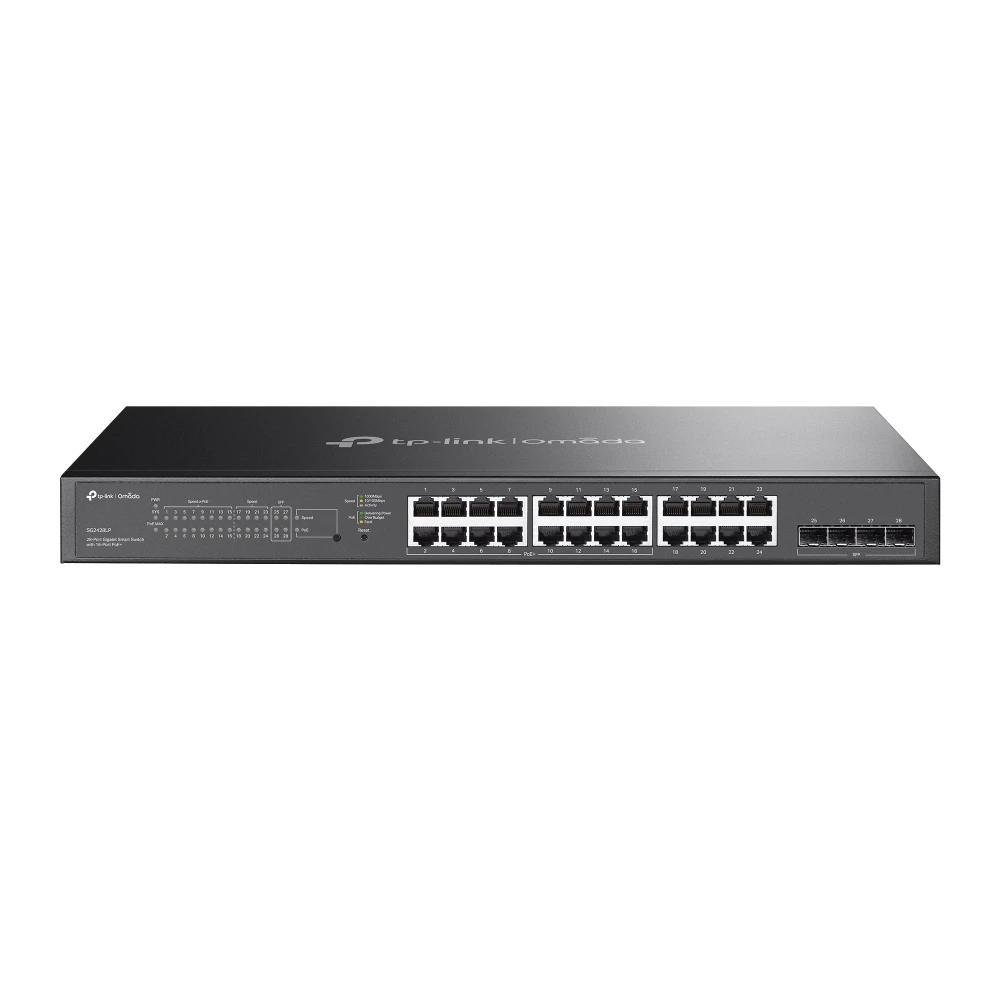

TP-Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

28-port smart switch with 16 PoE+ ports, 150W budget, and centralized cloud management for medium business access layers.

SKU:SG2428LP

149.90 KWD

TP-Link SG2428P Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

28-port smart switch with 24 PoE+ ports and 180W budget, ideal for medium to large business access layer with high PoE density.

SKU:SG2428P

169.90 KWD

TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

High-density 52-port smart switch with 32 PoE+ ports and 240W budget, perfect for large-scale IP camera and access point deployments.

SKU:SG2452LP

199.90 KWD

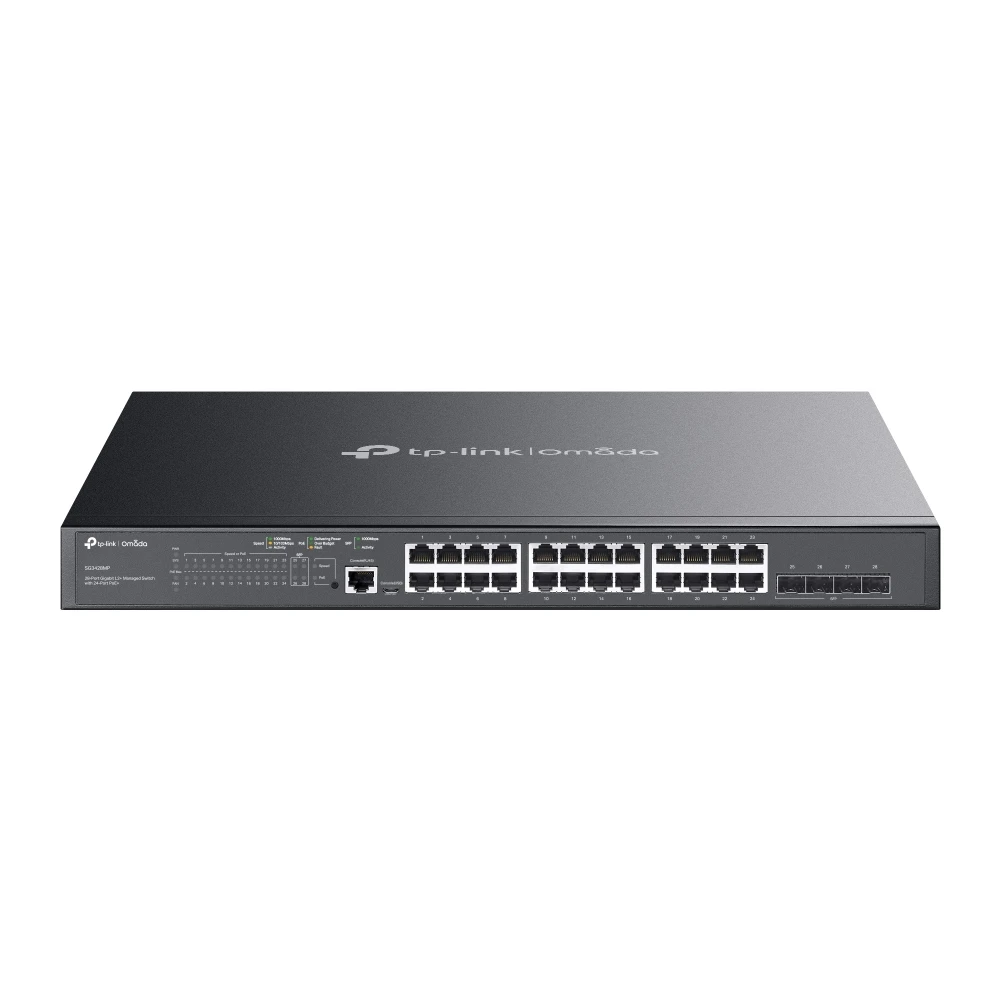

TP-Link SG3428MP Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

Advanced L2+ managed switch with 24 PoE+ ports, 250W budget, and enhanced management features for enterprise access layer deployments.

SKU:SG3428MP

95.00 KWD

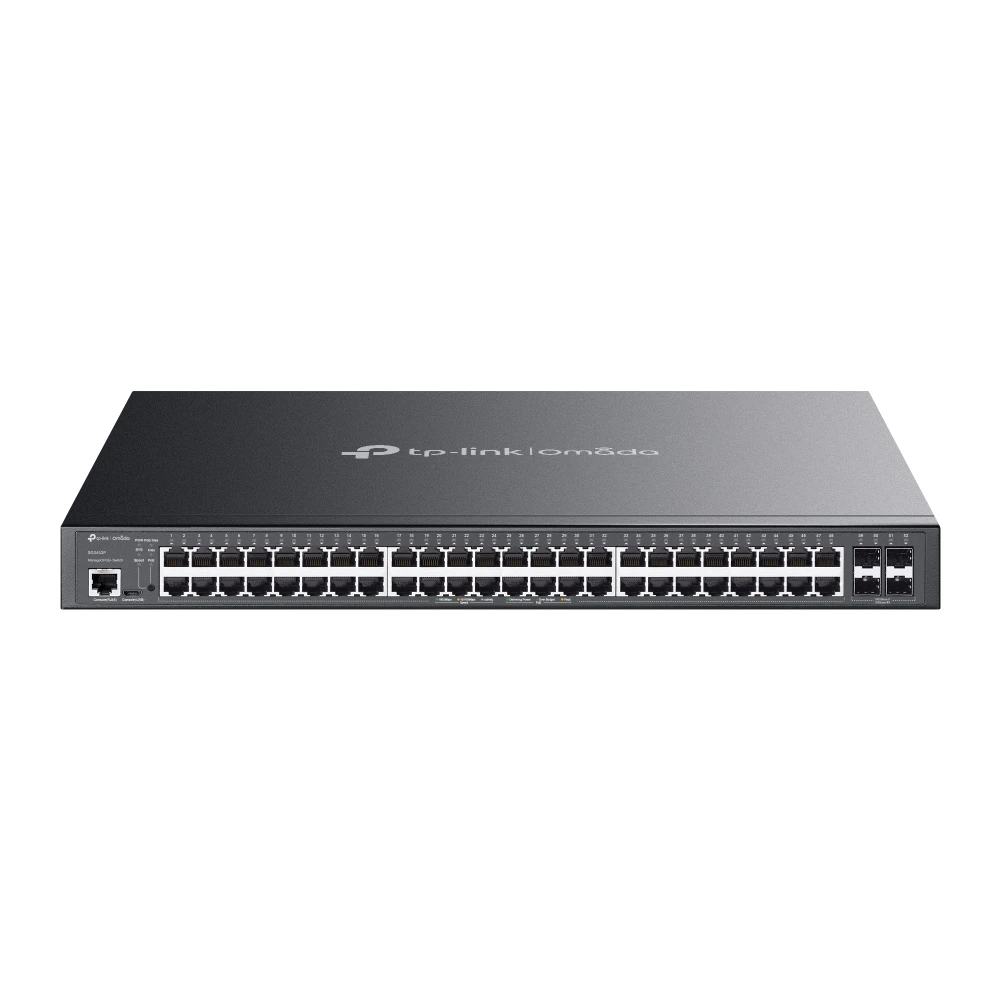

TP-Link SG3452P Omada 48-Port Gigabit PoE+ Access Switch

Professional 48-port Gigabit PoE+ access switch with 4 SFP slots, 384W PoE budget, and Omada SDN integration. Perfect for enterprise access layer deployments requiring high-density PoE+ connectivity.

SKU:SG3452P

189.90 KWD

TP-Link SG2008 Omada 8-Port Gigabit Smart Switch

Basic 8-port smart switch with Omada management, ideal for small office deployments without PoE requirements.

SKU:SG2008

35.90 KWD

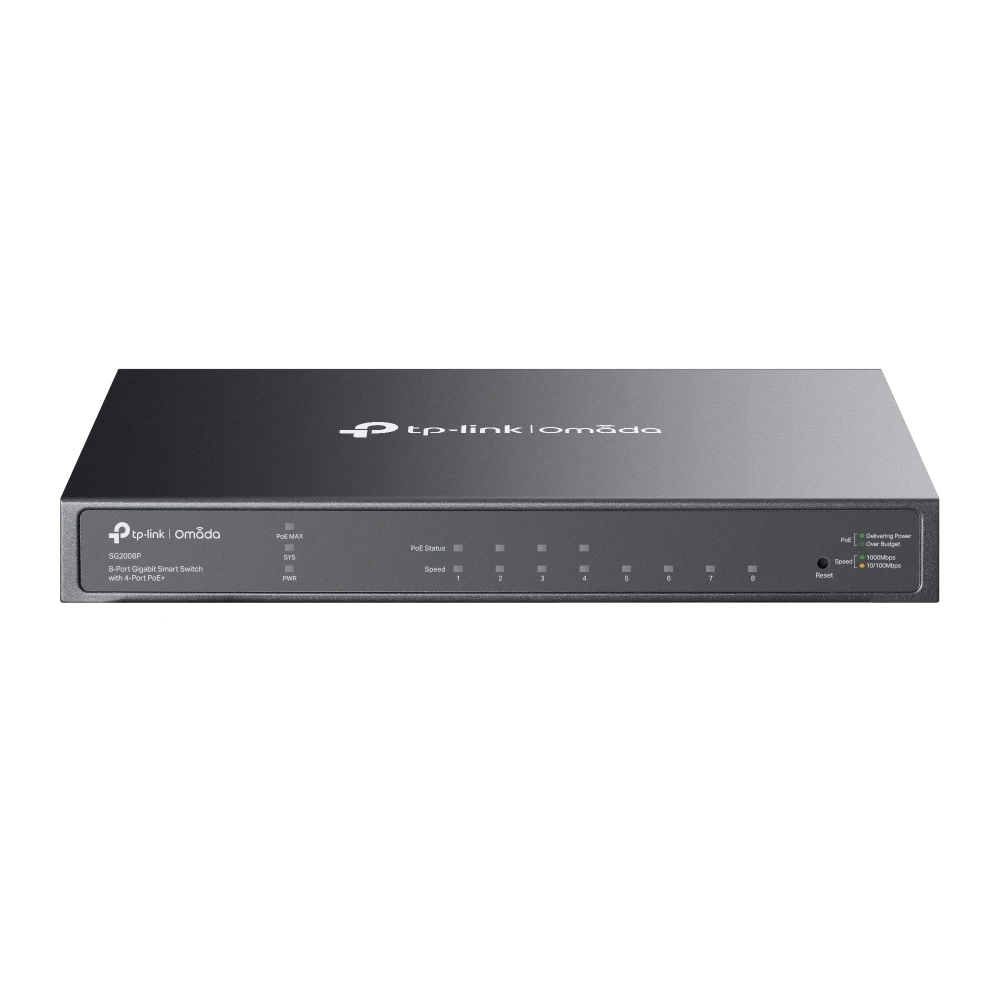

TP-Link SG2008P Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
