TP-Link SG3452P Omada 48-Port Gigabit PoE+ Access Switch

Name: TP-Link SG3452P Omada 48-Port Gigabit PoE+ Access Switch
Brand: TP-Link
SKU: SG3452P
Price: 189.90 KWD
Availability: InStock

1 / 4

IP Cameras & WiFi Access Points Failing Due to PoE+ Power Issues with TP-Link SG3452P Switch?

High-density PoE+ deployments often fail due to inadequate power planning, overloaded circuits, and poor cable management. Our certified PoE+ specialists solve power budget conflicts, optimize device placement, and ensure reliable 24/7 operation. We specialize in TP-Link SG3452P Omada 48-Port Gigabit PoE+ Access Switch installations for mission-critical security and WiFi infrastructure.

PoE+ power budget analysis and device compatibility testing

IP camera and WiFi access point optimal placement planning

Cable length calculation and power loss optimization

24/7 monitoring setup with automatic failover configuration

Omada SDN integration for centralized PoE device management

Installation Services for TP-Link SG3452P Omada 48-Port Gigabit PoE+ Access Switch

Our expert team provides comprehensive installation services for this product across all environments

Home Installation

Professional installation services for residential environments, ensuring optimal performance for your home network.

Office Installation

Complete office network installation with advanced configuration, security, and performance optimization for business environments.

Enterprise Installation

Advanced enterprise-level installation with high availability, scalability, and integration with existing infrastructure.

Technical Support

Dedicated technical assistance, maintenance, and monitoring services to ensure continuous optimal performance.

Specifications

CPU:ARM Cortex-A9 Dual-Core

QoS:Port-based, 802.1p, DSCP, WRR, SP

IPv6:IPv6 Neighbor Discovery, Path MTU Discovery

Type:L2+ Managed Access Switch with PoE+

Model:SG3452P

Series:Omada Access Series

Weight:4.2 kg (9.3 lbs)

Mounting:19-inch rack mountable

Security:ACL, IP-MAC-Port Binding, DHCP Snooping, DoS Defense

Multicast:IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping

SFP_Ports:4x Gigabit SFP slots

Dimensions:440 × 285 × 44 mm (17.3 × 11.2 × 1.7 inches)

Management:Omada SDN Controller, Web GUI, CLI, SNMP

Ports_Total:52 ports

Flash_Memory:32 MB

PoE_Standard:IEEE 802.3at/af PoE+

Power_Supply:AC 100-240V, 50/60Hz

VLAN_Support:4K VLANs, Port-based, 802.1Q Tag VLAN

Buffer_Memory:12 MB

Spanning_Tree:STP, RSTP, MSTP (64 instances)

Certifications:FCC, CE, RoHS, UL

Forwarding_Rate:77.4 Mpps

Layer_2_Features:VLAN (4K), STP/RSTP/MSTP, LACP, LLDP

Layer_3_Features:Static Routing, DHCP Snooping, IGMP Snooping

Link_Aggregation:Static/Dynamic LACP (up to 26 groups)

PoE_Power_Budget:384W total PoE budget

Storage_Humidity:5% to 95% RH non-condensing

Gigabit_PoE_Ports:48x Gigabit PoE+ RJ45 ports

MAC_Address_Table:16K entries

Power_Consumption:Maximum 450W (with full PoE load)

Operating_Humidity:10% to 90% RH non-condensing

PoE_Power_Per_Port:Up to 30W per port

Switching_Capacity:104 Gbps

Storage_Temperature:-40°C to 70°C (-40°F to 158°F)

Operating_Temperature:0°C to 50°C (32°F to 122°F)

Key Features

48 Gigabit PoE+ ports with 384W total power budget

4 Gigabit SFP slots for fiber uplink connectivity

Omada SDN integration for centralized cloud management

Advanced L2+ switching with static routing capabilities

Comprehensive PoE+ support up to 30W per port

Enterprise-grade security with ACL and port binding

4K VLAN support with 802.1Q tagging

Advanced QoS with multiple scheduling algorithms

Spanning Tree Protocol with 64 MSTP instances

Link aggregation with up to 26 LACP groups

IPv6 support for future-ready networking

Professional 19-inch rack-mountable design

Zero-touch provisioning for easy deployment

SNMP v1/v2c/v3 for network monitoring

Related Products

Other products with professional installation services

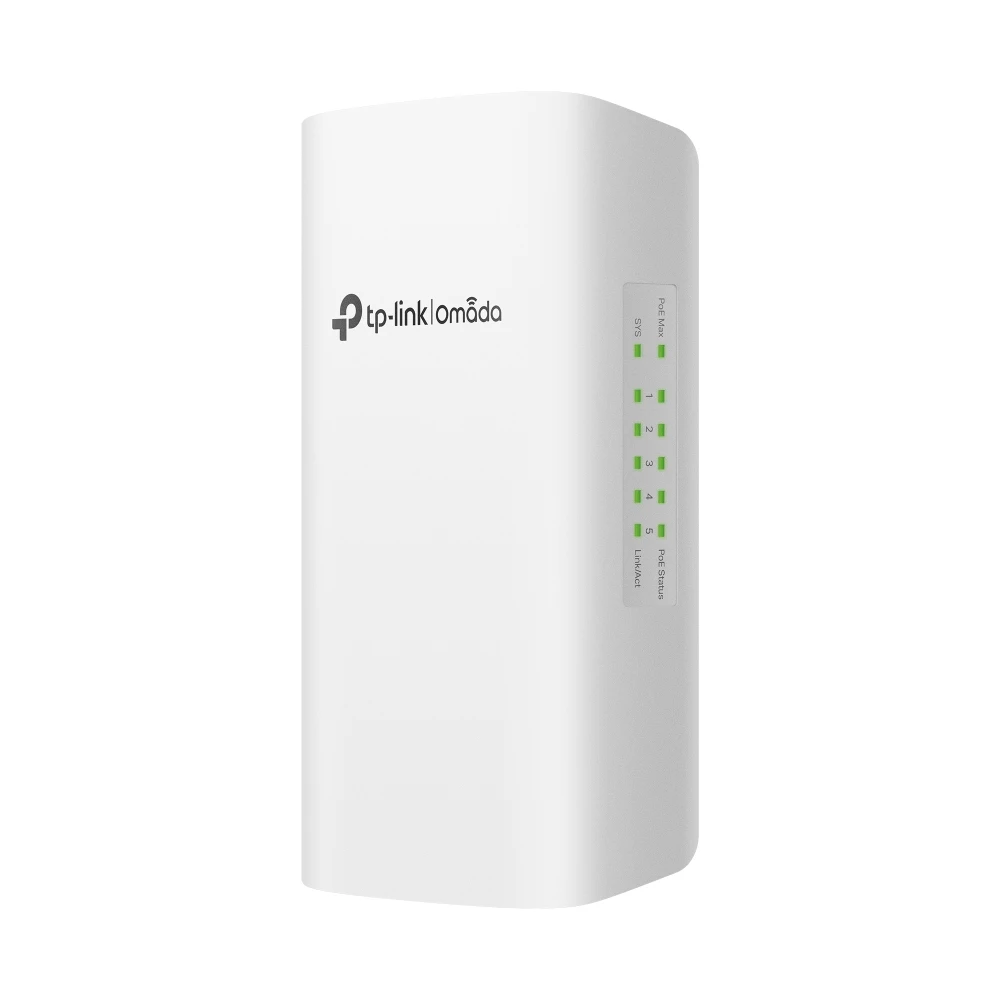

TP-Link SG2005P-PD Omada 5-Port Gigabit Outdoor PoE+ Smart Switch

Professional IP55-rated outdoor smart switch with PoE passthrough technology. Extends power up to 200 meters for outdoor IP cameras and access points in harsh weather conditions.

SKU:SG2005P-PD

30.00 KWD

TP-Link SG2218P Omada 18-Port Gigabit Smart Switch with 16-Port PoE+

18-port smart switch with 16 PoE+ ports and 150W budget, perfect for small to medium business IP camera and access point deployments.

SKU:SG2218P

119.90 KWD

TP-Link SG2428LP Omada 28-Port Gigabit Smart Switch with 16-Port PoE+

28-port smart switch with 16 PoE+ ports, 150W budget, and centralized cloud management for medium business access layers.

SKU:SG2428LP

149.90 KWD

TP-Link SG2428P Omada 28-Port Gigabit Smart Switch with 24-Port PoE+

28-port smart switch with 24 PoE+ ports and 180W budget, ideal for medium to large business access layer with high PoE density.

SKU:SG2428P

169.90 KWD

TP-Link SG2452LP Omada 52-Port Gigabit Smart Switch with 32-Port PoE+

High-density 52-port smart switch with 32 PoE+ ports and 240W budget, perfect for large-scale IP camera and access point deployments.

SKU:SG2452LP

199.90 KWD

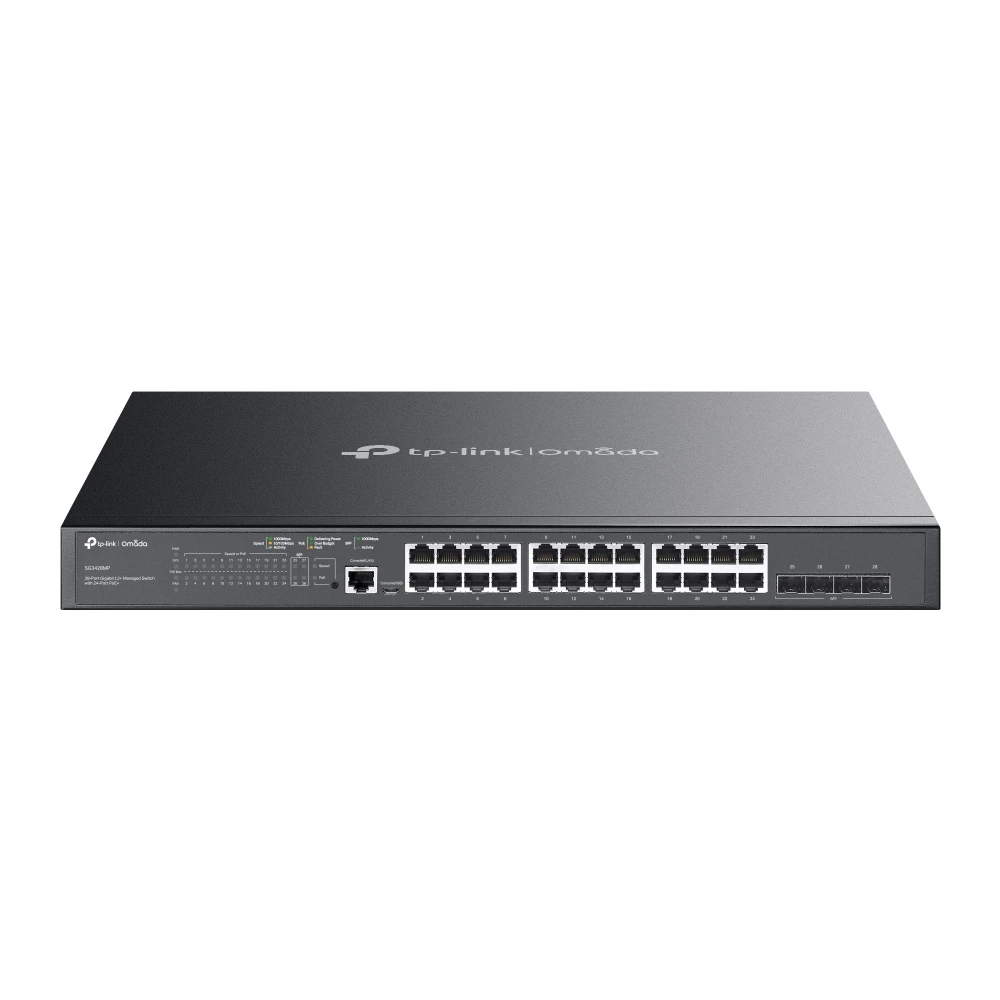

TP-Link SG3428MP Omada 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+

Advanced L2+ managed switch with 24 PoE+ ports, 250W budget, and enhanced management features for enterprise access layer deployments.

SKU:SG3428MP

95.00 KWD

TP-Link SG2008 Omada 8-Port Gigabit Smart Switch

Basic 8-port smart switch with Omada management, ideal for small office deployments without PoE requirements.

SKU:SG2008

35.90 KWD

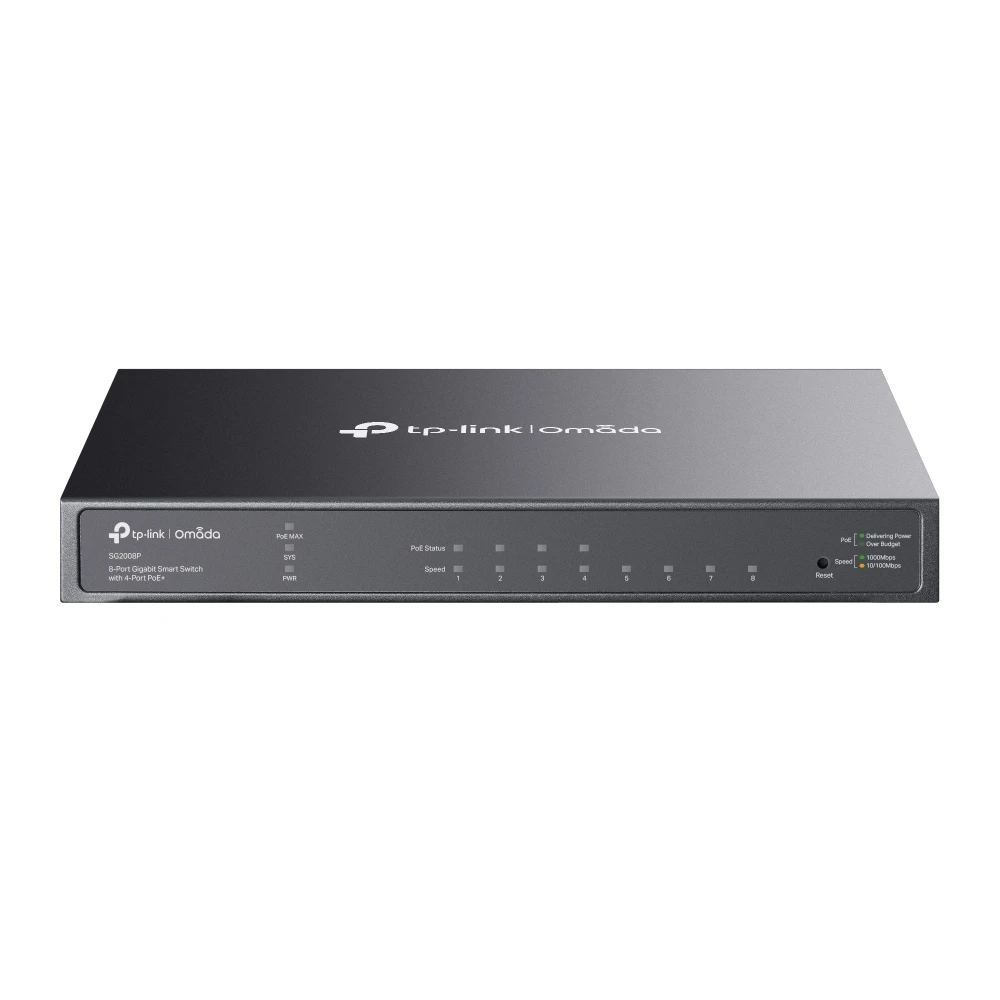

TP-Link SG2008P Omada 8-Port Gigabit Smart Switch with 4-Port PoE+
