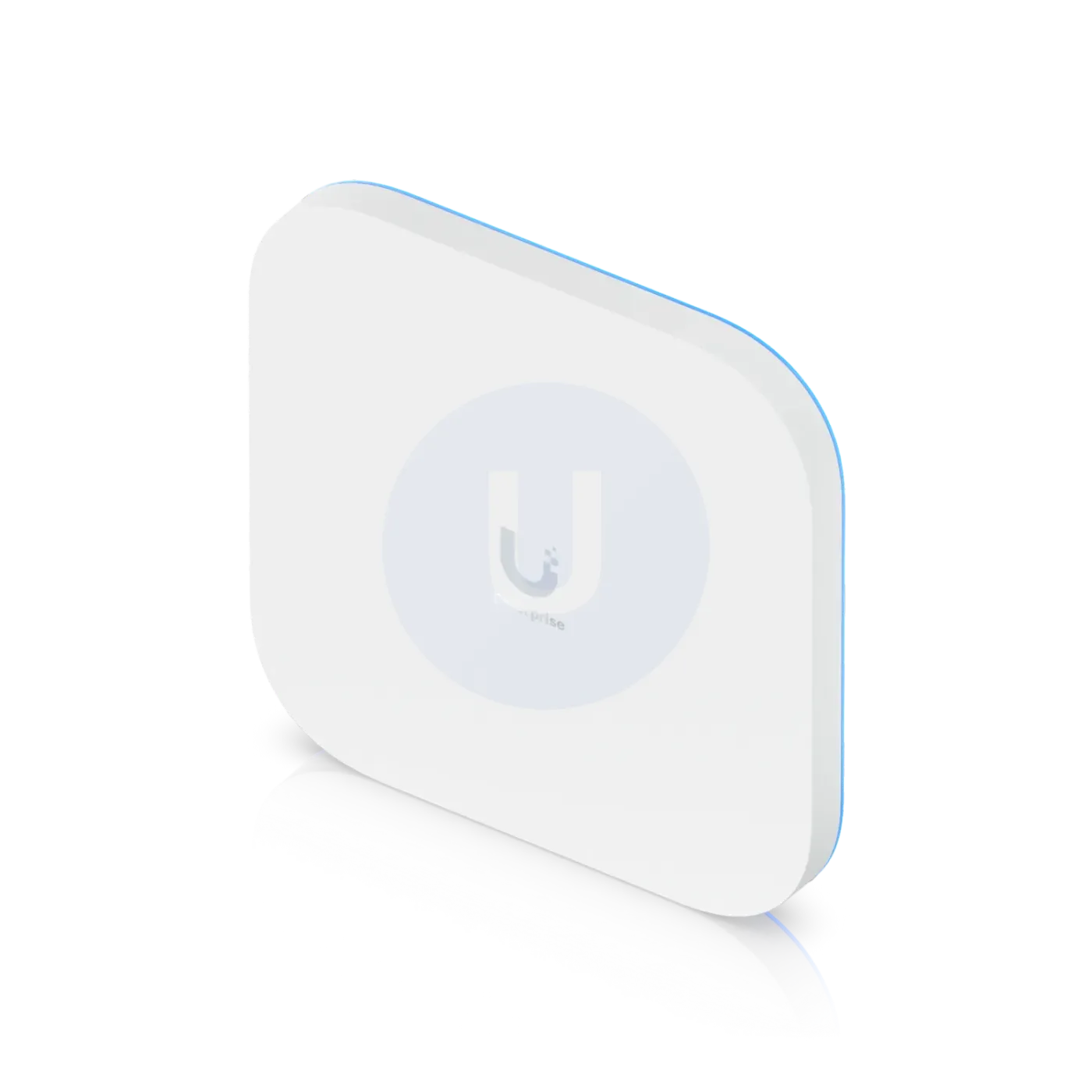

Access Point E7

231.000 KDRequest quote

1 / 8

Enterprise-grade indoor access point with 10-stream WiFi 7 performance, a 10 GbE uplink, and a redundant GbE port for high availability.

231.000 KD

Available on request for projects

Supplied and installed as part of your project. Send your requirement for a quotation.

Request a quotation Call

Need it installed? Get a site quote

Pay with

Installation, warranty & supportWi-Fi access point installation: 5–25 KWD per point · 1-year hardware warranty

Custom orders, pre-order products and project orders are planned with you as part of the order. Any visit or consultation is quoted with the project.

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

Manufacturer warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Who This Is Built For

Features	WiFi 7 with 6 GHz support10 spatial streamsReal-time spectral analysis for enhanced channel selectionDedicated spectral analyzer radioLong-range 6 GHz performance with AFC185 m² (2,000 ft²) coverage1,000+ connected devices(1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancyBackwards compatible mounting systemPowered using PoE++

Technical Specifications

Uplink: 10 GbE, 1 GbE
Weight: 1.8 kg (4 lb)
Mounting: Ceiling, Wall, VESA (Pro Mount Included)
Dimensions: 250 x 250 x 43.5 mm (9.8 x 9.8 x 1.7")
Management: Ethernet
Max. BSSIDs: 8 per Radio
Power Method: PoE++
Band Steering: Yes
Coverage Area: 185 m² (2,000 ft²)
MIMO · 5 GHz: 4 x 4 (DL/UL MU-MIMO)
MIMO · 6 GHz: 4 x 4 (DL/UL MU-MIMO)
Wi Fi Standard: WiFi 7
Zero-Wait DFS: Yes
Certifications: CE, FCC, IC, Anatel: 06372-24-08356
LEDs · System: R/G/B
Mount Material: Stainless steel (SUS304), galvanized steel (SGCC)
NDAA Compliant: Yes
Wi Fi Schedules: Yes
MIMO · 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Spatial Streams: 10
Wireless Meshing: Yes
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
Max. Client Count: 1000+
Enclosure Material: UV-stabilized polycarbonate, aluminum alloy
Operating Frequency: US/CA:, 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, U-NII-5 to U-NII-8: 5925 - 7125 MHz, Worldwide:, 2400 - 2483.5 MHz, 5150 - 5850 MHz, 5925 - 7125 MHz
Wi Fi Speed Limiting: Yes
802.11r Fast Roaming: Yes
Networking Interface: (1) 10 GbE RJ45 port (1) 1 GbE RJ45 port
Antenna Gain · 5 GHz: 6 dBi
Antenna Gain · 6 GHz: 6 dBi
Max. Power Consumption: 43W
Max. TX Power · 5 GHz: 30 dBm
Max. TX Power · 6 GHz: 24 dBm / 30 dBm
Antenna Gain · 2.4 GHz: 5 dBi
Client Device Isolation: Yes
Max. Data Rate · 5 GHz: 8.6 Gbps (BW240)
Max. Data Rate · 6 GHz: 11.5 Gbps (BW320)
Passpoint (Hotspot 2.0): Yes
Supported Voltage Range: 42.5–57V DC
Max. TX Power · 2.4 GHz: 23 dBm
RADIUS Over TLS (Rad Sec): Yes
Advanced Radio Management: Yes
Max. Data Rate · 2.4 GHz: 688 Mbps (BW40)
Ambient Operating Humidity: 5 to 95% noncondensing
Real-Time Spectral Analysis: Yes
Dynamic RADIUS-Assigned VLAN: Yes
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Private Pre-Shared Key (PPSK): Yes
Supported Data Rates · 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11v BSS Transition Management: Yes
Application Requirements · Mobile App: iOS™ version 10.24.1 and later, Android™ version 10.25.2 and later
802.11k Radio Resource Management (RRM): Yes
Application Requirements · Uni Fi Network: Version 9.2.87 and later
Supported Data Rates · 802.11ac (Wi Fi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
Supported Data Rates · 802.11ax (Wi Fi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Supported Data Rates · 802.11be (Wi Fi 7): 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
Captive Hotspot Portal · Voucher Authentication: Yes
Captive Hotspot Portal · Guest Network Isolation: Yes
Captive Hotspot Portal · Password Authentication: Yes
Captive Hotspot Portal · Custom Branding Landing Page: Yes
Captive Hotspot Portal · Payment-Based Authentication: Yes
Captive Hotspot Portal · External Portal Server Support: Yes
