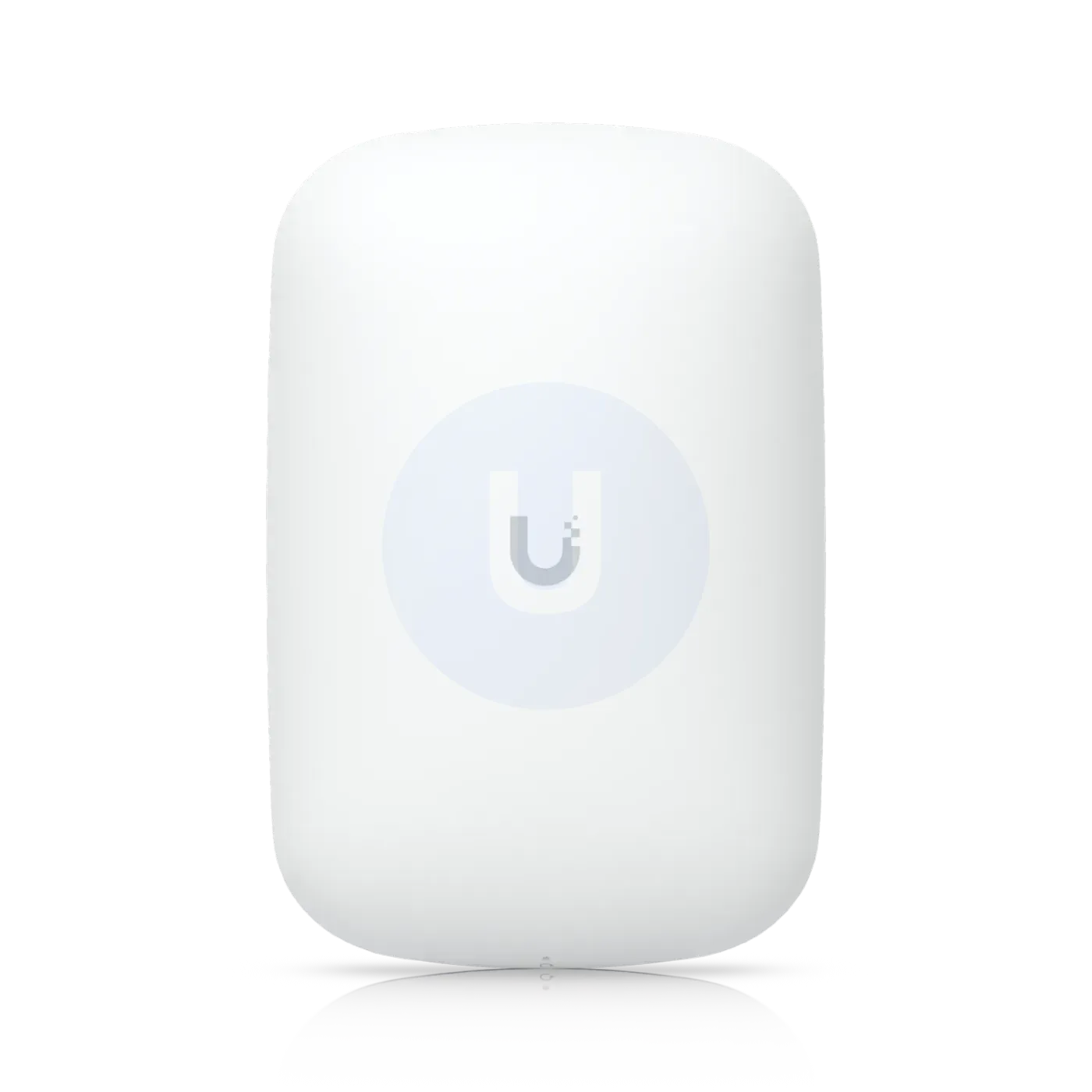

Access Point U6 Extender

69.500 KDRequest quote

1 / 8

Easy-to-deploy WiFi 6 coverage extender that fits a standard wall outlet.

69.500 KD

Available on request for projects

Supplied and installed as part of your project. Send your requirement for a quotation.

Request a quotation Call

Need it installed? Get a site quote

Pay with

Installation, warranty & supportWi-Fi access point installation: 5–25 KWD per point · 1-year hardware warranty

Custom orders, pre-order products and project orders are planned with you as part of the order. Any visit or consultation is quoted with the project.

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

Manufacturer warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Who This Is Built For

Features	WiFi 66 spatial streams115 m² (1,250 ft²) coverage250+ connected devicesPowered with standard AC wall outletWireless uplink to UniFi WiFi

Technical Specifications

Weight: 340 g (12 oz)
Mounting: Wall (Wall Power Socket Included)
Dimensions: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1")
Management: Bluetooth
Max. BSSIDs: 8 per Radio
Power Method: Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz
Band Steering: Yes
Coverage Area: 115 m² (1,250 ft²)
MIMO · 5 GHz: 4 x 4 (DL/UL MU-MIMO)
Wi Fi Standard: WiFi 6
Certifications: CE, FCC, IC
LEDs · System: White/Blue
NDAA Compliant: Yes
Wi Fi Schedules: Yes
MIMO · 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Spatial Streams: 6
Wireless Meshing: Yes
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz)
Max. Client Count: 250+
Enclosure Material: Polycarbonate
Operating Frequency: US/CA:, 2400 - 2472 MHz, U-NII-1: 5150 - 5250 MHz, U-NII-2A: 5250 - 5350 MHz, U-NII-2C: 5470 - 5725 MHz, U-NII-3: 5725 - 5850 MHz, Worldwide:, 2400 - 2483.5 MHz, 5150 - 5850 MHz
Wi Fi Speed Limiting: Yes
802.11r Fast Roaming: Yes
Antenna Gain · 5 GHz: 6 dBi
Max. Power Consumption: 11W
Max. TX Power · 5 GHz: 26 dBm
Antenna Gain · 2.4 GHz: 5 dBi
Client Device Isolation: Yes
Max. Data Rate · 5 GHz: 4.8 Gbps (BW160)
Passpoint (Hotspot 2.0): Yes
Supported Voltage Range: 100–240V AC
Max. TX Power · 2.4 GHz: 22 dBm
RADIUS Over TLS (Rad Sec): Yes
Advanced Radio Management: Yes
Max. Data Rate · 2.4 GHz: 573.5 Mbps (BW40)
Ambient Operating Humidity: 5 to 95% noncondensing
Dynamic RADIUS-Assigned VLAN: Yes
Ambient Operating Temperature: -10 to 50° C (14 to 122° F)
Private Pre-Shared Key (PPSK): Yes
Supported Data Rates · 802.11n: 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40)
802.11v BSS Transition Management: Yes
802.11k Radio Resource Management (RRM): Yes
Application Requirements · Uni Fi Network: Version 6.0.45 and later
Supported Data Rates · 802.11ac (Wi Fi 5): 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
Supported Data Rates · 802.11ax (Wi Fi 6): 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
Captive Hotspot Portal · Voucher Authentication: Yes
Captive Hotspot Portal · Guest Network Isolation: Yes
Captive Hotspot Portal · Password Authentication: Yes
Captive Hotspot Portal · Custom Branding Landing Page: Yes
Captive Hotspot Portal · Payment-Based Authentication: Yes
Captive Hotspot Portal · External Portal Server Support: Yes
