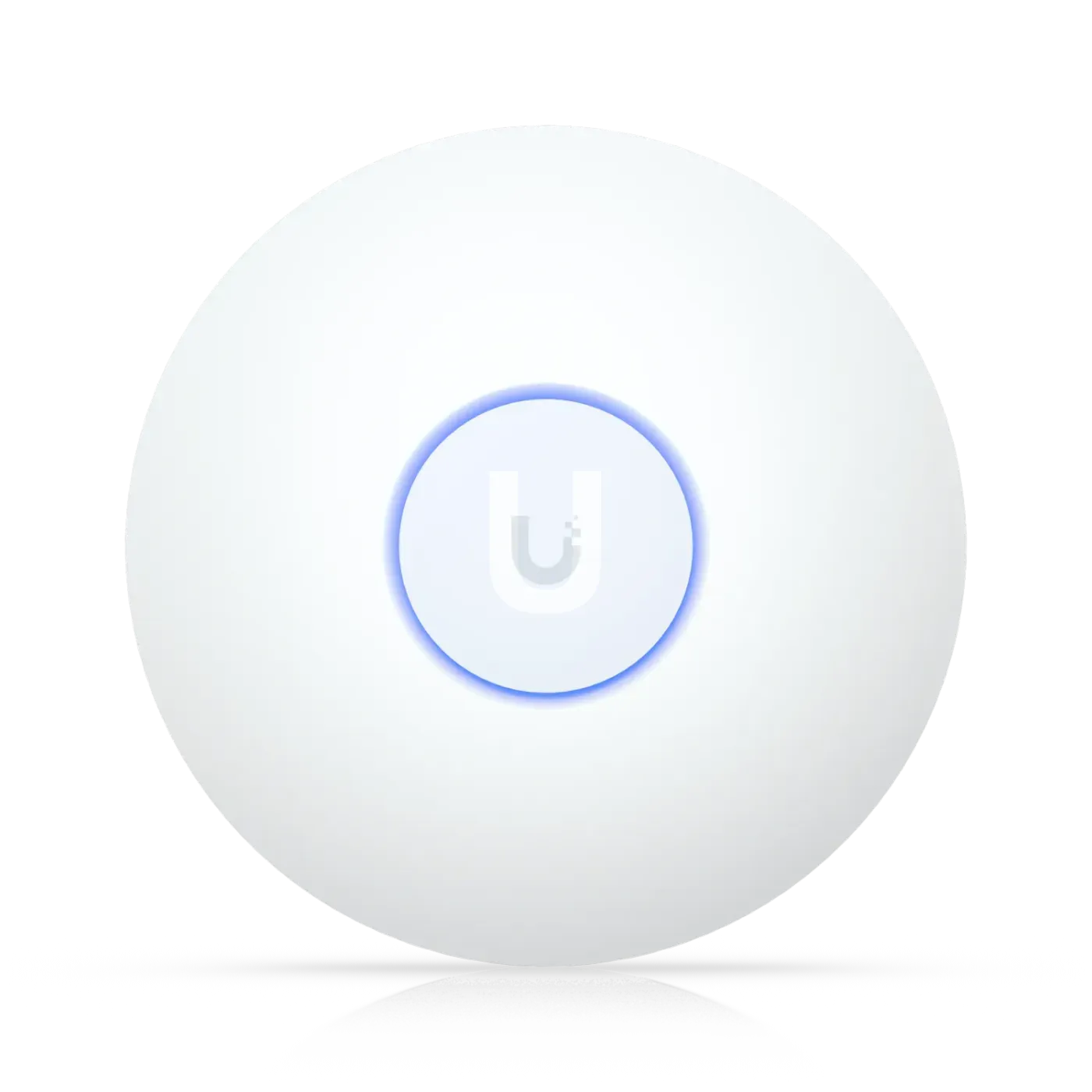

Access Point U7 Long-Range

73.500 KDRequest quote

1 / 7

Compact, ceiling-mount WiFi 7 AP with 5 spatial streams and extended signal range.

73.500 KD

Available on request for projects

Supplied and installed as part of your project. Send your requirement for a quotation.

Request a quotation Call

Need it installed? Get a site quote

Pay with

Installation, warranty & supportWi-Fi access point installation: 5–25 KWD per point · 1-year hardware warranty

Custom orders, pre-order products and project orders are planned with you as part of the order. Any visit or consultation is quoted with the project.

Licensed InstallerKuwait CoveragePost-Install Support

Expert Installation

Certified engineers on-site

Warranty Covered

Manufacturer warranty

Fast Deployment

Quick turnaround

Ongoing Support

AMC & technical support available

Technical Specifications

Uplink: 2.5 GbE
Weight: 448 g (15.8 oz)
Mounting: Ceiling, Wall (Plastic Mounting Plate included)
Dimensions: ⌀175.7 x 43 mm (⌀6.9 x 1.7")
Management: Ethernet
Power Method: PoE
Band Steering: Yes
Coverage Area: 160 m² (1,750 ft²)
MIMO · 5 GHz: 3 x 3 (DL/UL MU-MIMO)
Wi Fi Standard: WiFi 7
Certifications: CE, FCC, IC, SRRC, Anatel: 04071-25-08356
LEDs · System: White/Blue
Mount Material: Polycarbonate, galvanized steel (SGCC)
NDAA Compliant: Yes
Wi Fi Schedules: Yes
MIMO · 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Spatial Streams: 5
Wireless Meshing: Yes
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160 (MHz)
Max. Client Count: 300+
Enclosure Material: Polycarbonate, aluminum alloy
Wi Fi Speed Limiting: Yes
802.11r Fast Roaming: Yes
Includes Po E Adapter: No
Networking Interface: (1) 2.5 GbE RJ45 port
Antenna Gain · 5 GHz: 6 dBi
Max. Power Consumption: 14W
Max. TX Power · 5 GHz: 27 dBm
Antenna Gain · 2.4 GHz: 4 dBi
Client Device Isolation: Yes
Max. Data Rate · 5 GHz: 4.3 Gbps (BW160)
Passpoint (Hotspot 2.0): Yes
Supported Voltage Range: 42.5–57V DC
Max. TX Power · 2.4 GHz: 26 dBm
RADIUS Over TLS (Rad Sec): Yes
Advanced Radio Management: Yes
Max. Data Rate · 2.4 GHz: 688 Mbps (BW40)
Ambient Operating Humidity: 5 to 95% noncondensing
Dynamic RADIUS-Assigned VLAN: Yes
Ambient Operating Temperature: -30 to 50° C (-22 to 122° F)
Private Pre-Shared Key (PPSK): Yes
Supported Data Rates · 802.11n: 6.5 Mbps to 450 Mbps (MCS0 - MCS23 , HT 20/40)
802.11v BSS Transition Management: Yes
Application Requirements · Mobile App: iOS™ version 10.20.2 and later, Android™ version 10.21.7 and later
802.11k Radio Resource Management (RRM): Yes
Application Requirements · Uni Fi Network: Version 9.1.120 and later
Supported Data Rates · 802.11ac (Wi Fi 5): 6.5 Mbps to 2.6 Gbps (MCS0 - MCS9 NSS1/2/3, VHT 20/40/80/160)
Supported Data Rates · 802.11ax (Wi Fi 6): 7.3 Mbps to 3.6 Gbps (MCS0 - MCS11 NSS1/2/3, HE 20/40/80/160)
Supported Data Rates · 802.11be (Wi Fi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3, EHT 20/40/80/160)
Captive Hotspot Portal · Voucher Authentication: Yes
Captive Hotspot Portal · Guest Network Isolation: Yes
Captive Hotspot Portal · Password Authentication: Yes
Captive Hotspot Portal · Custom Branding Landing Page: Yes
Captive Hotspot Portal · Payment-Based Authentication: Yes
Captive Hotspot Portal · External Portal Server Support: Yes
