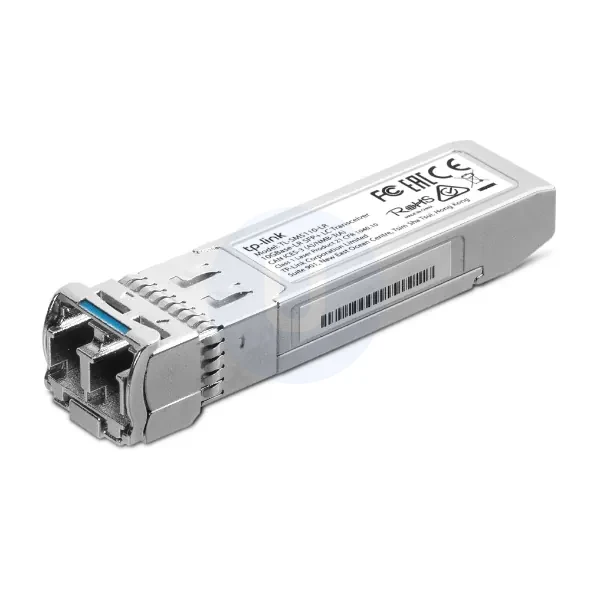

TP-Link TL-SM5110-LR Single Mode 10GBase-LR SFP+ LC Transceiver

TP-Link TL-SM5110-LR Single Mode 10GBase-LR SFP+ LC Transceiver
1 / 7

The TP-Link TL-SM5110-LR is a 10GBase-LR single-mode SFP+ transceiver: 1310 nm, LC duplex, up to 10 km, with digital diagnostics, for 10G links between buildings.

TP-Link TL-SM5110-LR price in Kuwait

Ships to order
19.000 KD

Free quotation, no obligation

Available with installation onlyFree remote support included

Brand
TP-Link
Model
TL-SM5110-LR
Warranty
1-year warranty

About the TP-Link TL-SM5110-LR

The TL-SM5110-LR carries 10 Gbps over single-mode fibre for up to 10 km. That is the module for links that leave the building: between blocks on a campus, from a gatehouse or warehouse to the main office, across a compound or a factory site, or on a fibre run that must go further than multi-mode can reach.

It transmits at 1310 nm on 9/125 µm single-mode fibre with a duplex LC connector, conforms to the SFP+ multi-source agreement and fits standard 10G SFP+ slots, including TP-Link's JetStream and Omada switches. Digital diagnostic monitoring reports optical power, temperature and voltage, so a weakening long link can be spotted from the switch.

It is hot-pluggable, powered by the slot at 3.3 V, measures 56.7 x 13.9 x 10.35 mm and is rated for 0 to 70 °C. Use LR modules at both ends; for short runs inside a building over multi-mode fibre, the TL-SM5110-SR is the lower-cost option.

TP-Link TL-SM5110-LR specifications

Type
10GBase-LR SFP+ transceiver
Connector
LC duplex
Data Rate
10 Gbps
Fiber Type
Single-mode, 9/125 µm
Wavelength
1310 nm
Diagnostics
DDM
Hot Swappable
Yes
Max. Cable Length
10 km
Operating Temperature
0 to 70 °C
Model
TP-Link TL-SM5110-LR
Compliance
SFP+ MSA
Dimensions
56.7 x 13.9 x 10.35 mm

TP-Link TL-SM5110-LR features

  • 10G single-mode SFP+
  • Up to 10 km
  • LC duplex connector
  • DDM diagnostics
  • Hot-pluggable

Best suited for

10G fibre links between buildings on a campus, compound or industrial site.

Compare the TP-Link TL-SM5110-LR with similar models

Available with installation only · Free remote support included

Specification
TP-Link TL-SM5110-LRThis model19.000 KWD
Type10GBase-LR SFP+ transceiver10GBase-SR SFP+ transceiver1000Base-SX SFP module1000Base-LX SFP module
ConnectorLC duplexLC/UPC duplexLC duplexLC duplex
Data Rate10 Gbps10 Gbps1.25 Gbps1.25 Gbps
Fiber TypeSingle-mode, 9/125 µmMulti-mode, 50/125 µm or 62.5/125 µmMulti-mode, 50/125 µm or 62.5/125 µmSingle-mode, 9/125 µm
Wavelength1310 nm850 nm850 nm1310 nm
Max. Cable Length10 km300 m (OM3)550 m (50/125 µm), 275 m (62.5/125 µm)20 km

Same on all: Diagnostics · Hot Swappable

TP-Link TL-SM5110-LR questions

What fibre does the TL-SM5110-LR need?

Single-mode 9/125 µm fibre with LC connectors, up to 10 km.

Can the TL-SM5110-LR connect to an SR module?

No. Both ends must be LR modules on single-mode fibre.
