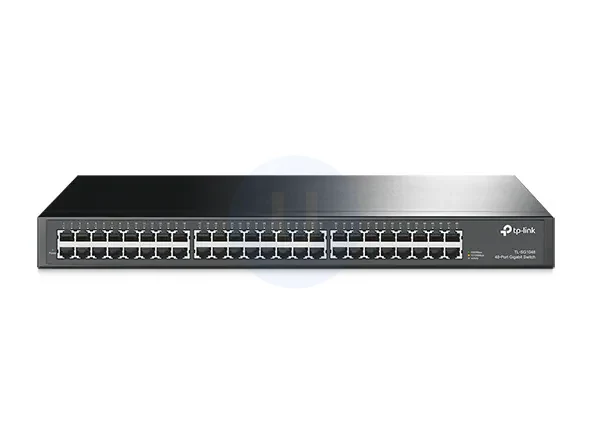

TP-Link TL-SG1048 48-Port Gigabit Rackmount Switch

The TP-Link TL-SG1048 is a 48-port unmanaged gigabit rackmount switch: 96 Gbps non-blocking, 16K MAC table, 12 Mb buffer and a built-in power supply.
TP-Link TL-SG1048 price in Kuwait
AvailableFree quotation, no obligation
Available with installation onlyFree remote support included
- Brand
- TP-Link
- Model
- TL-SG1048
- Warranty
- 1-year warranty
About the TP-Link TL-SG1048
The TL-SG1048 puts 48 gigabit ports in one 1U, 19-inch steel switch, enough to light two 24-port patch panels: a whole office floor, a school wing or a warehouse with many wired points. It is unmanaged, so it works from the moment it is powered, with no VLANs or passwords to maintain.
It is built to carry a full load. The 96 Gbps fabric is non-blocking, so all 48 ports can run at gigabit speed together, the forwarding rate is 71.4 million packets a second, the MAC table holds 16,000 addresses, and a 12 Mb packet buffer, larger than on the smaller models, absorbs bursts such as many PCs pulling updates at once. Jumbo frames up to 12 KB are supported.
The power supply is built in and the switch draws at most 28.2 W. It measures 440 x 220 x 44 mm and is rated for 0 to 40 °C. If the floor also needs VLANs or monitoring, a managed JetStream or Omada switch is the better fit.
TP-Link TL-SG1048 specifications
- Ports
- 48 x 10/100/1000 Mbps RJ45
- Forwarding Rate
- 71.4 Mpps
- Switching Capacity
- 96 Gbps
- Power
- Internal 100-240 V AC, 28.21 W maximum
- Mounting
- 19-inch rack
- Jumbo Frames
- 12 KB
- Packet Buffer
- 12 Mb
- MAC Address Table
- 16K
- Operating Temperature
- 0 to 40 °C
- Model
- TP-Link TL-SG1048
- Dimensions
- 440 x 220 x 44 mm (1U)
TP-Link TL-SG1048 features
- 48 gigabit ports
- 96 Gbps non-blocking
- 16K MAC, 12 Mb buffer
- 19-inch 1U rack
- Built-in power supply
Best suited for
Office floors, school wings and warehouses that need 48 unmanaged gigabit ports in one rack switch.
Compare the TP-Link TL-SG1048 with similar models
Available with installation only · Free remote support included
| Specification | TP-Link TL-SG1048This model86.000 KWD | TP-Link TL-SX105110.000 KWD | TP-Link TL-SX1008150.000 KWD | TP-Link TL-SG1024D30.000 KWD |
|---|---|---|---|---|
| Ports | 48 x 10/100/1000 Mbps RJ45 | 5 x 100M / 1G / 2.5G / 5G / 10G RJ45 | 8 x 100M / 1G / 2.5G / 5G / 10G RJ45 | 24 x 10/100/1000 Mbps RJ45 |
| Forwarding Rate | 71.4 Mpps | 74.4 Mpps | 119 Mpps | 35.7 Mpps |
| Switching Capacity | 96 Gbps | 100 Gbps | 160 Gbps | 48 Gbps |
| Power | Internal 100-240 V AC, 28.21 W maximum | External 12 V 2 A adapter, 21.4 W maximum | Internal 100-240 V AC, 31.2 W maximum | Internal 100-240 V AC, 13.62 W maximum |
| Mounting | 19-inch rack | Desktop or wall | Desktop or 19-inch rack | Desktop or 19-inch rack (kit included) |
| Jumbo Frames | 12 KB | 10 KB | 10 KB | 10 KB |
TP-Link TL-SG1048 questions
Is the TL-SG1048 non-blocking?
Yes. Its 96 Gbps capacity lets all 48 gigabit ports run at full speed in both directions.
Does the TL-SG1048 support VLANs?
No. It is unmanaged. Choose a managed JetStream or Omada switch for VLANs.
